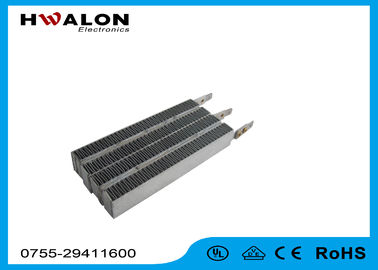

250 Degree PTC Thermistors PTC Fan Heater Electric Heating Element Heater Assembly

250 Degree PTC Thermistors PTC Fan Heater Electric Heating Element Heater Assembly

  • 250 Degree PTC Thermistors PTC Fan Heater Electric Heating Element Heater Assembly
250 Degree PTC Thermistors PTC Fan Heater Electric Heating Element Heater Assembly
Product Details:
Place of Origin: CHINA
Brand Name: Hwalon
Certification: CE UL
Model Number: PR4
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: by negotiation
Packaging Details: 1000pcs/carton
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 100000/month
Contact Now
Detailed Product Description
Package Type: Throught Hole Material: Ceramic, Aluminum
Warranty: 1 Year Color: Silver Gray
Sheath Material:: Aluminium Resistance:: 1Ω-5000Ω
Size: 48*23*15 Application: Home Applicance
Shape: Plate Power: 160w
High Light:

PTC electric heater

,

electric PTC heater

250degree and 160w PTC Thermistors PTC Fan Heater For Heater Assembly



Detailed parameters



Length(mm) Width(mm) Thickness(mm) Insulation voltage(V) Switch temperature(°C) Fan speed(m/s) Power(w)
      48 23 15 3750 250 5 160



Features



1. Not sensitive to voltage fluctuating
2. PTC heater safety, environmental protection
3.

Can use in wide range of ambient temperature

4. The higher the temperature, the more power efficient
5.

It is safe when liquid is burnt out in liquid heating device

6.

Heating power(W) and self-regulating function is in correlation to the heat dissipation rate.



Notice

can be in accordance with customer requirements of the power, air temperature, size manufacturing; the greater the area of the hair, the greater the thickness, the greater the wind speed, the lower the inlet temperature, the greater the power; table nominal power 5m / s wind speed, 25 ℃ into the air temperature test conditions of power, no wind when the power is only about 1/10 nominal; in order to increase the power density, can also be made of encrypted structure.


Applications



applications

hair dryer,cloth dryer,car fan, and other types of electrical appliances,air curtains,air conditioners,electrical heaters, cars

Packing:

Each product will be packed in carton.

The outer cartons of the goods, which white plastic strap is pasted, to keep from busting out once the goods is facing creaking and striking.

In general, the goods can be sent to you by Express,by sea,any way you like.



How to Order



1. Application of the PTC heater : _______

2. Working environment of the PTC heater :______

3. The range of operating temperature:___℃to ____℃

*4. Dimension of the PTC heater: _______

*5. R(25) Value :_____

*6. Surface Temperature:_____

*7. Rated Voltage:_____

*8. Need insulated or not :_____

* Fill “*” items necessarily



Shipping


1. FedEx/DHL/UPS/TNT for samples, Door-to-Door
2. By Air or by Sea for batch goods, for Airport/ Port receiving
3. Customers specifying freight forwarders or negotiable shipping methods
4. Delivery Time: 3-5 days for samples; 7-10 days for batch goods
