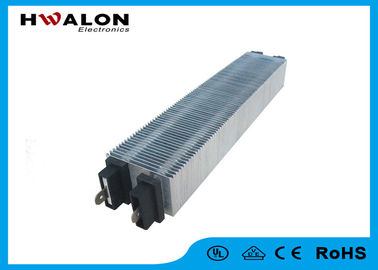

850W Effective PTC Heating Element PTC Heater for Automobile Air Conditioner
  • name

850W Effective PTC Heating Element PTC Heater for Automobile Air Conditioner

MOQ: 1000pcs
Price: by negotiation
Standard Packaging: 1000pcs/carton
Delivery Period: 7-10 work days
Payment Method: T/T, Western Union
Supply Capacity: 100000/month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Hwalon
Certification
CE UL
Model Number
PR4
Package Type:
Throught Hole
Size:
96*44*15
Power:
850w
Function:
Heating
Material:
Ceramic, Aluminum
Application:
Home Applicance
Warranty:
1 Year
Color:
Silver Gray
Sheath Material::
Aluminium
Resistance::
1Ω-5000Ω
Highlight:

PTC electric heater

,

electric PTC heater

Product Description

850 W Effective PTC Heating Element Ptc Heater for Auto Car Air Conditioner



Specifications



Length(mm) Width(mm) Thickness(mm) Ptc pills quantity Switch temperature(°C) Fan speed(m/s) Power(w)
      96 44 15 8 250 5 850



Features



1.

Effective constant temperature

2.

Automatic temperature control
3.

Not sensitive to voltage fluctuating
4.

Can use in wide range of ambient temperature
5. The higher the temperature, the more power efficient
6.

Does not crack, burst or burn when heated under no airflow;
7.

Even with the regard to voltage changes, the constant temperature mechanism will be effective



Notice

1. can be in accordance with customer requirements of the power, air temperature, size manufacturing; the greater the area of the hair, the greater the thickness, the greater the wind speed, the lower the inlet temperature, the greater the power; table nominal power 5m / s wind speed, 25 ℃ into the air temperature test conditions of power, no wind when the power is only about 1/10 nominal; in order to increase the power density, can also be made of encrypted structure.

2. the use of voltage 6 ~ 600V, AC, DC can be customized.

3. other switch temperature can also be customized, power and temperature difference (ΔT = switch temperature - ambient temperature) is proportional to.



Applications



applications

Ceramic heater fan, hair dryer, dish dryer clothes dryer, hand dryer, air conditioner system for electric car, discharging loader for battery.

Packing:

Each product will be packed in carton.

The outer cartons of the goods, which white plastic strap is pasted, to keep from busting out once the goods is facing creaking and striking.

In general, the goods can be sent to you by Express,by sea,any way you like.



How to Order



1. Application of the PTC heater : _______

2. Working environment of the PTC heater :______

3. The range of operating temperature:___℃to ____℃

*4. Dimension of the PTC heater: _______

*5. R(25) Value :_____

*6. Surface Temperature:_____

*7. Rated Voltage:_____

*8. Need insulated or not :_____

* Fill “*” items necessarily



Our Services



1. We offer excellent quatity, the best service, favourable price and prompt delivery for our every customer.

2. We have after-sales services to help our customers during using the products.

3. We can customize the product according to relative requirements of our customers.

4. Your related to inquiry about our product will be replied in 12 hours.

5. Shipping by us( DHL, NTN, FedEx, EMS, UPS and by Sea), or by your agent.

6. Payment by T/T, Western Union.

7. Delivery within 3-5 days to sample order, 7-10days to bulk order.
