custom-made Household PTC Inrush Current Limiter Thermistor With Overcurrent Overload Protection

custom-made Household PTC Inrush Current Limiter Thermistor With Overcurrent Overload Protection
custom-made Household PTC Inrush Current Limiter Thermistor With Overcurrent Overload Protection custom-made Household PTC Inrush Current Limiter Thermistor With Overcurrent Overload Protection custom-made Household PTC Inrush Current Limiter Thermistor With Overcurrent Overload Protection custom-made Household PTC Inrush Current Limiter Thermistor With Overcurrent Overload Protection custom-made Household PTC Inrush Current Limiter Thermistor With Overcurrent Overload Protection

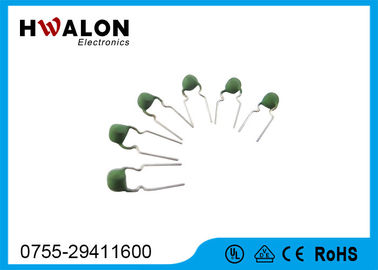

Large Image :  custom-made Household PTC Inrush Current Limiter Thermistor With Overcurrent Overload Protection

Product Details:
Place of Origin: China
Brand Name: HWA
Certification: RoHS, CQC
Model Number: PR2
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negoiation
Packaging Details: bulk package
Delivery Time: 7-30DAYS
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs/month
Detailed Product Description
Place Of Origin: Guangdong Type: Thermal Resistor
Technology: Ceramic Composition Package Type: Surface Mount
Rated Voltage: 12V~220V Max. Operating Voltage: 20V~265V
Operating Temp. Range: -25℃~125℃ Restore Time: 60s



custom-made Household PTC Inrush Current Limiter Thermistor With Overcurrent Overload Protection





high quality PTC thermistor for overcurrent and overload protection in charges, household appliances and LED control panel

Description:

1. Surges due to lighting strikes on or near to the line plant.

2. Short-term induction of alternating voltage from adjacent power lines or railway systems, usually when these lines or systems occur fault.

3. Direct contact between telephone lines and power lines.



Applications:

Switching power supply

air-conditioner and other household appliances

microwave oven

adapter

LED control panel

industry-controlling exchangers

program exchanger

security unit

telephone

overcurrent protection of terminals





Competitive Advantage:



1. PTC thermistor for overcurrent and overload protection is a million-time device of automatic protection, recoverability, using repeatedly, and no trigger, noice or sparks.

2. When PTC is in the normal state, the resistance is too low to affect the regular work of the protected circuit such as the voltage transformer's primary and secondary loops.

3. When the circuit is in disorder, the PTC will generate heat suddenly, and the resistance value will go up to the high state, which make the circuit in the state of relatively "reaking up" to protect the circuit.



Dimensions:



custom-made Household PTC Inrush Current Limiter Thermistor With Overcurrent Overload Protection 0



Part No. for your reference:



No. Part no. Vmax (v) non-trip current (mA) @25 ℃ non-trip current (mA) @60 ℃ trip current (mA) @25℃ resistance( Ω ) ±25% Imax (A) switch temp. D(max) T(max) d
1 H2PR151RH03LB265 265 22 15 45 150 0.2 80 ℃ ±7℃ 4.5 5.0 0.5
2 H2PR101RH03LB250 250 25 18 55 100 0.2 80 ℃±7 ℃ 4.5 5.0 0.5
3 H2PR70RH05LB250 250 50 30 100 70 0.3 80 ℃±7 ℃ 6.5 5.0 0.5
4 H2PR121RH05LB265 265 30 20 60 120 0.3 80 ℃±7 ℃ 6.5 5.0 0.5
5 H2PR101RH07LB265 265 50 30 100 100 0.6 80 ℃±7 ℃ 8.0 5.0 0.6
6 H2PR12RH08LB250 265 120 70 220 12 0.8 80 ℃±7 ℃ 9.0 5.0 0.6
7 H2PR25RH08LB265 265 85 50 170 25 0.8 80 ℃±7 ℃ 9.0 5.0 0.6
8 H2PR35RH08LB265 265 80 50 150 35 0.8 80 ℃±7 ℃ 9.0 5.0 0.6
9 H2PR50Rh08LB265 265 60 40 120 50 1.0 80 ℃±7 ℃ 9.0 5.0 0.6
10 H2PR70RH03HE250 250 45 35 90 70 0.1 100 ℃±7 ℃ 4.5 5.0 0.5
11 H2PR101RH03HE250 250 40 30 80 100 0.2 100 ℃±7 ℃ 4.5 5.0 0.5
... ...





high quality PTC thermistor for overcurrent and overload protection in charges, household appliances and LED control panel





Product pictures



custom-made Household PTC Inrush Current Limiter Thermistor With Overcurrent Overload Protection 1

custom-made Household PTC Inrush Current Limiter Thermistor With Overcurrent Overload Protection 2

custom-made Household PTC Inrush Current Limiter Thermistor With Overcurrent Overload Protection 3







Factory pictures:

custom-made Household PTC Inrush Current Limiter Thermistor With Overcurrent Overload Protection 4

custom-made Household PTC Inrush Current Limiter Thermistor With Overcurrent Overload Protection 5

custom-made Household PTC Inrush Current Limiter Thermistor With Overcurrent Overload Protection 6

custom-made Household PTC Inrush Current Limiter Thermistor With Overcurrent Overload Protection 7
