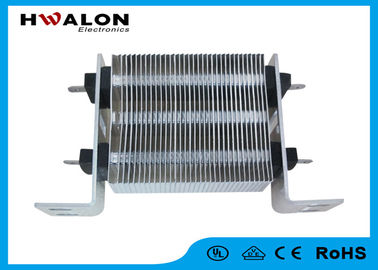

Length 16- 36mm PTC Ceramic Air Heater Environmental Protection CE Certification

Length 16- 36mm PTC Ceramic Air Heater Environmental Protection CE Certification

  • Length 16- 36mm PTC Ceramic Air Heater Environmental Protection CE Certification
Length 16- 36mm PTC Ceramic Air Heater Environmental Protection CE Certification
Product Details:
Place of Origin: CHINA
Brand Name: Hwalon
Certification: CE UL
Model Number: PR4
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: by negotiation
Packaging Details: 1000pcs/carton
Delivery Time: 7-10 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000/month
Contact Now
Detailed Product Description
Package Type: Throught Hole Size: (16 ~ 36) × 6-15 × 1.4-2.5mm
Power: 0.75 ~ 6KW Function: Heating
Material: Ceramic, Aluminum Voltage: 50v -270v
Application: Home Applicance
High Light:

PTC electric heater

,

electric PTC heater

Length 16- 36mm PTC Ceramic Air Heater Environmental Protection CE Certification



Features



1 Restore automatically after invalidation
2. Not sensitive to voltage fluctuating
3. Wide operating voltage
4. PTC heater safety, environmental protection
5. It doesn't turn to red or get fire when it is working.
6. Can use in wide range of ambient temperature
7. PTC hearter does not require temperature controlling system



Specifications



no. part No. resistance surf. temp. max voltage length width thickness
1 H4PR142RA19K230 800-2000 230 270 19 12 2.2
2 H4PR102RA20K110 500-1500 110 270 23.5 10 2.2
3 H4PR271RA16K090 150-400 90 140 16 11 2.5
4 H4PR551KRA16K085 300-800 85 140 16 11 2.5
5 H4PR140RA24K280 8-20 280 50 24 15 1.4
6 H4PR551RA24K280 300-800 280 140 24 15 2.5
7 H4PR202RA24K280 800-3500 280 270 24 15 2.5
8 H4PR202RA24K290 500-3000 290 270 36 6 2.5



 Notice


1. The power could be adjusted by air blowing speed; or it could be adjusted by voltage; or changing the number of heaters.

2. The surface temperature on dispersion plate is closed to the curie temperature, without air blowing; but the surface temperature on dispersion plate will be lower than the curie temperature very much, with air blowing;

3. This type of PTC air heater need a fan to blow, usually the faster is the air blowing speed, the larger is the power;

4. When PTC is used in very low ambient temperature, it have to be special designed;



Applications



applications

air conditioning, air curtain, ptc heaters, dryers, hand dryer, drying room equipment, large industrial air duct heating, electric locomotives warm, heating control cabinet, moisture, and other fields.



Company information



Hwalon electronic Limited, as a leading manufactory of heating elements in China, is engaged in production, marketing and sales of heating elements.



With international advanced facilities and more than 15 years rich manufacturing experience, due to our good quality, we have won worldwide popularity and credibility.



We are looking forward to building business relationships with you.



How to Order



1. Application of the PTC heater : _______

2. Working environment of the PTC heater :______

3. The range of operating temperature:___℃to ____℃

*4. Dimension of the PTC heater: _______

*5. R(25) Value :_____

*6. Surface Temperature:_____

*7. Rated Voltage:_____

*8. Need insulated or not :_____

* Fill “*” items necessarily



Our Services



1. We offer excellent quatity, the best service, favourable price and prompt delivery for our every customer.

2. We have after-sales services to help our customers during using the products.

3. We can customize the product according to relative requirements of our customers.

4. Your related to inquiry about our product will be replied in 12 hours.

5. Shipping by us( DHL, NTN, FedEx, EMS, UPS and by Sea), or by your agent.

6. Payment by T/T, Western Union.

7. Delivery within 3-5 days to sample order, 7-10days to bulk order.
