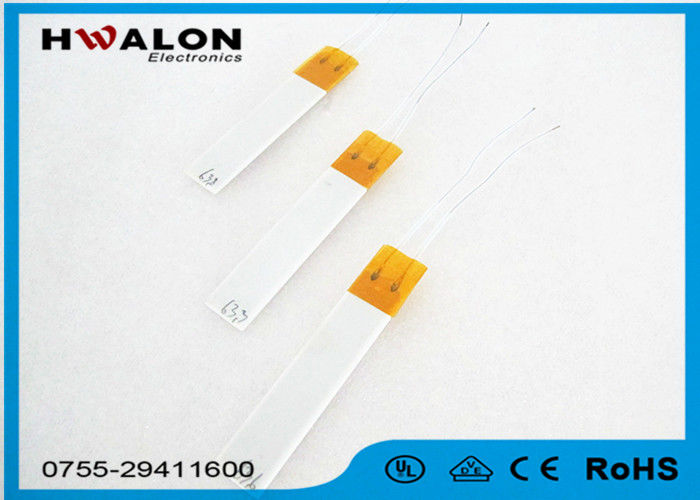

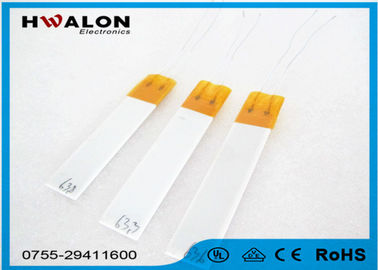

Pretty MCH Ceramic PTC Heating Element 80 - 220 Degree Surface Temperature

Pretty MCH Ceramic PTC Heating Element 80 - 220 Degree Surface Temperature

  • Pretty MCH Ceramic PTC Heating Element 80 - 220 Degree Surface Temperature
  • Pretty MCH Ceramic PTC Heating Element 80 - 220 Degree Surface Temperature
Pretty MCH Ceramic PTC Heating Element 80 - 220 Degree Surface Temperature
Product Details:
Place of Origin: China
Brand Name: Hwalon
Certification: RoHS, UL, CE, VDE
Model Number: PTC-PR4-MCH
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Packed in OPP Bag firstly,and then reinforced with Cartons for outer packing
Delivery Time: 15~20 working days after received your payment
Payment Terms: By negotiation
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Application: Hair Dryer,hair Curler,hair Straightener, Hair Apparatus Operating Temp. Range: -25~+125°C,0~+60°C
Surge Voltage Withstanding: 400V~900V Rms Max Operating Voltage: 15V~270V Rms
Surface Temp.: 80-220 Degree Size: 70*10mm
High Light:

Metal Ceramic Heater

,

MCH Heater



Pretty MCH Ceramic PTC Heating Element 80 - 220 Degree Surface Temperature​





Competitive Advantage:



1. RoHS compliant
2. High heat efficiency
3. Good electric performance
4. Secure invalidation mode
5. Simple construction
6. Quick in temperature rise,reach to Rating 100℃~230℃ in 10sec.,reach to 500℃~700℃ in 30sec.
7. High thermal efficiency,energy conservation,non-pollution,ROHS compliance
8. Even heating,No open flame,Safety in use
9. Heating element in the local vacuum state,Heater, acid and alkali resistant and harmful gas
10. Long service life,The power attenuation is small





Feature:

1. RoHS compliant

2. High heat efficiency

3. Good electric performance

4. Secure invalidation mode





Company Introduction:

  • 15 years experience on PTC/NTC thermistor field.
  • Competitive price
  • On time handle over
  • Competitive price
  • Inquiry answered in 24hrs
  • Good team waiting here to serve for you
  • RoHS &UL compatible
  • OEM & ODM business accepted
  • Main target market:Europe, North America, Asia.





Description:

  • Main raw material
  • Basal plate: content is Not less than 95% white Al2O3 ceramic
  • Lead: 0.5mm nickel wire or nickel-copper wire
  • Sleeve: Teflon
  • Heating material: tungsten
  • Product performance





1, Electrical performance



Insulation resistance: R≥5×108Ω(500VDC)

Withstand voltage strength: 1500VAC   1min.;1800VAC   1min.;

         3750VAC   1min.;4000VAC  0.1min.;

The highest voltage: 230VAC/120VAC



2, physical performance



Volume density≥ 3.6g/cm3

Flexure strength≥ 270MPa

Compression strength≥ 2700MPa

Lead strain: Along the horizontal direction lead no less than

5kgf,lead and basal plate in 90℃ direction,no less than 3.5kgf



3, Temperature performance



Rating working temp.: 100℃~230℃

Max. Temp.: 500℃~700℃

Heating rate: reach to Rating working temp.in 30sec.,reach to max. Temp.In 90sec.



Applications:



PTC heater(MCH)

Hair dryer,hair curler,hair straightener, hair apparatus





Specifications:



1, 10×10×1.3 mm

Specification

Model NO.

D

E

H

L

Φb

10×10×1.3(2.0)

24/12VAC

10

10

1.3

75

0.5

10×10×1.3(2.0)

24/12VAC

13Ω

10

10

1.3

75

0.5



 2, 20×10×1.3 mm

Specification

Model NO.

D

E

H

L

Φb

20×10×1.3(2.0)

24/12VAC

10Ω

20

10

1.3

75

0.5

20×10×1.3(2.0)

24/12VAC

15Ω

20

10

1.3

75

0.5

20×10×1.3(2.0)

24/12VAC

20Ω

20

10

1.3

75

0.5



 3, 30×25×1.3 mm

Specification

Model NO.

D

E

H

L

Φb

30×25×1.3(2.0)

24VAC

20Ω

30

25

1.3

75

0.5

30×25×1.3(2.0)

24VAC

25Ω

30

25

1.3

75

0.5

30×25×1.3(2.0)

24VAC

30Ω

30

25

1.3

75

0.5

30×25×1.3(2.0)

24VAC

35Ω

30

25

1.3

75

0.5





 4, 55×10×1.3 mm

Specification

Model NO.

D

E

H

L

Φb

55×10×1.3(2.0)

3.7VAC

0.3Ω

55

10

1.3

75

0.5

55×10×1.3(2.0)

3.7VAC

0.35Ω

55

10

1.3

75

0.5

55×10×1.3(2.0)

3.7VAC

0.4Ω

55

10

1.3

75

0.5

55×10×1.3(2.0)

3.7VAC

0.5Ω

55

10

1.3

75

0.5





 5, 70×7×1.3 mm

Specification

Model NO.

D

E

H

L

Φb

70×7×1.3(2.0)

220VAC

180Ω

70

7

1.3

75

0.5

70×7×1.3(2.0)

220VAC

150Ω

70

7

1.3

75

0.5

70×7×1.3(2.0)

220VAC

140Ω

70

7

1.3

75

0.5

70×7×1.3(2.0)

220VAC

120Ω

70

7

1.3

75

0.5

70×7×1.3(2.0)

220VAC

110Ω

70

7

1.3

75

0.5

70×7×1.3(2.0)

110VAC

80Ω

70

7

1.3

75

0.5

70×7×1.3(2.0)

110VAC

60Ω

70

7

1.3

75

0.5

70×7×1.3(2.0)

110VAC

40Ω

70

7

1.3

75

0.5



  6, 70×10×1.3 mm

Specification

Model NO.

D

E

H

L

Φb

70×10×1.3(2.0)

220VAC

180Ω

70

10

1.3

75

0.5

70×10×1.3(2.0)

220VAC

150Ω

70

10

1.3

75

0.5

70×10×1.3(2.0)

220VAC

140Ω

70

10

1.3

75

0.5

70×10×1.3(2.0)

220VAC

120Ω

70

10

1.3

75

0.5

70×10×1.3(2.0)

220VAC

110Ω

70

10

1.3

75

0.5

70×10×1.3(2.0)

110VAC

80Ω

70

10

1.3

75

0.5

70×10×1.3(2.0)

110VAC

60Ω

70

10

1.3

75

0.5

70×10×1.3(2.0)

110VAC

40Ω

70

10

1.3

75

0.5

70×10×1.3(2.0)

3VAC

70

10

1.3

75

0.5

70×10×1.3(2.0)

12VAC

70

10

1.3

75

0.5

70×10×1.3(2.0)

12VAC

10Ω

70

10

1.3

75

0.5





  7, 70×15×1.3 mm

Specification

Model NO.

D

E

H

L

Φb

70×15×1.3(2.0)

220VAC

180Ω

70

15

1.3

75

0.5

70×15×1.3(2.0)

220VAC

150Ω

70

15

1.3

75

0.5

70×15×1.3(2.0)

220VAC

140Ω

70

15

1.3

75

0.5

70×15×1.3(2.0)

220VAC

120Ω

70

15

1.3

75

0.5

70×15×1.3(2.0)

220VAC

110Ω

70

15

1.3

75

0.5

70×15×1.3(2.0)

110VAC

80Ω

70

15

1.3

75

0.5

70×15×1.3(2.0)

110VAC

60Ω

70

15

1.3

75

0.5

70×15×1.3(2.0)

12VAC

70

15

1.3

75

0.5





   8, 70×20×1.3 mm

Specification

Model NO.

D

E

H

L

Φb

70×20×1.3

220VAC

180Ω

70

20

1.3

75

0.5

70×20×1.3

220VAC

150Ω

70

20

1.3

75

0.5

70×20×1.3

110VAC

60Ω

70

20

1.3

75

0.5

70×20×1.3

110VAC

40Ω

70

20

1.3

75

0.5



  9, PTC Heater in Circle Shape

Specification

Model NO.

Φb

Ø25×1.3

12/24VAC

13Ω

0.5

Ø25×1.3

12/24VAC

15Ω

0.5

Ø25×1.3

12/24VAC

19Ω

0.5





10, PTC Heater in Ring Shape

Internal Dia.

External Dia.

Thickness

Max. Voltage

6.8mm

14.25mm

1.3mm

7V



 11, PTC Heater in Round Shape

Specification

Model NO.

Φb

Ø24×1.3

12VAC

4-7Ω

0.5

Ø24×1.3

24VAC

9-12Ω

0.5







Free Sample Supply Pretty MCH Ceramic Heater Element Hair Dryer Item
