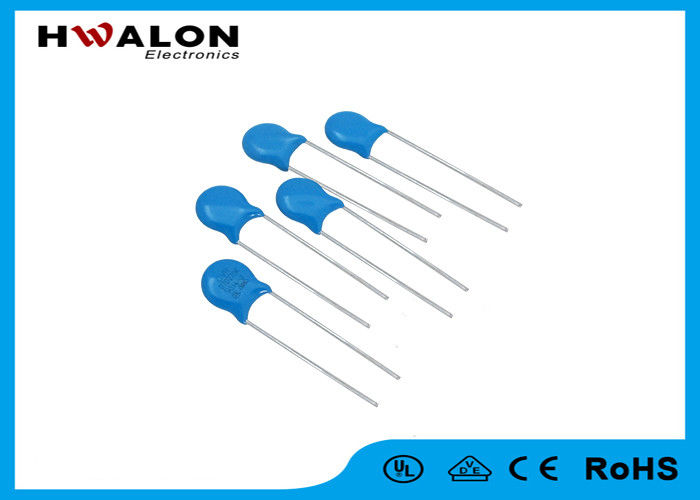

07D220K Epoxy Resin Metal Oxide Varistor MOV With Leaded Type For Lighting

07D220K Epoxy Resin Metal Oxide Varistor MOV With Leaded Type For Lighting

    • 07D220K Epoxy Resin Metal Oxide Varistor MOV With Leaded Type For Lighting
    • 07D220K Epoxy Resin Metal Oxide Varistor MOV With Leaded Type For Lighting
  • 07D220K Epoxy Resin Metal Oxide Varistor MOV With Leaded Type For Lighting

    Product Details:

    Place of Origin: CHINA
    Brand Name: MOV
    Certification: UL,VDE,CSA
    Model Number: 07D220K

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000pcs
    Price: By negotiation
    Packaging Details: 500pcs/bag
    Delivery Time: 5-7 days after payment received
    Payment Terms: T/T, Western Union
    Supply Ability: 100,000,000pcs/month
    Contact Now
    Detailed Product Description
    Model NO.: 07D220K Varistor Voltage: 22V (20-24V)
    Chip Size: 7mm Epoxy Type: Epoxy Resin
    Varistor Type: Leaded Type Application: Lighting
    Varistor Color: Blue Place Of Origin: Guangdong,China



    07D220K Epoxy Resin Metal Oxide Varistor MOV With Leaded Type For Lighting



    Detailed Parameters:



    Item Parameters
    Model NO. 07D220K
    Varistor Type Leaded Type
    Size 7 mm
    Varistor Voltage 22V (20-24V)

    Epoxy Type Epoxy Resin
    Epoxy Color Blue Color

    Lead Type Straight Lead



    All the above parameters is customized to meet customers' requirements.



    If the parameters you need is special and Not standard,No worries.Just please feel free to inform us. We will customize the parameters for you to meet your requirements.



    Specification :


    P/N AC Voltage DC Voltage Varistor Voltage UL
    07D220K 14 18 22V (20-24V)



    Custom specifications can be designed according to customer's requirements.



    Features :



    1.
    • Wide operating voltage range 11 ~ 1100 V rms
    2.
    • High surge current ratings up to 8 kA
    3.
    • No derating up to 85 degree ambient temperature

    4.
    • For S14 / S20 types duty cycle @ 6kV / 3kA = > 10 pulses, according to IEC 60950 - 1, Annex Q; IEC 61051 - 2
    5.
    • PSpice models


    Description :



    Metal oxide varistor :



    • The core of the arrester;



    • The main component is Zinc Oxide and with a small quantity of bismuth oxide, fluoride oxide, manganous carbonate, antimony oxide and other gleam of additive;



    • To be made with high temperature.


    Construction :



    Round varistor element, leaded

    Coating : epoxy resin, flame-retardant to UL 94 V - 0



    Lead Types Options



    Option 1 Straight Lead
    Option 2 Kinked Lead
    Option 3 K  Lead

    3 types Lead styles is available.
    Just choose any one you like, then we can do for you !


    Typical Applications :

    It can be widely used on Surge Protector Device, Motor Protector, Over-voltage Protector Device and Lightning Arrester, etc.



    Delivery Mode :



    Option 1 Bulk (standard)
    Option 2 taped versions on reel pack
    Option 3 taped versions on Ammo pack



    Just pls choose any way you like, then we will do it for you upon request.



    Packing:



    Each product will be packed in OPP Bag + Carton.

    The outer cartons of the goods, which white plastic strap is pasted, to keep from busting out once the goods is facing creaking and striking.

    In general, the goods can be sent to you by Express,by Air,by Sea, any way you like !



    Delivery:



    7 ~10 days is needed for mass production after payment received.



    Then send the shipment as customers' demands.



    07D220K Epoxy Resin Metal Oxide Varistor MOV With Leaded Type For Lighting


    07D220K Epoxy Resin Metal Oxide Varistor MOV With Leaded Type For Lighting



    If any questions or ideas,just please feel free to contact us, since we hold the opinion that any questions or trouble can be absolutely settled.

    It is our hope, by joint effort, to promote both business and friendship to our mutual advantage.
