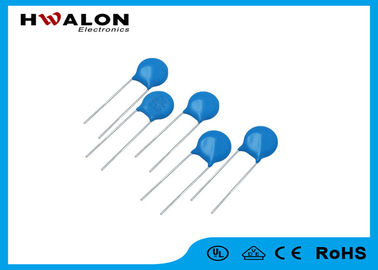

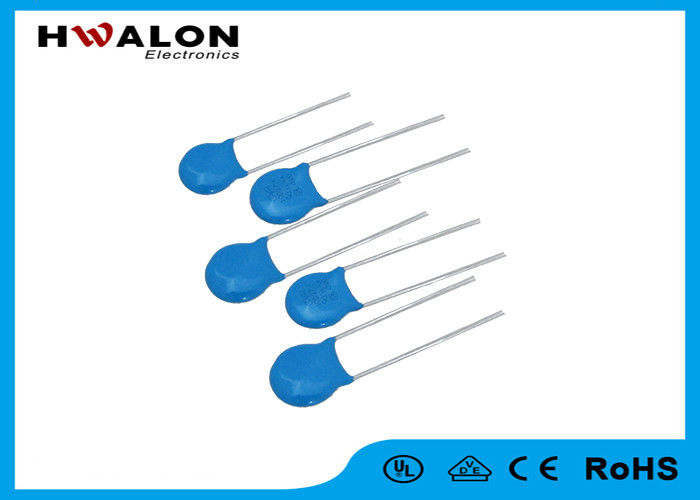

Lead Type 20D180L MOV Metal Oxide Varistor With Epoxy Resin For Motorizes Furniture

Lead Type 20D180L MOV Metal Oxide Varistor With Epoxy Resin For Motorizes Furniture

    • Lead Type 20D180L MOV Metal Oxide Varistor With Epoxy Resin For Motorizes Furniture
    • Lead Type 20D180L MOV Metal Oxide Varistor With Epoxy Resin For Motorizes Furniture
  • Lead Type 20D180L MOV Metal Oxide Varistor With Epoxy Resin For Motorizes Furniture

    Product Details:

    Place of Origin: CHINA
    Brand Name: MOV
    Certification: UL,VDE,CSA
    Model Number: 20D180L

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000pcs
    Price: By negotiation
    Packaging Details: 500pcs/bag
    Delivery Time: 5-7 days after payment received
    Payment Terms: T/T, Western Union
    Supply Ability: 100,000,000pcs/month
    Contact Now
    Detailed Product Description
    Part NO.: 20D180L Chip Size: 20 Mm
    Voltage: 11VAC Varistor Type: Leaded Type
    Epoxy Type: Epoxy Resin Application: Motorizes Furniture
    Sample Cost: Free Of Charge Sample Leadtime: 3-5 Days



    Lead Type 20D180L MOV Metal Oxide Varistor With Epoxy Resin For Motorizes Furniture


    Detailed Parameters:



    P/N 20D180L
    Chip Size 20mm
    AC voltage 11 V
    DC Voltage 14 V
    Varistor Voltage 18V (15-21)

    Varistor Type Leaded Type
    Epoxy Type Epoxy Resin
    Epoxy Color Blue Color
    Lead Type Straight Lead



    All the above parameters is customized to meet customers' requirements.



    If the parameters you need is special and Not standard,No worries.Just please feel free to inform us. We will customize the parameters for you to meet your requirements.


    Specification :


    P/N AC Voltage DC Voltage Varistor Voltage UL
    20D180L 11 14 18V (15-21)



    Custom specifications can be designed according to customer's requirements.



    Description :



    Metal oxide varistor :



    • The core of the arrester;



    • The main component is Zinc Oxide and with a small quantity of bismuth oxide, fluoride oxide, manganous carbonate, antimony oxide and other gleam of additive;



    • To be made with high temperature.


    Construction :



    1. Round varistor element, leaded
    2. Coating : epoxy resin, flame-retardant to UL 94 V - 0


    Features :



    • Wide operating voltage range 11 ~ 1100 V rms
    • High surge current ratings up to 8 kA
    • No derating up to 85 degree ambient temperature





    • For S14 / S20 types duty cycle @ 6kV / 3kA = > 10 pulses, according to IEC 60950 - 1, Annex Q; IEC 61051 - 2
    • PSpice models



    Typical Applications :

    It can be widely used on Surge Protector Device, Motor Protector, Over-voltage Protector Device and Lightning Arrester, etc.

    Competitive Advantage :



    1. Radial leaded type
    2. Many size choice : 7mm, 10mm, 14mm, 20mm, 25mm and 32mm
    3. VM(AC)RMS voltage range from 130V to 1000V


    4. Energy absorption capability up to 360J
    5. UL ,VDE ,CSA Certification



    Delivery Mode :



    Option 1 Bulk (standard)
    Option 2 taped versions on reel pack
    Option 3 taped versions on Ammo pack



    Just pls choose any way you like, then we will do it for you upon request.



    Packing:



    Each product will be packed in OPP Bag + Carton.

    The outer cartons of the goods, which white plastic strap is pasted, to keep from busting out once the goods is facing creaking and striking.

    In general, the goods can be sent to you by Express,by Air,by Sea, any way you like.



    Delivery:



    15 ~ 20 days is needed for mass production after payment received.



    Then send out as customers' demands.



    Lead Type 20D180L MOV Metal Oxide Varistor With Epoxy Resin For Motorizes Furniture


    Lead Type 20D180L MOV Metal Oxide Varistor With Epoxy Resin For Motorizes Furniture



    If any questions or ideas,just please feel free to contact us, since we hold the opinion that any questions or trouble can be absolutely settled.

    It is our hope, by joint effort, to promote both business and friendship to our mutual advantage.
