Name: 80-300W Ceramic PTC Heating Element Wide Operating Voltage For Coffee Warmer Plate
Brand: Hwalon
SKU: PR4
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (124 reviews)

Home Products PTC Heating Element

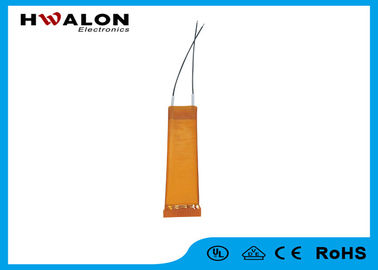

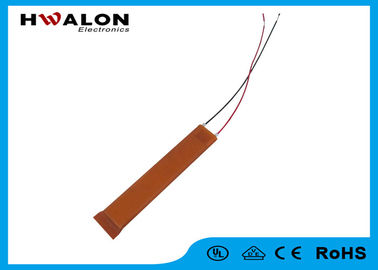

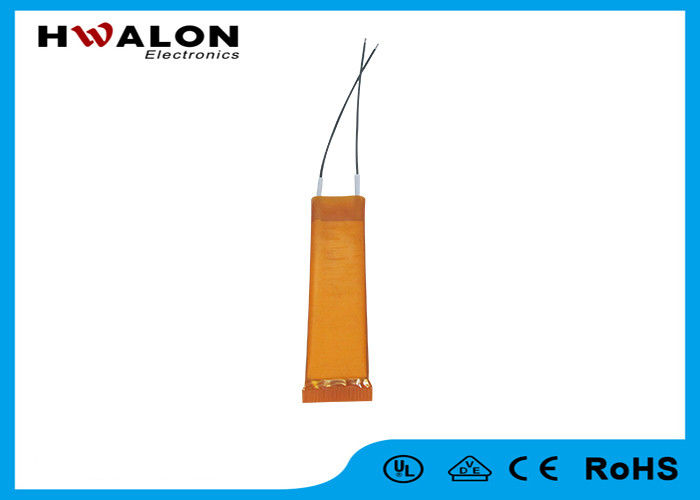

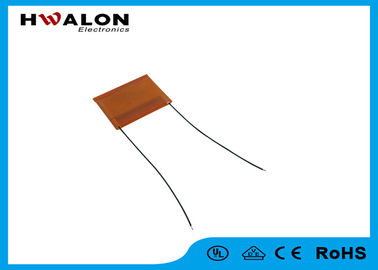

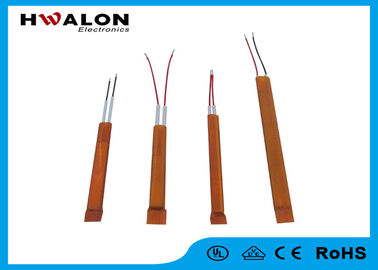

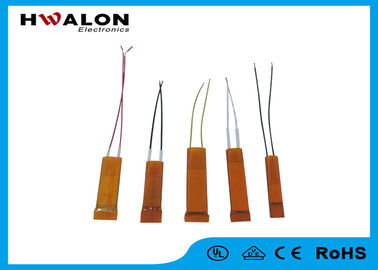

80-300W Ceramic PTC Heating Element Wide Operating Voltage For Coffee Warmer Plate

Product Details:

Place of Origin:	CHINA
Brand Name:	Hwalon
Certification:	CE UL
Model Number:	PR4

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	by negotiation
Packaging Details:	Plastic+carton/ bulk
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	100,000pcs/month

Contact Now

Detailed Product Description

Surface Temperature:	70℃-290℃	Power:	80-300W
Rated Voltage:	12V/24V/110V/240V	Resistance:	1-330ohm
Size:	Custom Made	Temperature Tolerance:	≤±5℃
Material:	Insulation Package
High Light:	ptc ceramic heating element , ceramic heater element

Customized Ceramic PTC heating element For Hand Dryer and coffee warmer plate

Description:

With the characteristic of constant temperature, the PTC heater does not need the temperature-controlling system.-.If the PTC heater is used to heat the cold wind, it will not be destroyed when the wind is stopped.-.If the PTC heater is used to heat the liquid (eg: water), it will not be destroyed when the liquid is burnt to be dry.

Characteristics:

· With charcteristics of constant temperature.

· PTC hearter does not require temperature controlling system

· It is safe when liquid is burnt out in liquid heating device

· Not sensitive to voltage fluctuating

· Wide operating voltage

· Restore automatically after invalidation

PTC heating elements:

1. Simple structure, easy to install, automatic temperature, no temperature control, safety, long life.

2. Heater will not be damaged when there is no liquid.

3. It could give out the heater continous.

4. Saving energy

5.The power is stable.

Surface temperature	80℃~290℃
operating voltage	12V/24V/110V/240V DC/ AC
Temperature tolerance	±5℃
Insulation withstand voltage	> 3750V
Rated power	20W ~ 2000W

Parameters:

PTC size	Voltage(V)	Temperature(℃)
30-120205mm	100-240V	60℃-280℃
30-120306mm	100-240V	60℃-280℃
30-120337mm	100-240V	60℃-280℃
30-120357mm	100-240V	60℃-280℃
30-120407mm	100-240V	60℃-280℃
30-120437mm	100-240V	60℃-280℃
30-120467mm	100-240V	60℃-280℃
30-120567mm	100-240V	60℃-280℃

Application:

Air-heating, wind-warming equipment, cold and warm air-conditioner.

Physical treatment, massage apparatus, biology heating.

Mosquito-driving apparatus, boiled-water equipment, heating board, shoe-drying apparatus, hair-curling equipment.

Typical Applications:

1. Coffee Maker

2. Heating Plates

3. Drying Machines

4. Hair Dryer, Hair straightener, hair curler

5. Diesel Heater

6. Paraffin melter

How to Order:

1. Application of the PTC heater : _______
2. Working environment of the PTC heater :______
3. The range of operating temperature:___℃to ____℃
*4. Dimension of the PTC heater: _______
*5. R(25) Value :_____
*6. Surface Temperature:_____
*7. Power:_____
* Fill “*” items necessarily
