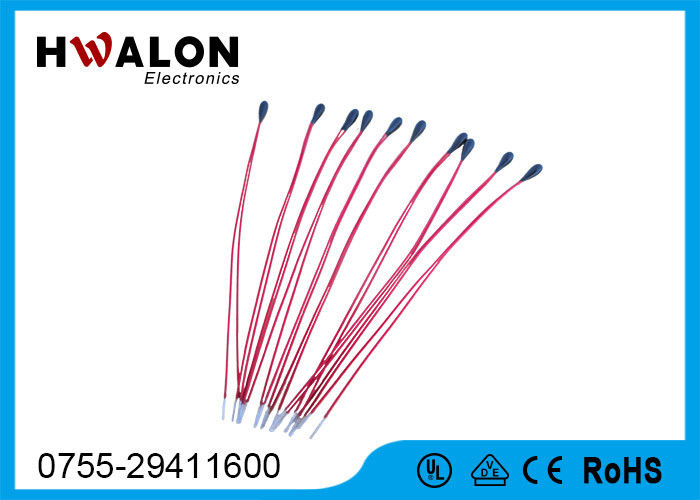

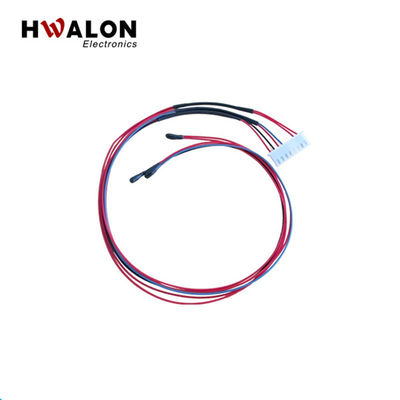

High Stability 10k 100k Ohm 1% NTC Temperature Sensor Resistor For Automotive Electronics

High Stability 10k 100k Ohm 1% NTC Temperature Sensor Resistor For Automotive Electronics

    • High Stability 10k 100k Ohm 1% NTC Temperature Sensor Resistor For Automotive Electronics
    • High Stability 10k 100k Ohm 1% NTC Temperature Sensor Resistor For Automotive Electronics
  • High Stability 10k 100k Ohm 1% NTC Temperature Sensor Resistor For Automotive Electronics

    Product Details:

    Place of Origin: China
    Brand Name: Hwalon
    Certification: CE, SGS, RoHS
    Model Number: ntc sensor

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: Negotiable
    Packaging Details: Carton/ Bulk
    Delivery Time: 7-15 working days
    Payment Terms: Western Union, T/T, Paypal
    Supply Ability: 600000
    Contact Now
    Detailed Product Description
    Diameter: 2.0±0.3mm Resistance: 1k-330k Ohm
    Tolerance: ±1% B Value: 3100k-4300k
    Foot Pitch: 2.0±0.05mm

    High stability 10k 100k ohm 1% NTC Temperature Sensor Thermistor for Automotive electronics



    Quick Details:



    1. Excellent thermal cycle endurance

    2. Good quality of coherence and interchange

    3. -55 ~125 operating temperature range

    4. High stability steady

    5. Wide resistance range

    6. Has Small size, fast response







    unit:mm



    Dmax±0.3 L1max L2mix ∮d±0.05 F±0.05
    2.0 3.2 18 0.45 1.0







    Parameters:



    Coating Epoxy Resin
    Color Black
    Lead material CP wire
    Thermistor Specification R25=880 ohm,Beta 20/50=3150K
    Dissipation Factor ≥2mW/C
    Thermal Time Contant ≤10sec
    Insulation resistance ≥100Mohm at 100VDC 1min
    Operating temperature -40~+125degree
    Soldering Temperature <350degree
    Storage conditions -10~+40degree; ≤75% RH
    Application ECT Temperature sensor





    Application:



    1. Microwave oven,electric brooder

    2. Heating Apparatus,Electric Thermometer

    3. Disinfecting machine,soybean milk

    4. Refrigerator,frozen cabinet and air conditioner

    5. Liquid Level Sensor,Automotive electronics



    Dimension:

    High Stability 10k 100k Ohm 1% NTC Temperature Sensor Resistor For Automotive Electronics



    How to Order:



    1. Resistance and tolerance

    2. B Value and tolerance

    3. Diameter

    4. Range of usage temperature



    Please provide us with these parameters to help you get the exect model.



    FAQ:



      Questions Answers
    1 What is the MOQ? 5Kpcs
    2 What is the payment terms? By negotiation
    3 Can you accept special requirement? Yes, we can.we can design for your special requirement.
    4 Can you make the printing artworks(such as user manual/packing/rating label) in our language? Yes we can.we do OEM work for a long time.





    Our Advantages:

    • 15 years experience on PTC/NTC thermistor field.
    • Competitive price
    • On time handle over
    • Inquiry answered in 24hrs
    • Good team waiting here to serve for you
    • RoHS &UL compatible
    • OEM & ODM business accepted
    • Main target market:Europe, North America, Asia.
