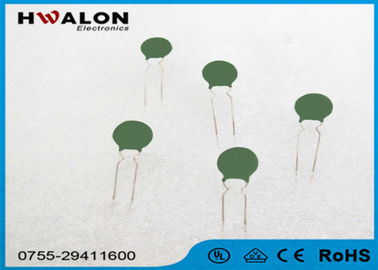

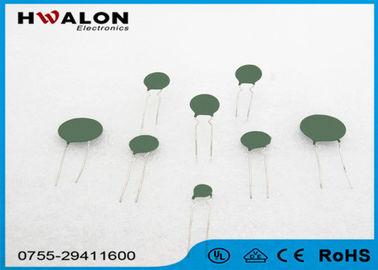

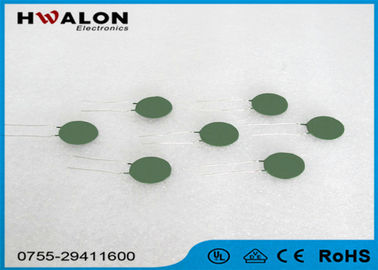

PTC Inrush Current Limiter Thermistor High Stability PR2 PTC Ceramic Composition 12V~220V

    • PTC Inrush Current Limiter Thermistor High Stability PR2 PTC Ceramic Composition 12V~220V
    • PTC Inrush Current Limiter Thermistor High Stability PR2 PTC Ceramic Composition 12V~220V
    • PTC Inrush Current Limiter Thermistor High Stability PR2 PTC Ceramic Composition 12V~220V
    • PTC Inrush Current Limiter Thermistor High Stability PR2 PTC Ceramic Composition 12V~220V
  • PTC Inrush Current Limiter Thermistor High Stability PR2 PTC Ceramic Composition 12V~220V

    Product Details:

    Place of Origin: China
    Brand Name: HWALON
    Certification: RoHS, CQC
    Model Number: PR2

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000
    Price: Negotiation
    Packaging Details: bulk package
    Delivery Time: 10-15 days
    Payment Terms: T/T, Western Union,Paypal
    Supply Ability: 1,000,000pcs/month
    Contact Now
    Detailed Product Description
    Packing Type: Bulk Pack & Reel Pack Item Color: Green
    Max. Operating Voltage: 20V~265V Restore Time: 60s
    Rated Voltage: 12V~220V Technology: Ceramic Composition
    Operating Temp. Range: -25℃~125℃ Place Of Origin: Guangdong



    PTC thermistor for overcurrent and overload protect High Stability PR2 PTC Inrush Current Limiter 12V~220V Epoxy Sealed





    Company Introduction:

    • 15 years experience on PTC/NTC thermistor field.
    • Competitive price
    • On time handle over
    • Competitive price
    • Inquiry answered in 24hrs
    • Good team waiting here to serve for you
    • RoHS &UL compatible
    • OEM & ODM business accepted
    • Main target market:Europe, North America, Asia.



    Competitive Advantage:



    1. PTC thermistor for overcurrent and overload protection is a million-time device of automatic protection, recoverability, using repeatedly, and no trigger, noice or sparks.



    2. When PTC is in the normal state, the resistance is too low to affect the regular work of the protected circuit such as the voltage transformer's primary and secondary loops.



    3. When the circuit is in disorder, the PTC will generate heat suddenly, and the resistance value will go up to the high state, which make the circuit in the state of relatively "reaking up" to protect the circuit.











    Description:

    1. Surges due to lighting strikes on or near to the line plant.

    2. Short-term induction of alternating voltage from adjacent power lines or railway systems, usually when these lines or systems occur fault.

    3. Direct contact between telephone lines and power lines.





    Applications:

    Switching power supply

    air-conditioner and other household appliances

    microwave oven

    adapter

    LED control panel

    industry-controlling exchangers

    program exchanger

    security unit

    telephone

    overcurrent protection of terminals







    General Technical Data



    rated voltage Vn 12V~220Vrms
    max. operating voltage Vmax 20V~265Vrms
    surge voltage withstanding Vs Vmax*(1.2~1.5)
    tolerance of resistance Rn ±20%(M), ±25%(V)
    non-trip current In 10mA~1800mA
    trip current It 20mA~3600mA
    max. operating current Imax 0.2A~10.0Arms
    restore time Tr 60S(max)
    typical switching times N 10000 times
    tolerance of switching temp. Tc ±10 ℃
    operating temperature range Ta

    -25 ℃~125 ℃(V=0V)

    0 ℃~60 ℃(V=Vmax)







    Specifications:



    No. Part no. Vmax (v) non-trip current (mA) @25 ℃ non-trip current (mA) @60 ℃ trip current (mA) @25℃ resistance( Ω ) ±25% Imax (A) switch temp. D(max) T(max) d
    1 H2PR151RH03LB265 265 22 15 45 150 0.2 80 ℃ ±7℃ 4.5 5.0 0.5
    2 H2PR101RH03LB250 250 25 18 55 100 0.2 80 ℃±7 ℃ 4.5 5.0 0.5
    3 H2PR70RH05LB250 250 50 30 100 70 0.3 80 ℃±7 ℃ 6.5 5.0 0.5
    4 H2PR121RH05LB265 265 30 20 60 120 0.3 80 ℃±7 ℃ 6.5 5.0 0.5
    5 H2PR101RH07LB265 265 50 30 100 100 0.6 80 ℃±7 ℃ 8.0 5.0 0.6
    6 H2PR12RH08LB250 265 120 70 220 12 0.8 80 ℃±7 ℃ 9.0 5.0 0.6
    7 H2PR25RH08LB265 265 85 50 170 25 0.8 80 ℃±7 ℃ 9.0 5.0 0.6
    8 H2PR35RH08LB265 265 80 50 150 35 0.8 80 ℃±7 ℃ 9.0 5.0 0.6
    9 H2PR50Rh08LB265 265 60 40 120 50 1.0 80 ℃±7 ℃ 9.0 5.0 0.6
    10 H2PR70RH03HE250 250 45 35 90 70 0.1 100 ℃±7 ℃ 4.5 5.0 0.5
    11 H2PR101RH03HE250 250 40 30 80 100 0.2 100 ℃±7 ℃ 4.5 5.0 0.5
    ... ...

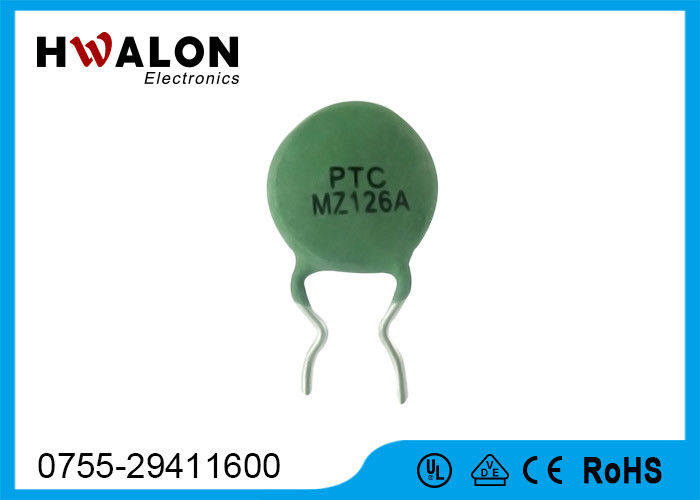

    PTC Inrush Current Limiter Thermistor High Stability PR2 PTC Ceramic Composition 12V~220V





    High Stability Inrush Current Limiter Thermistor Epoxy Sealed PTC Thermistor
