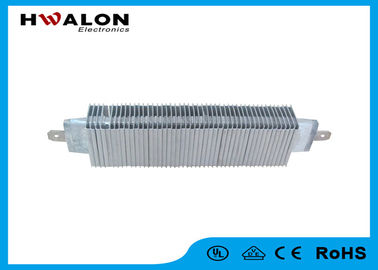

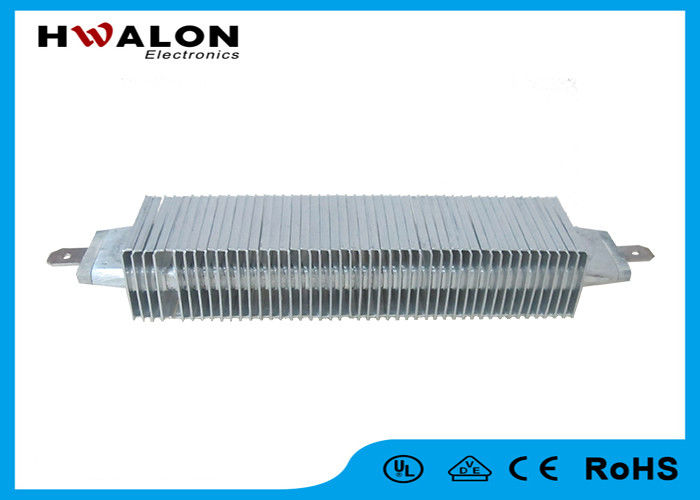

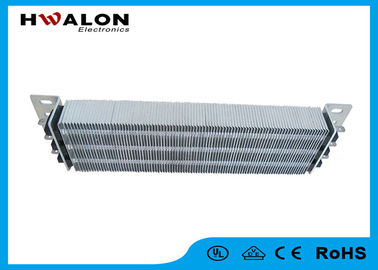

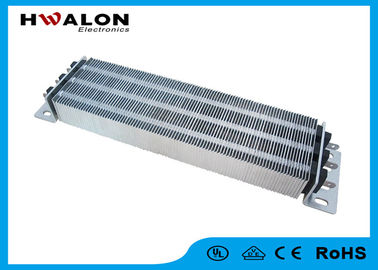

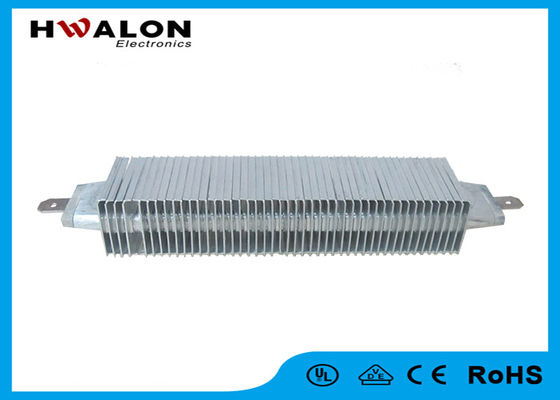

Energy Efficiency PTC Aluminum Heating Elements For Warm Air Blower Clothes Dryer

    • Energy Efficiency PTC Aluminum Heating Elements For Warm Air Blower Clothes Dryer
    • Energy Efficiency PTC Aluminum Heating Elements For Warm Air Blower Clothes Dryer
    • Energy Efficiency PTC Aluminum Heating Elements For Warm Air Blower Clothes Dryer
    • Energy Efficiency PTC Aluminum Heating Elements For Warm Air Blower Clothes Dryer
    • Energy Efficiency PTC Aluminum Heating Elements For Warm Air Blower Clothes Dryer
  • Energy Efficiency PTC Aluminum Heating Elements For Warm Air Blower Clothes Dryer

    Product Details:

    Place of Origin: CHINA
    Brand Name: Hwalon
    Certification: CE UL
    Model Number: PR4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: by negotiation
    Packaging Details: 30pcs-50pcs /carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T, Western Union. Paypal
    Supply Ability: 100,000pcs/month
    Contact Now
    Detailed Product Description
    Power: 800-2500W Rated Voltage: 50-270V
    Resistance: 8-3500ohm Application: Home Applicance
    Heat Sink: Aluminum Welding Sink Wind Speed: 5-6m/S
    Outlet Air Temperature: 100C



    Energy Efficiency PTC Aluminum Heating Elements For Warm Air Blower Clothes Dryer air curtain heating 1500W







    Dimensions:



    · L* W* T (Thickness usually 15-20mm), Length and width is custom-made.

    · Shapes: Square rectangle

    · As shown in detailed pictures

    · Customized











    Technical features:

    1. Energy saving, high thermal efficiency, the unit heat capacity than the PTC save 20%-30%;

    2. Security is not charged surface, insulation performance is good, can endure the withstand voltage of 4500v / 10s test, no breakdown, leakage current <0.5mA ;

    3. No impact current peak;

    4. Heating up fast;

    5. Without power attenuation;

    6. Security, the halogen-light;

    7. Good heat uniform consistency, high power density;

    8. Environmental protection, do not contain lead, cadmium, mercury, hexavalent chromium, such as pests, in full compliance with the eu ROHS environmental protection requirements;

    9. Long service life.

    10. At present the highest temperature can reach 500℃, especially suitable for industrial electric oven.







    Specifications:



    no. part No. resistance surf. temp. max voltage length width thickness
    1 H4PR140RA16K100 7-20 100 20 16 11 2
    2 H4PR102RA19K100 600-1500 100 270 16 11 2.5
    3 H4PR142RA19K230 800-2000 230 270 19 12 2.2
    4 H4PR102RA20K110 500-1500 110 270 23.5 10 2.2












    Applications:

    1.ceramic heater fan, hair dryer, hand dryer, clothes dryer, dish dryer.
    2. coffee makers, steam irons, cooking devices, facial sauna, humidifier.
    3. curing irons, wax-warmer, glue gun, dehumidifier.
    4. mosquito repellent, liquid warmer, control devices.







    Typical Application:



    1 Ceramic heater fan, hair dryer, hand dryer, clothes dryer, dish dryer
    2 Coffee makers, steam irons, cooking devices, facial sauna, humidifier
    3 Physical treatment, massage apparatus, biology heating
    4 Mosquito repellent, liquid warmer, control devices





    Energy Efficiency PTC Aluminum Heating Elements For Warm Air Blower Clothes Dryer

    Energy Efficiency PTC Aluminum Heating Elements For Warm Air Blower Clothes Dryer
