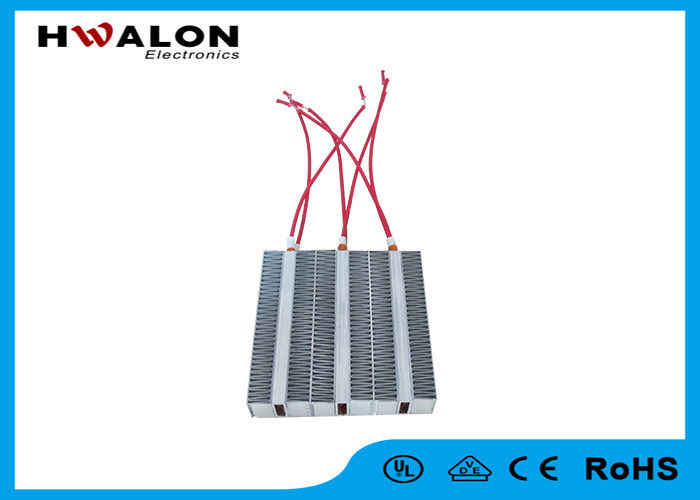

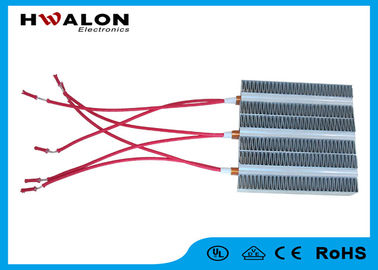

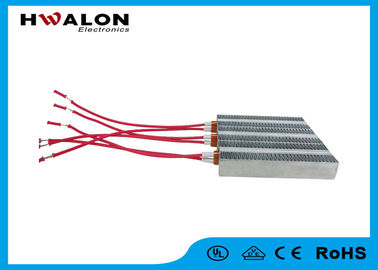

1000W-3000W Ceramic Ptc Heater 110v 220V 240V 420v For Electric Car Heater

1000W-3000W Ceramic Ptc Heater 110v 220V 240V 420v For Electric Car Heater

    • 1000W-3000W Ceramic Ptc Heater 110v 220V 240V 420v For Electric Car Heater
    • 1000W-3000W Ceramic Ptc Heater 110v 220V 240V 420v For Electric Car Heater
    • 1000W-3000W Ceramic Ptc Heater 110v 220V 240V 420v For Electric Car Heater
  • 1000W-3000W Ceramic Ptc Heater 110v 220V 240V 420v For Electric Car Heater

    Product Details:

    Place of Origin: CHINA
    Brand Name: Hwalon
    Certification: RoHs CE UL
    Model Number: PR4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: by negotiation
    Packaging Details: 30pcs/carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 100,000pcs/month
    Contact Now
    Detailed Product Description
    Power: 50-3000W Rated Voltage: 50-420v
    Outlet Air Temperature: 20- 100C Application: Home Applicance, Electronic Energy Saving Cars
    Heat Sink: Aluminum Welding Sink Material: Aluminum Plate And PTC Heater And Frame



    Heating element PTC Ceramic air Heater 1000w -3000W 110v 220V 240V 420v for Electric Car Heater







    Application:



    1. this type PTC heater can make large power up to 3KW each plate which can be used for electronic energy car, air conditioner, Air Curtain, dehumidifier, air heater etc.




    2, other PTC heater:

    1)Fan heating element for ceramic heater fan, hair dryer, hand dryer, clothes dryer, dish dryer etc.



    2).Heating plates for coffee makers, steam irons, cooking devices, facial sauna, humidifier etc.



    3).Tube heating elements for curing irons, wax-warmer, glue gun, dehumidifier etc.



    4).Other shapes of heating element can be used for mosquito repellent, liquid warmer, control devices etc.









    Typical Application:



    1 Ceramic heater fan, hair dryer, hand dryer, clothes dryer, dish dryer
    2 Coffee makers, steam irons, cooking devices, facial sauna, humidifier
    3 Physical treatment, massage apparatus, biology heating
    4 Mosquito repellent, liquid warmer, control devices







    Parameters of ptc air heater:



    PTC Air Heater Model
    Model Dimension (mm) Aluminum Tubes

    Fin Width

    (mm)

    Fin Pitch

    (mm)

    SS



    148mm × 44.5mm × 15 mm

    148mm × 22.5mm × 15 mm

    120mm × 107mm × 15 mm

    96mm × 88.5mm × 15 mm

    96mm × 22.5mm × 15 mm

    25mm × 22.5mm × 15 mm

    45mm × 44.5mm × 15 mm



    N/A N/A N/A





    Custom-made services is available.



    Dimension:  Standard thickness is 15mm,  and width and length is up to clients' requirement.

    Voltage  : AC/DC 12V/24V/48V/72V/120V/240V/300V/400V/480V/560V

    Power: 50w-3000w

    Surface temperature: can reach 300℃

    electricity Type : can be made insulated or with electricity.

    Frame: can be metal or plastic which is up to your need, and plastic frame need to open mould.







    Specifications:



    no. part No. resistance surf. temp. max voltage length width thickness
    1 H4PR140RA16K100 7-20 100 20 16 11 2
    2 H4PR102RA19K100 600-1500 100 270 16 11 2.5
    3 H4PR142RA19K230 800-2000 230 270 19 12 2.2
    4 H4PR102RA20K110 500-1500 110 270 23.5 10 2.2










    1000W-3000W Ceramic Ptc Heater 110v 220V 240V 420v For Electric Car Heater



    1000W-3000W Ceramic Ptc Heater 110v 220V 240V 420v For Electric Car Heater
