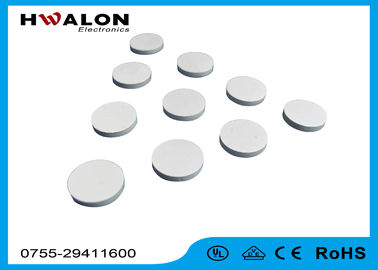

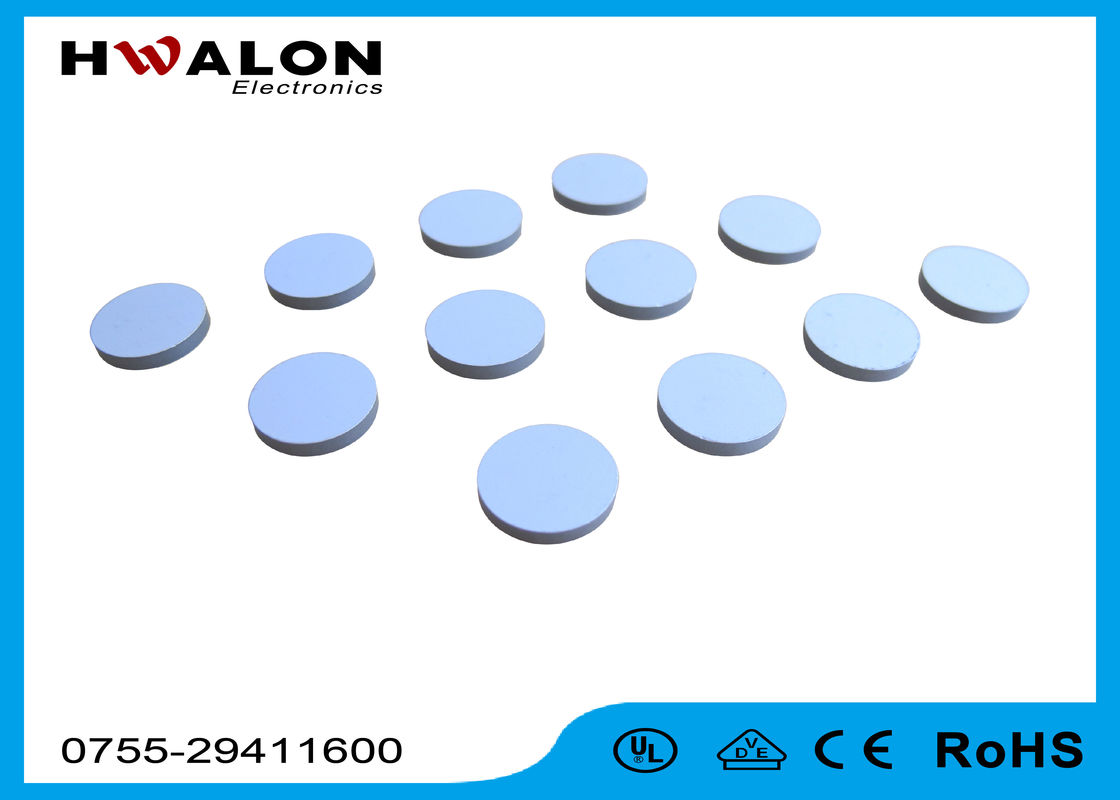

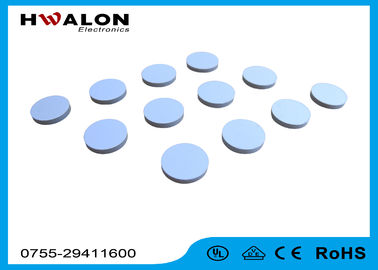

High Performance Mini Ceramic Heating Element Chip RoHS / Halogen Free Compliant

High Performance Mini Ceramic Heating Element Chip RoHS / Halogen Free Compliant

  • High Performance Mini Ceramic Heating Element Chip RoHS / Halogen Free Compliant
  • High Performance Mini Ceramic Heating Element Chip RoHS / Halogen Free Compliant
High Performance Mini Ceramic Heating Element Chip RoHS / Halogen Free Compliant
Product Details:
Place of Origin: China
Brand Name: Hwalon
Model Number: PTC-PR4
Payment & Shipping Terms:
Minimum Order Quantity: 5Kpcs
Price: negotiation
Packaging Details: Packed in OPP Bag firstly,and then reinforced with Cartons for outer packing
Delivery Time: 15~20 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Payment Terms: T/T, Western Union Target Market: Cooking Devices, Facial Sauna, Humidifier
Operating Temp. Range: -25~+125°C,0~+60°C Max Operating Voltage: 15V~270V Rms
Temperature: -40℃ ~ +85℃ Rated Voltage: 3.6V~240V Rms
Surge Voltage Withstanding: 400V~900V Rms Tolerance Of Surface Temp.: ±3℃ ~ ±10℃
High Light:

ceramic PTC heater

,

ceramic resistor heater

High Performance Mini Ceramic Heating Element Chip RoHS / Halogen Free Compliant





Features:

1. RoHS & Halogen Free (HF) compliant

2. constant temperature,temperature-controlling system is not needed

3. When heating the cold wind, it will not be destroyed when wind is stopped

4. When heating the liquid, it will not be destroyed when wind is burnt to be dry

5. Not sensitive to voltage fluctuating, and wide range of operating voltage

6. Restore automatically after invalidation





Applications:

PTC Heater Pills

Coffee maker,steam irons,cooking devices,

facial sauna,humidifier

The PTC heater pills can be widely applied to electric appliance,like facial sauna,cooking devices,coffee maker,steam iron,etc.





Competitive Advantage:

  • Simple construction
  • High-quality ceramic material
  • Different shape is available: square,rectangle,round,ring
  • Customized design and size is available
  • Perfect surface polish
  • Stable heating performance
  • Considerate service & reasonable price
  • RoHS & Halogen Free (HF) compliant
  • Constant temperature,temperature-controlling system is not needed
  • When heating the cold wind, it will not be destroyed when wind is stopped
  • When heating the liquid, it will not be destroyed when wind is burnt to be dry
  • Not sensitive to voltage fluctuating, and wide range of operating voltage
  • Restore automatically after being invalided





Specifications:

no.

part No.

resistance

surf. temp.

max voltage

length

width

thickness

 1

 H4PR3RA20K180

 1-5

 180

 80

 /

 /

1.4

 2

 H4PR7R5A08K145

 5-10

 145

 20

 /

 /

 2.8

 3

 H4PR14RA13K075

 8-20

 75

 80

 /

 /

 2.5

 4

 H4PR14RA17K160

 8-20

 160

 80

 /

 /

 1.4

 5

 H4PR18RA10K110

 10-25

 110

 80

 /

 /

 2.5

 6

 H4PR35RA13K150

 20-50

 150

 30

 /

 /

 1.3

 7

 H4PR70RA13K155

 50-90

 155

 80

 /

 /

 1.3

 8

 H4PR321RA13K175

 150-500

 175

 140

 /

 /

 2.2

 9

 H4PR501RA10K150

 200-800

 150

 140

 /

 /

 2.2

 10

 H4PR501RA10K050

 200-800

 185

 270

 /

 /

 2.2

 11

 H4PR102RA08K050

500-1500

 50

 270

 /

 /

 3

 12

 H4PR102RA13K075

500-1500

 75

 270

 /

 /

 2.2

 13

 H4PR102RA08K130

500-1500

 130

 270

 /

 /

 2.2

 14

 H4PR102RA20K130

500-1500

 130

 270

 /

 /

 2.2

 15

 H4PR102RA10K155

500-1500

 155

 270

 /

 /

 2.2

 16

 H4PR102RA20K160

500-1500

 160

 270

 /

 /

 2.2

 17

 H4PR102RA10K180

500-1500

 180

 270

 /

 /

 2.2

 18

 H4PR142RA13K230

800-2000

 230

 270

 /

 /

 2.5

 19

 H4PR142RA13K250

800-2000

 250

 270

 /

 /

 2.5

 20

 H4PR352RA20K250

2000-5000

 250

 270

 /

 /

 2.5

 21

 H4PR200RA16K055

12-32

 55

20

 /

 /

 1.5

22

H4PR140RA16K100

7-20

100

20

16

11

2

23

H4PR102RA19K100

600-1500

100

270

16

11

2.5

24

H4PR142RA19K230

800-2000

230

270

19

12

2.2

25

H4PR102RA20K110

500-1500

110

270

23.5

10

2.2

26

H4PR271RA16K090

150-400

90

140

16

11

2.5

27

H4PR551KRA16K085

300-800

85

140

16

11

2.5

28

H4PR651RA23K250

300-1000

250

140

23.5

10

2.2

29

H4PR142RA24K255

800-2000

255

270

23.5

10

2.2

30

H4PR202RA24K255

500-3000

255

270

36

6

2.3

31

H4PR140RA24K280

8-20

280

50

24

15

1.4

32

H4PR551RA24K280

300-800

280

140

24

15

2.5

33

H4PR202RA24K280

800-3500

280

270

24

15

2.5

34

H4PR202RA24K290

500-3000

290

270

36

6

2.5




Description:

PTC heater pills are made of high-quality Ceramic material,which is widely used in electronic items,like coffee maker,steam irons,facial sauna,humidifier,etc.It also can be used in wide range of operating voltage. The strong points is that it can be restored automatically after being invalided.





High Quality Mini PTC Ceramics Heating Element Chip for Facial Sauna Item
