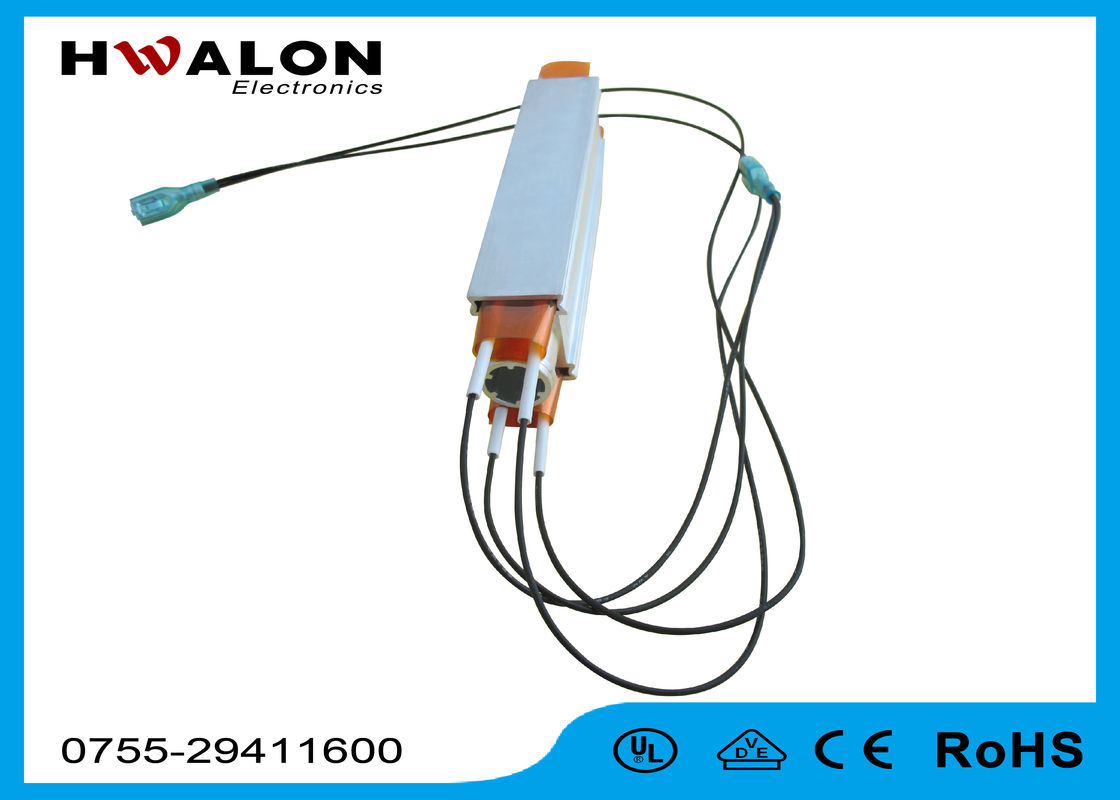

Long Leads Liquid Ceramic Resistor Heater PTC Environmental Protection

Long Leads Liquid Ceramic Resistor Heater PTC Environmental Protection

Long Leads Liquid Ceramic Resistor Heater PTC Environmental Protection

Product Details:

Place of Origin: China
Brand Name: Hwalon
Certification: CE/RoHS/CE/VDE
Model Number: PR4

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: Standard CTN package or according to customer’s requirement
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Lead Dia.: Customized Strong Point: Can Be Used In Water
Power: 20W~2000W Operating Voltage: 6V~240V
Surface Temp.: 80℃~290℃ Insulation Voltage: > 3750V

Long Leads Liquid Ceramic Resistor Heater PTC Environmental Protection





Feature
1. With charcteristics of constant temperature
2. PTC hearter does not require temperature controlling system
3. It is safe when liquid is burnt out in liquid heating device
4. Not sensitive to voltage fluctuating
5. Wide operating voltage
6. Restore automatically after invalidation





How to Order:

In order to help you to get the exact model, please offer the following necessary info.:

1.Application of the PTC Heater pills:__________

2.Size of the PTC Heater pills:__________mm

3.Environment Tempeture:________ °c

4.Surface electrode : Silver or Aluminium

5.R value(25 °c):_____ ohm ±________%

6.Surfact Tempeture: ________ °c

7.Operating Voltage: ________ V

* Fill " * " items necessarily





Description:

1. submerged liquid heater application design

This is a submerged liquid heating (T-type PTC heater), the heater probe into the liquid container is heated, the liquid to obtain a constant temperature. PTC element used as the heat source, with fast heating, heat thermostat, self-adjusting power, heat conversion rate, anti-scale ability, even if no damage and so dry. It is widely used in various types of electric appliances in the home appliance industry.

Embedded liquid heater technology parameters:

Operating voltage: 6V-240V

Insulation voltage:> 3750V, through special insulation treatment, safe and reliable

Surface temperature: 100 ℃ ~ 290 ℃

Rated power: 20W ~ 800W

2. fluid liquid heater application design

     This is a fluid liquid heater (also called foot tub with a tubular heater PTC), our company is for the foot bath product launch another product, mainly used in high-end to the cycle of heating foot bath products above, with the use of easy installation, long life, easily damaged and other traditional heating materials (for example: quartz glass) unmatched features. Further dimensions can be customized to customer's actual installation size, product quality in a leading position in the peer.

Fluid liquid heater technical parameters:

Operating voltage: 6V-240V

Insulation voltage:> 3750V, through special insulation treatment, safe and reliable

Surface temperature: 80 ℃ ~ 290 ℃

Rated power: 20W ~ 2000W





Applications:



Application  Foot tub, home appliance industry of electric appliances





Competitive Advantage:

1. Leak-proof, excellent insulating property

2. High power

3. Safety and reliability

4. OEM for your design

5. Stable performance





Specifications:



  Operating voltage Insulation voltage Surface temperature Rated power
Embedded liquid heater 6V-240V > 3750V 100 ℃ ~ 290 ℃ 20W ~ 800W
Fluid liquid heater 6V-240V > 3750V 80 ℃ ~ 290 ℃ 20W ~ 2000W






Home Appliance Equipment PTC Water Heater with Long Leads Design



Long Leads Liquid Ceramic Resistor Heater PTC Environmental Protection
