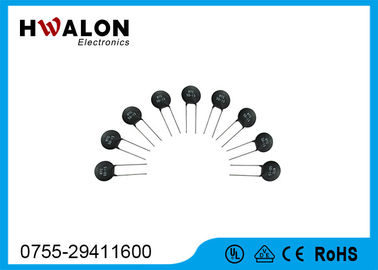

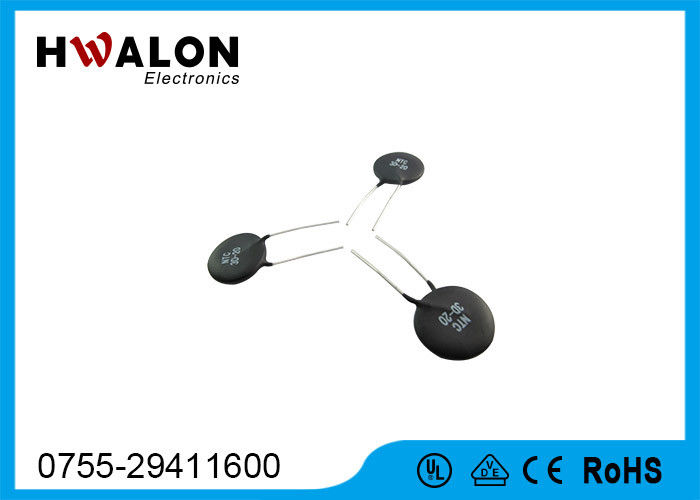

Professional MF72 Inrush Current Limiting Thermistor , NTC Power Thermistor

Professional MF72 Inrush Current Limiting Thermistor , NTC Power Thermistor

    • Professional MF72 Inrush Current Limiting Thermistor , NTC Power Thermistor
    • Professional MF72 Inrush Current Limiting Thermistor , NTC Power Thermistor
  • Professional MF72 Inrush Current Limiting Thermistor , NTC Power Thermistor

    Product Details:

    Place of Origin: CHINA
    Brand Name: Hwalon
    Certification: CE UL
    Model Number: MF72

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000pcs
    Packaging Details: 300pcs/bag
    Supply Ability: 100,000,000pcs/month
    Contact Now
    Detailed Product Description
    Application: UPS Power ,electronic Circuit ,ballast Lead Type: Straight/ Clubfoot/K Type
    Function: High Inrush Current Restriction Effect R Value: 0.7ohms-200ohms
    Max Current: 0.1A-13A Diameter: 5mm.9mm/11mm/13mm/15mm/20mm

    Professional MF72 Inrush Current Limiting Thermistor , NTC Power Thermistor







    Application of Inrush Current Limiter Thermistor :



    Power NTC thermistor LED driver board, Ballast,Conversion power,Switch mode power supply ,UPS Power ,Electronic circuit and Power supply circuit





    Competitive Advantage of Hwalon Inrush Current Limiter Thermistor:



    1. Small size, strong power and strong capability of surge current limited;

    2. Fast response;

    3. Big material constant, small remain resistance;

    4. Longevity of sercive, high reliability





    Specification for Inrush Current Limiter Thermistor 5D15:



    Zero Power Resistance @ 25℃ 5Ω±20%
    Approx. Resistance @ Max Current 6A
    Thermal Recovery Time Coefficient 20
    Thermal Dissipation Constant 76
    Operating Temperature -55~ +200 degree
    B value 2800k±10%





    Parameters of Inrush Current Limiter Thermistor :



    P/N R25(Ω) R tolerance Imax(A) IB(A) RS(Ω) δ(Mw/℃) τ(Sec)
    5D
    5D-5 5 ±20% 1 2 0.353 6 20
    10D-5 10 ±20% 0.7 1.4 0.771 6 20
    15D-5 15 ±20% 0.6 1.2 0.9 6 20
    22D-5 22 ±20% 0.6 1.2 0.9 6 20
    33D-5 33 ±20% 0.5 1 1.2 6 20
    47D-5 47 ±20% 0.4 0.8 1.5 6 20
    68D-5 58 ±20% 0.4 0.8 2.1 6 20
    200D-5 200 ±20% 0.1 0.2 6.259 6 20
    9D
    3D-9 3 ±20% 4 8 0.12 11 35
    4D-9 4 ±20% 3 6 0.19 11 35
    5D-9 5 ±20% 3 6 0.21 11 34
    6D-9 6 ±20% 2 4 0.315 11 34
    8D-9 8 ±20% 2 4 0.4 11 32
    10D-9 10 ±20% 2 4 0.458 11 32
    12D-9 1 ±20% 1 2 0.652 11 31
    16D-9 16 ±20% 1 2 0.802 11 30
    20D-9 20 ±20% 1 2 0.864 11 30
    22D-9 22 ±20% 1 2 0.95 11 30
    30D-9 30 ±20% 1 2 1.022 11 30
    33D-9 33 ±20% 1 2 1.124 11 30
    50D-9 50 ±20% 1 2 1.252 11 30
    60D-9 60 ±20% 0.8 1.6 1.502 11 30
    80D-9 80 ±20% 0.8 1.6 2.01 11 30
    120D-9 120 ±20% 0.8 1.6 3.015 11 30
    200D-9 200 ±20% 0.5 1 5.007 11 32
    400D-9 400 ±20% 0.2 0.4 9.852 11 32
    11D
    2.5D-11 2.5 ±20% 5 10 0.095 13 43
    3D-11 3 ±20% 5 10 0.1 13 43
    4D-11 4 ±20% 4 8 0.15 13 44
    5D-11 5 ±20% 4 8 0.156 13 45
    6D-11 6 ±20% 3 6 0.24 13 45
    8D-11 8 ±20% 3 6 0.255 14 47
    10D-11 10 ±20% 3 6 0.275 14 47
    12D-11 12 ±20% 2 4 0.462 14 48
    16D-11 16 ±20% 2 4 0.47 14 50
    20D-11 20 ±20% 2 4 0.512 15 52
    22D-11 22 ±20% 2 4 0.563 15 52
    30D-11 30 ±20% 1.5 3 0.667 15 2
    33D-11 33 ±20% 1.5 3 0.734 15 52
    50D-11 50 ±20% 1.5 3 1.021 15 52
    60D-11 60 ±20% 1.5 3 1.212 15 52
    80D-11 80 ±20% 1.2 2.4 1.656 15 52
    13D
    1.3D-13 1.3 ±20% 7 14 0.062 13 60
    1.5D-13 1.5 ±20% 7 14 0.073 13 60
    2.5D-13 2.5 ±20% 6 12 0.088 13 60
    3D-13 3 ±20% 6 12 0.092 14 60
    4D-13 4 ±20% 5 10 0.12 15 67
    5D-13 5 ±20% 5 10 0.125 15 68
    6D-13 6 ±20% 4 8 0.17 15 65
    7D-13 7 ±20% 4 8 0.188 15 65
    8D-13 8 ±20% 4 8 0.194 15 60
    10D-13 10 ±20% 4 8 0.206 15 62
    12D-13 12 ±20% 3 6 0.316 16 62
    15D-13 15 ±20% 3 6 0.335 16 60
    16D-13 16 ±20% 3 6 0.338 16 60
    20D-13 20 ±20% 3 6 0.372 16 65
    30D-13 30 ±20% 2.5 5 0.517 16 65
    47D-13 47 ±20% 2 4 0.81 17 65
    120D-13 120 ±20% 1.5 3 2.124 16 65
    15D
    1.5D-15 1.3 ±20% 8 16 0.048 18 68
    1.5D-15 1.5 ±20% 8 16 0.052 19 69
    3D-15 3 ±20% 7 14 0.075 18 76
    5D-15 5 ±20% 6 12 0.112 20 76
    6D-15 6 ±20% 5 10 0.155 20 80
    7D-15 7 ±20% 5 10 0.173 20 80
    8D-15 8 ±20% 5 10 0.178 20 80
    10D-15 10 ±20% 5 10 0.18 20 75
    12D-15 12 ±20% 4 8 0.25 20 75
    15D-15 15 ±20% 4 8 0.268 21 85
    16D-15 16 ±20% 4 8 0.276 21 70
    20D-15 20 ±20% 4 8 0.288 17 86
    30D-15 30 ±20% 3.5 7 0.438 18 75
    47D-15 47 ±20% 3 6 0.68 21 86
    120D-15 120 ±20% 2.5 5 1.652 22 87
    20D
    0.7D-20 0.7 ±20% 12 24 0.018 25 89
    1.3D-20 1.3 ±20% 9 18 0.037 24 88
    3D-20 3 ±20% 8 16 0.055 24 88
    5D-20 5 ±20% 7 14 0.087 23 87
    6D-20 6 ±20% 6 12 0.113 25 103
    8D-20 8 ±20% 6 12 0.142 25 105
    10D-20 10 ±20% 6 12 0.162 24 102
    12D-20 12 ±20% 5 10 0.195 24 100
    16D-20 16 ±20% 5 10 0.212 25 100





    RFQ:



      Question Answers
    1 What is the MOQ? 10000pcs.
    2 What is the payment terms? Negotiation.
    3 Can you accept special requirement? Yes,we can.We can design for your special requirement.
    4 Can you make the printing artworks(such as user manual/packing/rating label) in our language Yes,we can.We do OEM for a long time
    5 Can we order samples: Yes ,you can . Free samples are available





    High Quality Inrush Current Limiter Thermistor MF72 Power NTC Thermistor


    Professional MF72 Inrush Current Limiting Thermistor , NTC Power Thermistor



    If any questions or ideas,just please feel free to contact us, since we hold the opinion that any questions or trouble can be absolutely settled.



    It is our hope, by joint effort, to promote both business and friendship to our mutual advantage.
