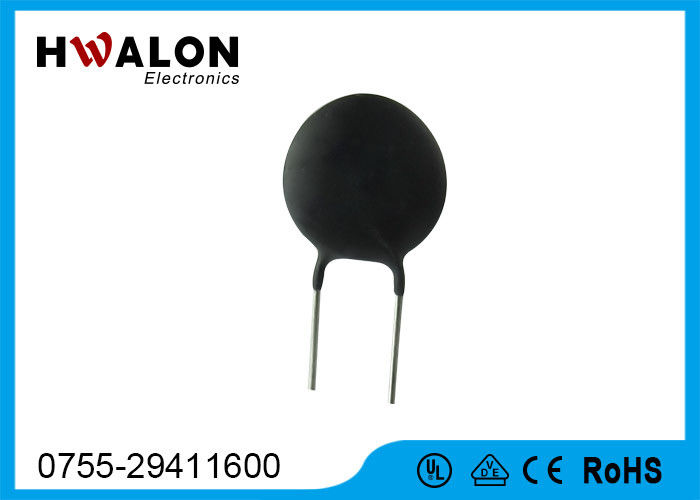

High Efficiency Inrush Current Resistor , NTC Thermistors For Inrush Current Limiting

Product Details:

Place of Origin:	CHINA
Brand Name:	Hwalon
Certification:	CE UL
Model Number:	MF72

Payment & Shipping Terms:

Minimum Order Quantity:	10000pcs
Packaging Details:	300pcs/bag
Supply Ability:	100,000,000pcs/month

Contact Now

Detailed Product Description

Place Of Origin:	Guangdong,China	Coating Type:	Epoxy Sealed
Function:	High Inrush Current Restriction Effect	R Value:	0.7ohms-200ohms
Application:	UPS Power ,electronic Circuit ,ballast	Lead Type:	Straight/ Clubfoot/K Type
High Light:	inrush current limiter resistor , NTC inrush current limiter

High Efficiency Inrush Current Resistor , NTC Thermistors For Inrush Current Limiting

Company Introduction:

15 years experience on PTC/NTC thermistor field.
Competitive price
On time handle over
Competitive price
Inquiry answered in 24hrs
Good team waiting here to serve for you
RoHS &UL compatible
OEM & ODM business accepted
Main target market:Europe, North America, Asia.

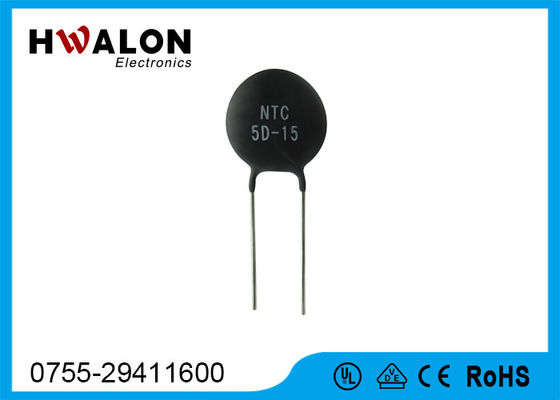

Specification for Inrush Current Limiter Thermistor 5D15:

Zero Power Resistance @ 25℃	5Ω±20%
Approx. Resistance @ Max Current	6A
Thermal Recovery Time Coefficient	20
Thermal Dissipation Constant	76
Operating Temperature	-55~ +200 degree
B value	2800k±10%

Application of Inrush Current Limiter Thermistor :

Power NTC thermistor

LED driver board, Ballast,Conversion power,Switch mode power supply ,UPS Power ,Electronic circuit and Power supply circuit

Competitive Advantage of Hwalon Inrush Current Limiter Thermistor:

1. Small size, strong power and strong capability of surge current limited;

2. Fast response;

3. Big material constant, small remain resistance;

4. Longevity of sercive, high reliability

Parameters of Inrush Current Limiter Thermistor :

P/N	R25(Ω)	R tolerance	Imax(A)	IB(A)	RS(Ω)	δ(Mw/℃)	τ(Sec)
5D
5D-5	5	±20%	1	2	0.353	6	20
10D-5	10	±20%	0.7	1.4	0.771	6	20
15D-5	15	±20%	0.6	1.2	0.9	6	20
22D-5	22	±20%	0.6	1.2	0.9	6	20
33D-5	33	±20%	0.5	1	1.2	6	20
47D-5	47	±20%	0.4	0.8	1.5	6	20
68D-5	58	±20%	0.4	0.8	2.1	6	20
200D-5	200	±20%	0.1	0.2	6.259	6	20
9D
3D-9	3	±20%	4	8	0.12	11	35
4D-9	4	±20%	3	6	0.19	11	35
5D-9	5	±20%	3	6	0.21	11	34
6D-9	6	±20%	2	4	0.315	11	34
8D-9	8	±20%	2	4	0.4	11	32
10D-9	10	±20%	2	4	0.458	11	32
12D-9	1	±20%	1	2	0.652	11	31
16D-9	16	±20%	1	2	0.802	11	30
20D-9	20	±20%	1	2	0.864	11	30
22D-9	22	±20%	1	2	0.95	11	30
30D-9	30	±20%	1	2	1.022	11	30
33D-9	33	±20%	1	2	1.124	11	30
50D-9	50	±20%	1	2	1.252	11	30
60D-9	60	±20%	0.8	1.6	1.502	11	30
80D-9	80	±20%	0.8	1.6	2.01	11	30
120D-9	120	±20%	0.8	1.6	3.015	11	30
200D-9	200	±20%	0.5	1	5.007	11	32
400D-9	400	±20%	0.2	0.4	9.852	11	32
11D
2.5D-11	2.5	±20%	5	10	0.095	13	43
3D-11	3	±20%	5	10	0.1	13	43
4D-11	4	±20%	4	8	0.15	13	44
5D-11	5	±20%	4	8	0.156	13	45
6D-11	6	±20%	3	6	0.24	13	45
8D-11	8	±20%	3	6	0.255	14	47
10D-11	10	±20%	3	6	0.275	14	47
12D-11	12	±20%	2	4	0.462	14	48
16D-11	16	±20%	2	4	0.47	14	50
20D-11	20	±20%	2	4	0.512	15	52
22D-11	22	±20%	2	4	0.563	15	52
30D-11	30	±20%	1.5	3	0.667	15	2
33D-11	33	±20%	1.5	3	0.734	15	52
50D-11	50	±20%	1.5	3	1.021	15	52
60D-11	60	±20%	1.5	3	1.212	15	52
80D-11	80	±20%	1.2	2.4	1.656	15	52
13D
1.3D-13	1.3	±20%	7	14	0.062	13	60
1.5D-13	1.5	±20%	7	14	0.073	13	60
2.5D-13	2.5	±20%	6	12	0.088	13	60
3D-13	3	±20%	6	12	0.092	14	60
4D-13	4	±20%	5	10	0.12	15	67
5D-13	5	±20%	5	10	0.125	15	68
6D-13	6	±20%	4	8	0.17	15	65
7D-13	7	±20%	4	8	0.188	15	65
8D-13	8	±20%	4	8	0.194	15	60
10D-13	10	±20%	4	8	0.206	15	62
12D-13	12	±20%	3	6	0.316	16	62
15D-13	15	±20%	3	6	0.335	16	60
16D-13	16	±20%	3	6	0.338	16	60
20D-13	20	±20%	3	6	0.372	16	65
30D-13	30	±20%	2.5	5	0.517	16	65
47D-13	47	±20%	2	4	0.81	17	65
120D-13	120	±20%	1.5	3	2.124	16	65
15D
1.5D-15	1.3	±20%	8	16	0.048	18	68
1.5D-15	1.5	±20%	8	16	0.052	19	69
3D-15	3	±20%	7	14	0.075	18	76
5D-15	5	±20%	6	12	0.112	20	76
6D-15	6	±20%	5	10	0.155	20	80
7D-15	7	±20%	5	10	0.173	20	80
8D-15	8	±20%	5	10	0.178	20	80
10D-15	10	±20%	5	10	0.18	20	75
12D-15	12	±20%	4	8	0.25	20	75
15D-15	15	±20%	4	8	0.268	21	85
16D-15	16	±20%	4	8	0.276	21	70
20D-15	20	±20%	4	8	0.288	17	86
30D-15	30	±20%	3.5	7	0.438	18	75
47D-15	47	±20%	3	6	0.68	21	86
120D-15	120	±20%	2.5	5	1.652	22	87
20D
0.7D-20	0.7	±20%	12	24	0.018	25	89
1.3D-20	1.3	±20%	9	18	0.037	24	88
3D-20	3	±20%	8	16	0.055	24	88
5D-20	5	±20%	7	14	0.087	23	87
6D-20	6	±20%	6	12	0.113	25	103
8D-20	8	±20%	6	12	0.142	25	105
10D-20	10	±20%	6	12	0.162	24	102
12D-20	12	±20%	5	10	0.195	24	100
16D-20	16	±20%	5	10	0.212	25	100

RFQ:

	Question	Answers
1	What is the MOQ?	10000pcs.
2	What is the payment terms?	Negotiation.
3	Can you accept special requirement?	Yes,we can.We can design for your special requirement.
4	Can you make the printing artworks(such as user manual/packing/rating label) in our language	Yes,we can.We do OEM for a long time
5	Can we order samples:	Yes ,you can . Free samples are available

High Quality Inrush Current Limiter Thermistor MF72 Power NTC Thermistor

High Efficiency Inrush Current Resistor , NTC Thermistors For Inrush Current Limiting 0

If any questions or ideas,just please feel free to contact us, since we hold the opinion that any questions or trouble can be absolutely settled.

It is our hope, by joint effort, to promote both business and friendship to our mutual advantage.
