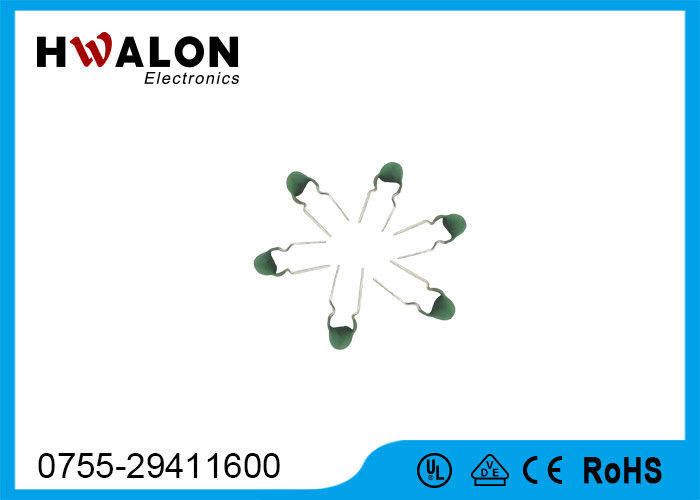

265V Green Inrush Current Limiter Thermistor Resistor For LED / Chargers

265V Green Inrush Current Limiter Thermistor Resistor For LED / Chargers

    • 265V Green Inrush Current Limiter Thermistor Resistor For LED / Chargers
  • 265V Green Inrush Current Limiter Thermistor Resistor For LED / Chargers

    Product Details:

    Place of Origin: China
    Brand Name: HWA
    Certification: RoHS, CQC

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000
    Packaging Details: bulk package
    Delivery Time: 15 days
    Payment Terms: T/T, Western Union
    Supply Ability: 1,000,000pcs/month
    Contact Now
    Detailed Product Description
    Place Of Origin: Guangdong Type: Thermal Resistor
    Rated Voltage: 12V~220V Max. Operating Voltage: 20V~265V
    Operating Temp. Range: -25℃~125℃ Restore Time: 60s
    Trip Current: 20mA~3600mA Non-trip Current: 10mA~1800mA
    Technology: Ceramic Composition Package Type: Surface Mount

    265V Green Inrush Current Limiter Thermistor Resistor For LED / Chargers​



    Applications:



    Switching power supply

    air-conditioner and other household appliances

    adapter

    LED control panel

    industry-controlling exchangers

    program exchanger

    overcurrent protection of terminals

    security unit

    microwave oven





    Description:



    1. Surges due to lighting strikes on or near to the line plant.

    2. Short-term induction of alternating voltage from adjacent power lines or railway systems, usually when these lines or systems occur fault.

    3. Direct contact between telephone lines and power lines.





    Specifications:



    265V Green Inrush Current Limiter Thermistor Resistor For LED / Chargers



    Part No. for your reference:



    No. Part no. Vmax (v) non-trip current (mA) @25 ℃ non-trip current (mA) @60 ℃ trip current (mA) @25℃ resistance( Ω ) ±25% Imax (A) switch temp. D(max) T(max) d
    1 H2PR151RH03LB265 265 22 15 45 150 0.2 80 ℃ ±7℃ 4.5 5.0 0.5
    2 H2PR101RH03LB250 250 25 18 55 100 0.2 80 ℃±7 ℃ 4.5 5.0 0.5
    3 H2PR70RH05LB250 250 50 30 100 70 0.3 80 ℃±7 ℃ 6.5 5.0 0.5
    4 H2PR121RH05LB265 265 30 20 60 120 0.3 80 ℃±7 ℃ 6.5 5.0 0.5
    5 H2PR101RH07LB265 265 50 30 100 100 0.6 80 ℃±7 ℃ 8.0 5.0 0.6
    6 H2PR12RH08LB250 265 120 70 220 12 0.8 80 ℃±7 ℃ 9.0 5.0 0.6
    7 H2PR25RH08LB265 265 85 50 170 25 0.8 80 ℃±7 ℃ 9.0 5.0 0.6
    8 H2PR35RH08LB265 265 80 50 150 35 0.8 80 ℃±7 ℃ 9.0 5.0 0.6
    9 H2PR50Rh08LB265 265 60 40 120 50 1.0 80 ℃±7 ℃ 9.0 5.0 0.6
    10 H2PR70RH03HE250 250 45 35 90 70 0.1 100 ℃±7 ℃ 4.5 5.0 0.5
    11 H2PR101RH03HE250 250 40 30 80 100 0.2 100 ℃±7 ℃ 4.5 5.0 0.5
    ... ...





    Competitive Advantage:



    1. PTC thermistor for overcurrent and overload protection is a million-time device of automatic protection, recoverability, using repeatedly, and no trigger, noice or sparks.

    2. When PTC is in the normal state, the resistance is too low to affect the regular work of the protected circuit such as the voltage transformer's primary and secondary loops.

    3. When the circuit is in disorder, the PTC will generate heat suddenly, and the resistance value will go up to the high state, which make the circuit in the state of relatively "reaking up" to protect the circuit.



    high quality PTC thermistor for overcurrent and overload protection in charges, household appliances and LED control panel



    265V Green Inrush Current Limiter Thermistor Resistor For LED / Chargers
