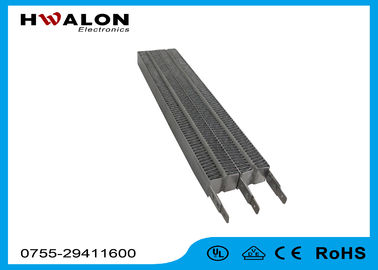

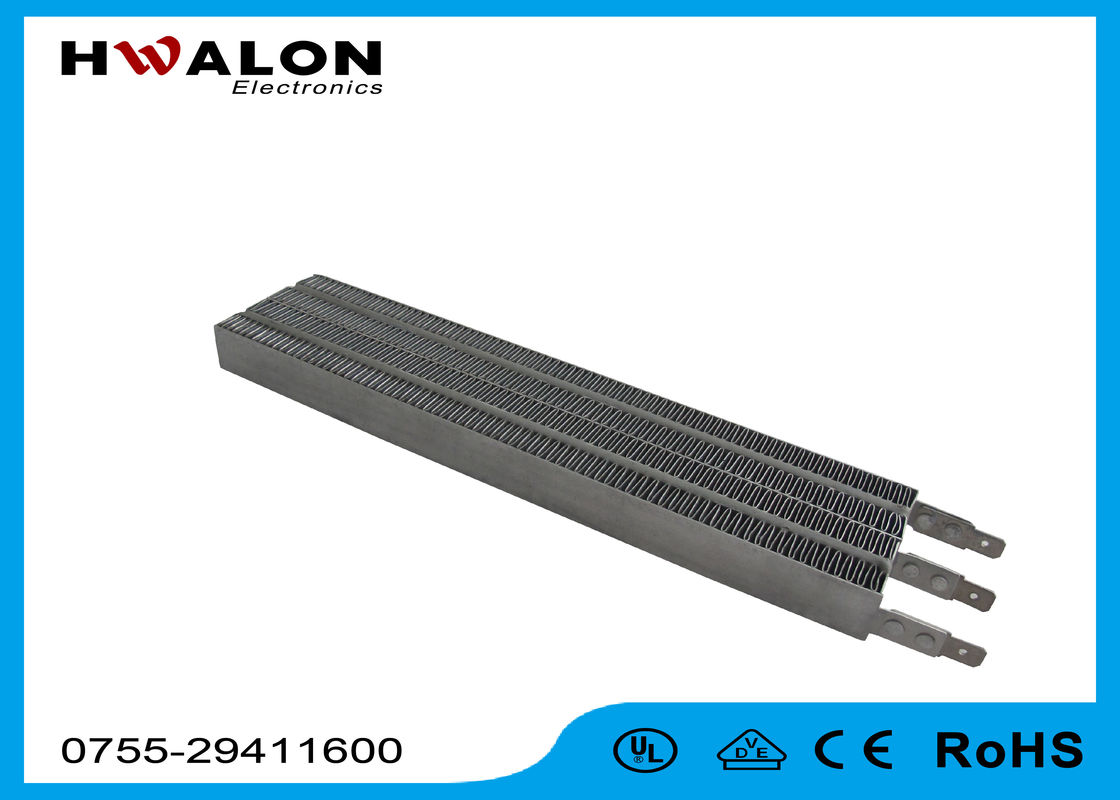

High Power PTC Thermistor For Air Conditioner / Adhesive Sealing Machine

Product Details:

Place of Origin:	China
Brand Name:	HWA
Certification:	RoHS
Model Number:	PR4

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	Standard CTN package or according to customer’s requirement
Delivery Time:	15 to 20 days
Payment Terms:	T/T, Western Union
Supply Ability:	100,000pcs

Contact Now

Detailed Product Description

Terminal No.:	3 Terminals	Model No.:	PR4
Material:	Ceramic, Aluminum	Dimension:	Customized
Extra-high-heating-efficiency:	Fin Pitch: 1.2m/m, 1.68m/m	Material Of Heat Sink:	Aluminum
Extra-low-air-resistance:	Fin Pitch: 2.0m/m, 2.6m/m	Power:	50W~2000W
High Light:	PTC electric heater , ceramic air heater

High Power PTC Thermistor For Air Conditioner / Adhesive Sealing Machine

Description:

1. Does not cause oxygen shortage when used for a long time;

2. Internal safety-fuse protection;

3. Current will automatically cut-off to prevent abnormal large current or other external factors causing safety concerns;

4. Water-proof, no electricity leakage or cause short circuit;

5. Heating power and self-regulating function is in correlation to the heat dissipation rate.

6. The higher the temperature, the more power efficient;

7. When heated under no airflow, does not crack, burst or burn

Specifications:

PTC Air Heater Models

Models

Dimension(mm)

Aluminum tubes

Fin width(mm)

Fin pitch(mm)

26*45*L

L:70, 93, 106, 128, 150, 185, 202

2.0(N)

Input current: 2A to 30A

Rated voltage: 24V to 240V

Feature

1. With charcteristics of constant temperature

2. PTC hearter does not require temperature controlling system

3. It is safe when liquid is burnt out in liquid heating device

4. Not sensitive to voltage fluctuating

5. Wide operating voltage

6. Restore automatically after invalidation

How to Order:

In order to help you get the exact model, please offer the following necessary info.:

1. application of the PTC heater:_________

2. working environment of PTC heater:________

3. the range of operation temperature:___°c to ___°c

*4. dimension and the drawing of the heater

*5. dimension: _____mm* _____mm* _____mm

*6. power: _____W

*7. voltage: _____V

*8. wind speed: _____m/s

*9. insulated or not insulated

* Fill " * " items necessarily.

Competitive Advantage:

1. No thermostat required;

2. Self regulating heating control;

3. Long service life;

4. High reliability, impossible to overheat.

5. Very low air resistance, high efficiency;

6. No smell, no radiation;

Applications:

applications

hair dryer, clothes dryer, iron, laminating machine, adhesive sealing machine, 3C products and other outdoor electronic devices, air conditioner, hand dryer
