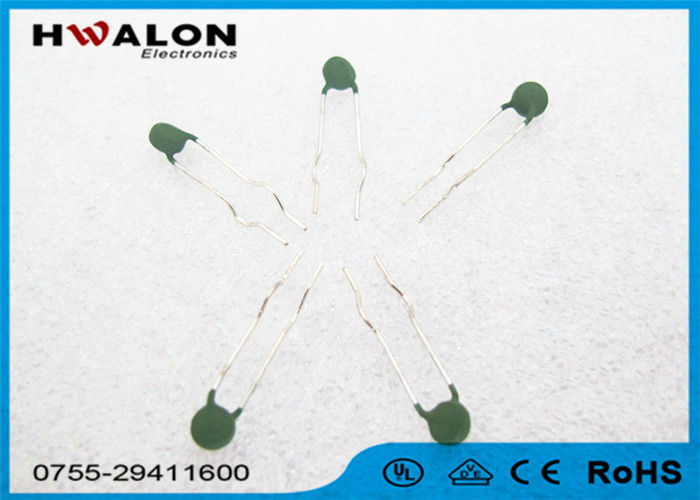

Silicone PTC Electronic Component With Kinked Leads For LED Lighting

Silicone PTC Electronic Component With Kinked Leads For LED Lighting

Silicone PTC Electronic Component With Kinked Leads For LED Lighting

Product Details:

Place of Origin: China
Brand Name: HWA
Certification: RoHS
Model Number: PR6

Payment & Shipping Terms:

Minimum Order Quantity: 10,000pcs
Packaging Details: CTN package, according to customer’s requirement if necessary
Delivery Time: 10 to 15 days
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs
Contact Now
Detailed Product Description
Material: Silicone Color: Green
Series: Temperature Controlling Max Voltage: 30V
Switch Temp.: 40 Degree Protection Temp.: 60 Degree
R25℃: 100 Ohm R(Ts-15℃): 330 Ohm
Rs: 470 Ohm Max Current: 100mA

Silicone PTC Overheat Protection Thermistor With Kinked Leads For LED Lighting





Part No. Selection:



part no. max. voltage (V) switch temp. ( ℃) protection temp. ( ℃) R25 ℃ ( Ω ) max Rs-15 ℃ ( Ω) Rs ( Ω) max current(mA)
H6PR101R60 30 40 60 100 330 470 100
H6PR101R70 30 50 70 100 330 470 100
H6PR101R80 30 60 80 100 330 470 100
H6PR101R90 30 70 90 100 330 470 100
H6PR101R100 30 80 100 100 330 470 100
H6PR101R110 30 90 110 100 330 470 100
H6PR101R120 30 100 120 100 330 470 100
H6PR101R130 30 110 130 100 330 470 100
H6PR331R60 30 40 60 330 1500 2200 100
H6PR331R70 30 50 70 330 1500 2200 100
H6PR331R80 30 60 80 330 1500 2200 100
H6PR331R90 30 70 90 330 1500 2200 100
H6PR331R100 30 80 100 330 1500 2200 100
H6PR331R110 30 90 110 330 1500 2200 100





If you need any other parameters that you cannot find in our part no. list, pls offer your parameters to me, we can OEM for you.





Size:



Silicone PTC Electronic Component With Kinked Leads For LED Lighting



Advantages:

1. protection temperature varies from 30 degree to 150 degree;

2. performance of the PTc is stable;

3. size is small;

4. installment is simple and convinient;

5. no need to reset after over-heat protection;

6. action time is short;

7. we can offer equivalent PTC thermistor of TDK & Thinking.





Description and features:



  • Over-heat protection thermistor is a million-time device of automatic protection, recoverability and can be used repeatedly;
  • No trigger, noice or sparks;
  • Two shapes for your reference, lead type and surface mount type;
  • Lead material: tinned copper straight lead;
  • Welding material: tin-silver alloy;
  • Electrode material: silver;
  • Encapsulation material: silicone, green, flammability 94V-0



Applications:



LED control panel

switching power supply

electric oven

Transformer

LED lighting





Silicone PTC Overheat Protection Thermistor With Kinked Leads For LED Lighting



Silicone PTC Electronic Component With Kinked Leads For LED Lighting
