| Area 3, block B, huafeng huayuan science&technology innovation park, bao'an district, shenzhen, guangdong, china | market@hwalon.com |
 |
| Place of Origin: | CHINA |
| Brand Name: | Hwalon |
| Certification: | CE UL |
| Model Number: | PR4 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | by negotiation |
| Packaging Details: | Standard CTN package or according to customer's requirement |
| Delivery Time: | 25 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000pcs/month |
| Surface Temperature: | 100-290℃ | Power: | 20-800W |
|---|---|---|---|
| Rated Voltage: | 6-240V | Insulation Voltage: | ＞3750V |
| Lead Length: | Customized | ||
| High Light: | Ceramic Water Heater,PTC Element Heater |
||

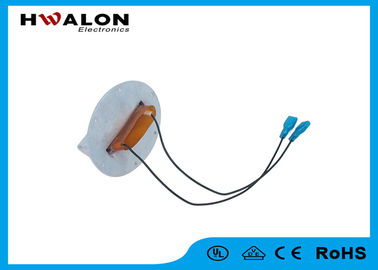

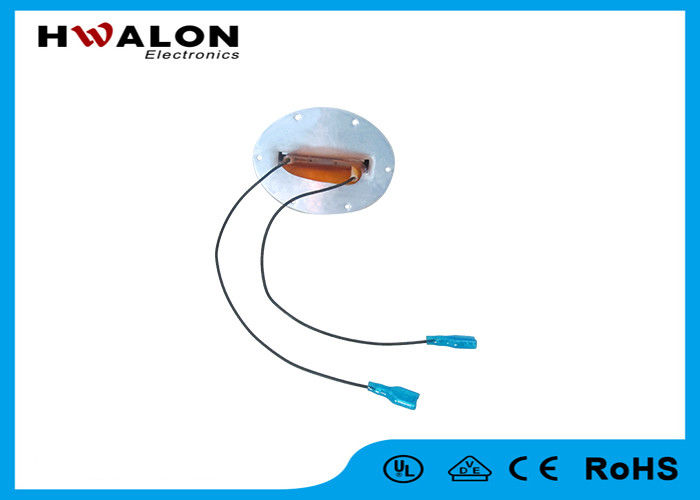

Instant Ptc Water Heater , 20-800w Electronic Component Ptc Heater For Foot Tub
Competitive Advantage:
1. Leak-proof, excellent insulating property
2. High power
3. Safety and reliability
4. OEM for your design
5. Stable performance
Specifications:
| Operating voltage | Insulation voltage | Surface temperature | Rated power | |
| Embedded liquid heater | 6V-240V | > 3750V | 100 ℃ ~ 290 ℃ | 20W ~ 800W |
| Fluid liquid heater | 6V-240V | > 3750V | 80 ℃ ~ 290 ℃ | 20W ~ 2000W |
Description:
1. Submerged liquid heater application design
This is a submerged liquid heating (T-type PTC heater), the heater probe into the liquid container is heated, the liquid to obtain a constant temperature. PTC element used as the heat source, with fast heating, heat thermostat, self-adjusting power, heat conversion rate, anti-scale ability, even if no damage and so dry. It is widely used in various types of electric appliances in the home appliance industry.
Embedded liquid heater technology parameters:
Operating voltage: 6V-240V
Insulation voltage:> 3750V, through special insulation treatment, safe and reliable
Surface temperature: 100 ℃ ~ 290 ℃
Rated power: 20W ~ 800W
2.Fluid liquid heater application design
This is a fluid liquid heater (also called foot tub with a tubular heater PTC), our company is for the foot bath product launch another product, mainly used in high-end to the cycle of heating foot bath products above, with the use of easy installation, long life, easily damaged and other traditional heating materials (for example: quartz glass) unmatched features. Further dimensions can be customized to customer's actual installation size, product quality in a leading position in the peer.
Fluid liquid heater technical parameters:
Operating voltage: 6V-240V
Insulation voltage:> 3750V, through special insulation treatment, safe and reliable
Surface temperature: 80 ℃ ~ 290 ℃
Rated power: 20W ~ 2000W
How to Order:
1. Application of the PTC heater : _______
2. Working environment of the PTC heater :______
3. The range of operating temperature:___℃to ____℃
*4. Dimension of the PTC heater: _______
*5. R(25) Value :_____
*6. Surface Temperature:_____
*7. Power:_____
* Fill “*” items necessarily
