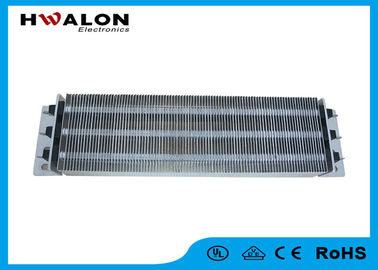

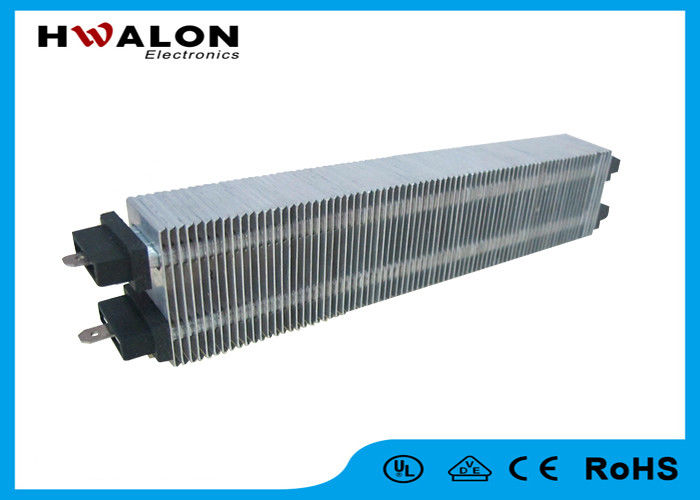

Custom-made Ventilation Air Heating Coil Tube Air Conditioner 1000w For Clothes Dryer

Custom-made Ventilation Air Heating Coil Tube Air Conditioner 1000w For Clothes Dryer
Custom-made Ventilation Air Heating Coil Tube Air Conditioner 1000w For Clothes Dryer Custom-made Ventilation Air Heating Coil Tube Air Conditioner 1000w For Clothes Dryer

Large Image :  Custom-made Ventilation Air Heating Coil Tube Air Conditioner 1000w For Clothes Dryer

Product Details:
Place of Origin: CHINA
Brand Name: Hwalon
Certification: CE UL
Model Number: PR4
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: by negotiation
Packaging Details: 1000pcs/carton
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100,000pcs/month
Detailed Product Description
Power: 800-2500W Rated Voltage: 50-270v
Resistance: 8-3500ohm Material: Aluminium
Application: Home Applicance Size: Custom-made
High Light:

electric PTC heater

,

ceramic air heater





Ventilation Air Heating Coil Tube Air Conditioner 1000w For Clothes Dryer



Description:



PTC fan heating element assembled with electrode plates and heat sink fins are dynamic heating element fins ensures a homogeneous heat transfer adjustable with air flowing volume. The design allows an automatic regulation of the of the heating power within certain ranges.



Specifications:



Sheath Material: Aluminium

Voltage: customized

Power: customized( (800W-2500W)

Power tolerance: -5%-0%

Resistance wire: ceramic

Size&Diamension: Customized

Leakage current is less than 0.5mA

Hi-pot (AC)test:3750V AC/2 seconds

Finsish type:the heating element only or the assembly of heating element,

Plastic rack,lead wire,temperature controller and fuse protector.



Features:



1. It is safe.

2. It has high power.

3. It has high reliability.

4. It is automatic temperature control

5. It doesn't turn to red or get fire when it is working.

6. It uses wide range of ambient temperature.

7. It can be manufactured to have different fixed temperatures at which the dramatic resistance change take place...

8. Even with the regard to voltage changes, the constant temperature mechanism will be effective.

9. It can be an effective low cost solution.

10. It has a virtually unlimited service life, and do not generate RFI noise.

11. Dynamic heating output and self-regulating function in correlation to the ambient temperature.



Application:



· Air-heating, wind-warming equipment, air-conditioner

· Physical treatment, massage apparatus, biology heating

· mosquito-driving apparatus

· water-boiling equipment

· heating board

· shoe-drying apparatus

· hair curler, hair straightner



Typical Application:



· Fan heating element for ceramic heater fan, hair drier, hand drier, laundry drier, etc.

· Heating plates for coffee makers, steam irons, cooking devices, facial sauna, humidier, etc.

· Tube heating element for curling irons, was warmer, glue gun and dehumidier, etc.

· Ohter designs of heating element can be used for mosquito repellent liquid warmer, contro cevices, etc.



Specifications:



no. part No. resistance surf. temp. max voltage length width thickness
1 H4PR202RA24K255 500-3000 255 270 36 6 2.3
2 H4PR140RA24K280 8-20 280 50 24 15 1.4
3 H4PR551RA24K280 300-800 280 140 24 15 2.5
4 H4PR202RA24K280 800-3500 280 270 24 15 2.5
5 H4PR202RA24K290 500-3000 290 270 36 6 2.5



Dimentions:

· 5×4mm~35×20mm

· Shapes: square, round, ring

· As shown in detailed pictures

· Customized



Pls advise when inquiry:


1.Type of Heater
2. Wattage and Voltage
3. Diamensions

4. Drawing required for special configuration

5.Working environment

6.Trial or sample order is also welcome.



FAQ:



Question Answers
What is the MOQ? 1000pcs.
What is the payment terms? Negotiation.
Can you accept special requirement? Yes,we can.We can design for your special requirement.
Can you make the printing artworks(such as user manual/packing/rating label) in our language



Yes,we can.We do OEM work for long time

Can we order samples: Yes ,you can . Free samples are available
