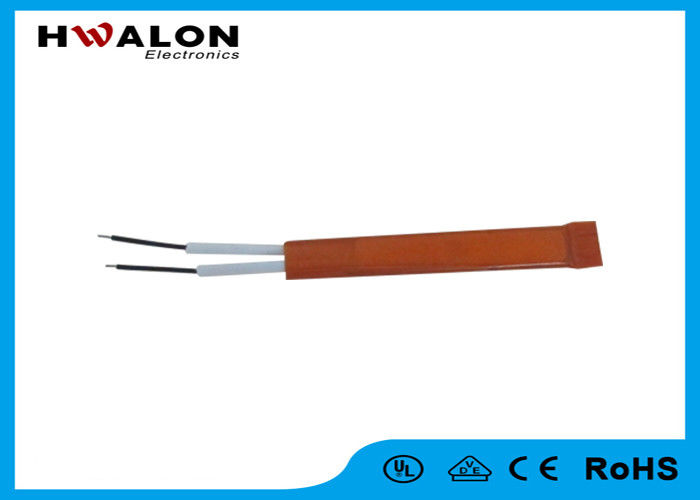

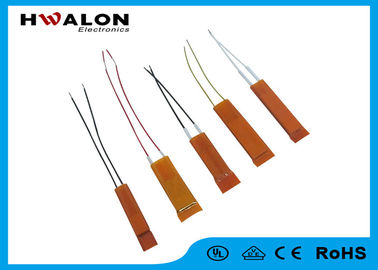

12V Ceramic PTC Air Heater Ceramic Resistor For Electric Boiling Water Kettle
  • name
  • name

12V Ceramic PTC Air Heater Ceramic Resistor For Electric Boiling Water Kettle

MOQ: 1000pcs
Price: by negotiation
Standard Packaging: 1000pcs/carton
Delivery Period: 7-10 working days
Payment Method: T/T, Western Union
Supply Capacity: 100,000pcs/month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Hwalon
Certification
CE UL
Model Number
PR4
Surface Temperature:
70℃-300℃
Power:
80-300W
Length:
15-95mm
Width:
5-45mm
Thickness:
2.8-3.6mm
Rated Voltage:
12-240V AC/DC Or Customized
Resistance:
10Kohms
Package Type:
Throught Hole
Type:
Thermal Thermistor
Highlight:

ptc heater element

,

ceramic heater element

Product Description



12V ptc ceramic air heater Ceramic Resistor For electric boiling water kettle



PTC heating elements:


1. Working Voltage rang: 12-240V AC/DC or customized
2. Surface Temperature: 70°C~300°C , the temperature tolerance less than ±5°C.
3. The lead wire, fiber glass sleeve, insulate film and shells can customized according to per customers requirements.



Unlike traditional heating elements that use a resistance wire such as Nichrome to generate heat,PTC heating elements are made as ceramic stones, ase on barium titanate.

They have unique characteristics as semeconductors and their ferro-electric propertise can be precisely determined during their design.



Operating voltage

12-240V AC/DC or customized

Heating element

PTC resistor, temperature limiting

Heater body

aluminium, anodised

Mounting

screw fixing

Fitting position

variable

Operating temperature

-45 to +70 °C (-49 to +158 °F)

Operating/Storage humidity

max. 90 % RH (non-condensing)





Dimentions:

12V Ceramic PTC Air Heater Ceramic Resistor For Electric Boiling Water Kettle 0



Parameters of battery powered heating element :



Length Width Thickness Surface temperature Withstand Voltage Rate
/mm /mm /mm /°C /V voltage
30 13 3.3 250 3750 100~240
48 10 3.2 255 3750 100~240
60 15 3.2 255 3750 100~240
60 13 3.2 260 3750 100~240
60 13 3.2 260 3750 100~120
24 15 3.2 260 3750 100~240
48 15 3.2 260 3750

100~240







Typical Applications:



1. Heater fan

2. Heating Plates

3. Drying Machines

4. Hair Dryer

5. Foot Warmer

6. Diesel Heater

7. Hot melt glue gun


How to Order:

1. Application of the PTC heater : _______
2. Working environment of the PTC heater :______
3. The range of operating temperature:___℃to ____℃
*4. Dimension of the PTC heater: _______
*5. R(25) Value :_____
*6. Surface Temperature:_____
*7. Power:_____
* Fill “*” items necessarily



12V Ceramic PTC Air Heater Ceramic Resistor For Electric Boiling Water Kettle 1
