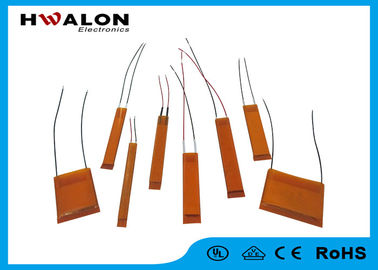

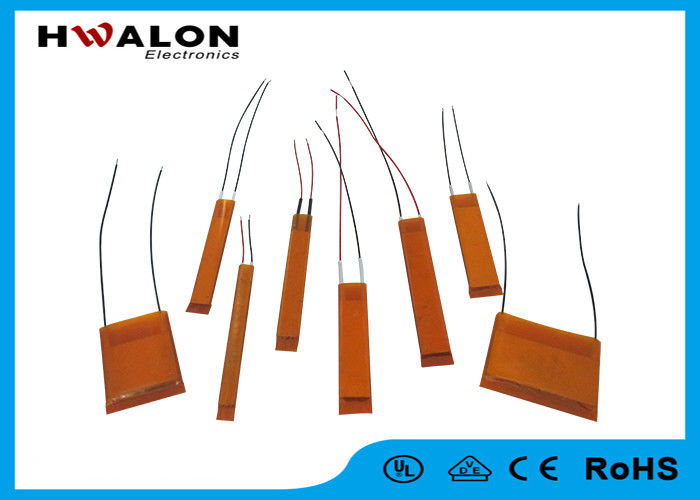

CE Thermostat PTC Aluminum Electric Heater Plate / Heating Plate Hair Censer

CE Thermostat PTC Aluminum Electric Heater Plate / Heating Plate Hair Censer

CE Thermostat PTC Aluminum Electric Heater Plate / Heating Plate Hair Censer

Product Details:

Place of Origin: CHINA
Brand Name: Hwalon
Certification: CE UL
Model Number: PR4

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: by negotiation
Packaging Details: 1000pcs/carton
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs/month
Contact Now
Detailed Product Description
Surface Temperature: 70℃-300℃ Power: 80-300W
Length: 15-95mm Width: 5-45mm
Thickness: 2.8-3.6mm Rated Voltage: 12-240V AC/DC Or Customized
Resistance: 10Kohms Package Type: Throught Hole
Type: Thermal Thermistor

AC DC 12V 80 degree -220 degrees Thermostat PTC Aluminum Electric heater plate Heating plate Hair censer

Specifications

1.safety and higher reliable
2.give out heat continuously
3.keep steady power
4.self-control the temperature



Parameters of battery powered heating element :



length width thickness temperature voltage the length of the cable
70mm 13mm 3.1mm 275 Centidegree 220V/110V 150mm(length as per your request)
70mm 12mm 3.1mm 255 Centidegree 220V/110V 155mm(length as per your needed)
64mm 12mm 2.9mm 230 Centidegree 220V/110V 250MM(length as per your interested in)
52mm 12mm 3.1mm 180 Centidegree 220V/110V 150mm(length as per your request)
35mm 10mm 2.8mm 220 Centidegree 220V/110V 55mm( as per your interested in )
24mm 8mm 3.1mm 160 Centidegree 220V/110V 120mm( length as per your needed)
24mm 6mm 2.6mm

150

Centidegree

220V/110V 125mm(length as per your request)




Typical Applications:



1. shoe-drying apparatus ,hair curling equipment

2. physical treatment, massage apparatus,biology heating

3. air-heating,wind-warming equipment ,cold and warm air-conditioner

4. mosquito-driving apparatus,boiled-water equipment,heating board



PTC heating elements:


1. Working Voltage rang: 12-240V AC/DC or customized
2. Surface Temperature: 70°C~300°C , the temperature tolerance less than ±5°C.
3. The lead wire, fiber glass sleeve, insulate film and shells can customized according to per customers requirements.



Unlike traditional heating elements that use a resistance wire such as Nichrome to generate heat,PTC heating elements are made as ceramic stones, ase on barium titanate.

They have unique characteristics as semeconductors and their ferro-electric propertise can be precisely determined during their design.



R25 Value 1-5000ohms
PTC Size 24*15mm
Rated Voltage 3.6-240V
Withstand Voltage 400-900V
Surface Temp. 50-300℃
Operating Temp. -25~125℃


How to Order:

1. Application of the PTC heater : _______
2. Working environment of the PTC heater :______
3. The range of operating temperature:___℃to ____℃
*4. Dimension of the PTC heater: _______
*5. R(25) Value :_____
*6. Surface Temperature:_____
*7. Power:_____

* Fill “*” items necessarily
