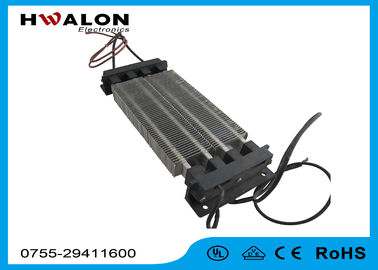

Silver Gray 220C Degree Insulated PTC Ceramic Air Heater Fan Heater With Frame

Silver Gray 220C Degree Insulated PTC Ceramic Air Heater Fan Heater With Frame

Silver Gray 220C Degree Insulated PTC Ceramic Air Heater Fan Heater With Frame

Product Details:

Place of Origin: CHINA
Brand Name: Hwalon
Certification: CE UL
Model Number: PR4

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: by negotiation
Packaging Details: 1000pcs/carton
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 100000/month
Contact Now
Detailed Product Description
Package Type: Throught Hole Power: 850w
Shape: Plate Material: Ceramic, Aluminum
Warranty: 1 Year Color: Silver Gray
Sheath Material:: Aluminium Resistance:: 1Ω-5000Ω
Size: 72*28*15 Application: Home Applicance

Silver Gray 220C Degree Insulated PTC Ceramic Air Heater Fan Heater With Frame



Detailed parameters:



Length(mm) Width(mm) Thickness(mm) Insulation voltage(V) Switch temperature(°C) Fan speed(m/s) Power(w)
      72 28 15 3750 250 5 220



Features



1. Restore automatically after invalidation
2.

Can use in wide range of ambient temperature

3. The higher the temperature, the more power efficient
4.

Does not crack, burst or burn when heated under no airflow;

5. PTC hearter does not require temperature controlling system
6.

Heating power(W) and self-regulating function is in correlation to the heat dissipation rate.



Notice

1. the use of voltage 6 ~ 600V, AC, DC can be customized.

2. other switch temperature can also be customized, power and temperature difference (ΔT = switch temperature - ambient temperature) is proportional to.

3. can be in accordance with customer requirements of the power, air temperature, size manufacturing; the greater the area of the hair, the greater the thickness, the greater the wind speed, the lower the inlet temperature, the greater the power; table nominal power 5m / s wind speed, 25 ℃ into the air temperature test conditions of power, no wind when the power is only about 1/10 nominal; in order to increase the power density, can also be made of encrypted structure.


Applications



applications

coffee makers, steam irons, cooking devices, facial sauna, humidifier

Packing:

Each product will be packed in carton.

The outer cartons of the goods, which white plastic strap is pasted, to keep from busting out once the goods is facing creaking and striking.

In general, the goods can be sent to you by Express,by sea,any way you like.



How to Order



1. Application of the PTC heater : _______

2. Working environment of the PTC heater :______

3. The range of operating temperature:___℃to ____℃

*4. Dimension of the PTC heater: _______

*5. R(25) Value :_____

*6. Surface Temperature:_____

*7. Rated Voltage:_____

*8. Need insulated or not :_____

* Fill “*” items necessarily



Shipping


1. FedEx/DHL/UPS/TNT for samples, Door-to-Door
2. By Air or by Sea for batch goods, for Airport/ Port receiving
3. Customers specifying freight forwarders or negotiable shipping methods
4. Delivery Time: 3-5 days for samples; 7-10 days for batch goods



Our Advantages



1. Aggressive price

2. Rohs certification

3. Excellent pre & after sale service

4. New and Original

5. Faster lead time

6.Goods In stock

7.As per your application and requirements, product can be customized to supply

8.Privide OEM, CEM
