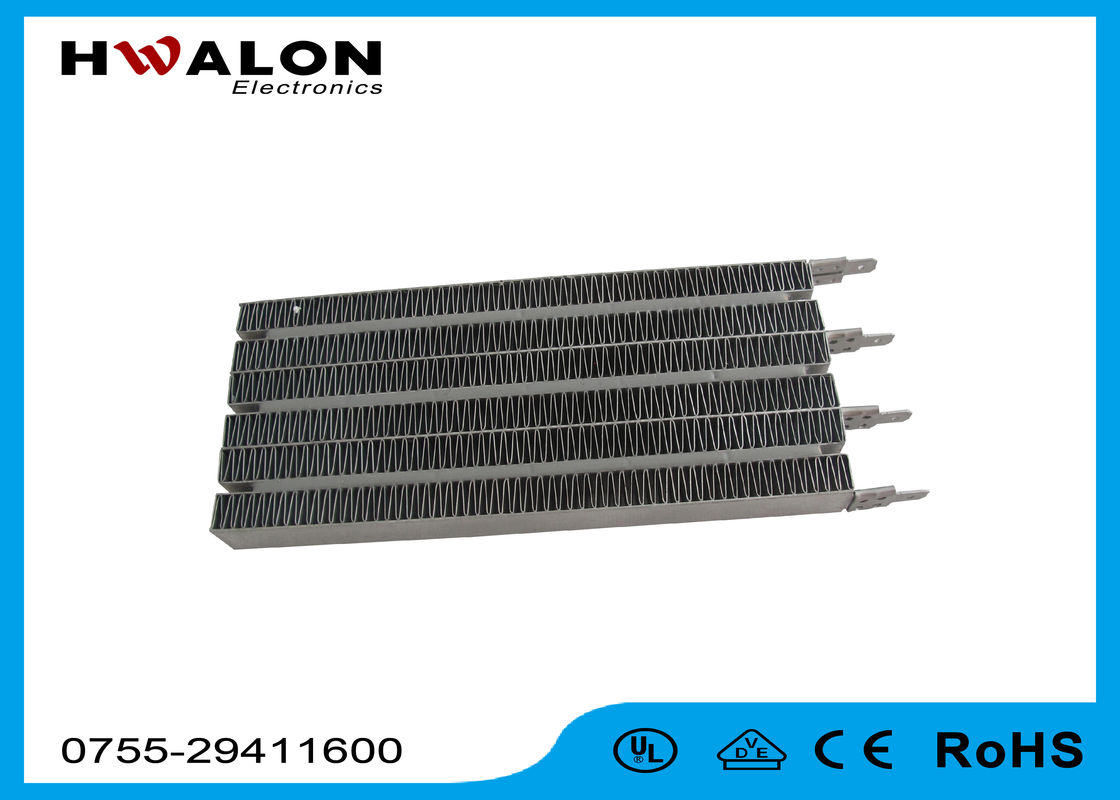

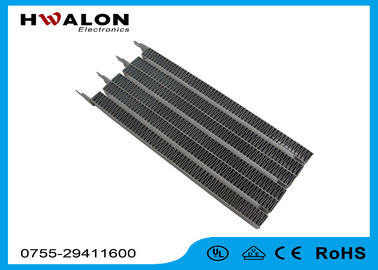

110 / 240 Volt Silver Gray Ceramic Air Heater PTC Ceramic Thermostat Heaters

110 / 240 Volt Silver Gray Ceramic Air Heater PTC Ceramic Thermostat Heaters

    • 110 / 240 Volt Silver Gray Ceramic Air Heater PTC Ceramic Thermostat Heaters
    • 110 / 240 Volt Silver Gray Ceramic Air Heater PTC Ceramic Thermostat Heaters
  • 110 / 240 Volt Silver Gray Ceramic Air Heater PTC Ceramic Thermostat Heaters

    Product Details:

    Place of Origin: CHINA
    Brand Name: Hwalon
    Certification: CE UL
    Model Number: PR4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: by negotiation
    Packaging Details: 1000pcs/carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 100000/month
    Contact Now
    Detailed Product Description
    Package Type: Throught Hole Color: Silver Gray
    Shape: Plate Power: 240w
    Sheath Material: Aluminium Resistance:: 1Ω-5000Ω
    Warranty: 1 Year Size: 72*23*15
    Application: Home Applicance Power Source: Electric

    110 / 240 Volt Silver Gray Ceramic Air Heater PTC Ceramic Thermostat Heaters



    Detailed parameters



    Length(mm) Width(mm) Thickness(mm) Insulation voltage(V) Switch temperature(°C) Fan speed(m/s) Power(w)
          72 23 15 3750 250 5 240



    Description


    1. Does not cause oxygen shortage when used for a long time.
    2. Internal safety-fuse protection.
    3. Current will automatically cut-off to prevent abnormal large current or other external factors causing safety concerns.
    4. Water-proof, no electricity leakage or cause short circuit.
    5. Heating power and self-regulating function is in correlation to the heat dissipation rate.
    6. The higher the temperature, the more power efficient.
    7. When heated under no airflow, does not crack, burst or burn.



    Advantage



    1. It is safe when liquid is burnt out in liquid heating device

    2. With charcteristics of constant temperature

    3. Not sensitive to voltage fluctuating

    4. Restore automatically after invalidation

    5. Wide operating voltage



    Notice


    1. PTC heater do not be damaged without air blowing, but the power is very low.

    2. When PTC is used in very low ambient temperature, it have to be special designed.

    3. The power could be adjusted by air blowing speed; or it could be adjusted by voltage; or changing the number of heaters.

    4. Low air resistance air heater, heat sink density is low, less wind resistance, noise is also smaller, but the power density is smaller than the general ripple.



    Applications



    applications

    air conditioning, air curtain, ptc heaters, dryers, hand dryer, drying room equipment, large industrial air duct heating

    Packing:

    Each product will be packed in carton.

    The outer cartons of the goods, which white plastic strap is pasted, to keep from busting out once the goods is facing creaking and striking.

    In general, the goods can be sent to you by Express,by sea,any way you like.



    How to Order



    1. Application of the PTC heater : _______

    2. Working environment of the PTC heater :______

    3. The range of operating temperature:___℃to ____℃

    *4. Dimension of the PTC heater: _______

    *5. R(25) Value :_____

    *6. Surface Temperature:_____

    *7. Rated Voltage:_____

    *8. Need insulated or not :_____

    * Fill “*” items necessarily



    Our Advantages



    1. Aggressive price

    2. Rohs certification

    3. Excellent pre & after sale service

    4. New and Original

    5. Faster lead time

    6.Goods In stock

    7.As per your application and requirements, product can be customized to supply

    8.Privide OEM, CEM



    Shipping


    1. FedEx/DHL/UPS/TNT for samples, Door-to-Door
    2. By Air or by Sea for batch goods, for Airport/ Port receiving
    3. Customers specifying freight forwarders or negotiable shipping methods
    4. Delivery Time: 3-5 days for samples; 7-10 days for batch goods
