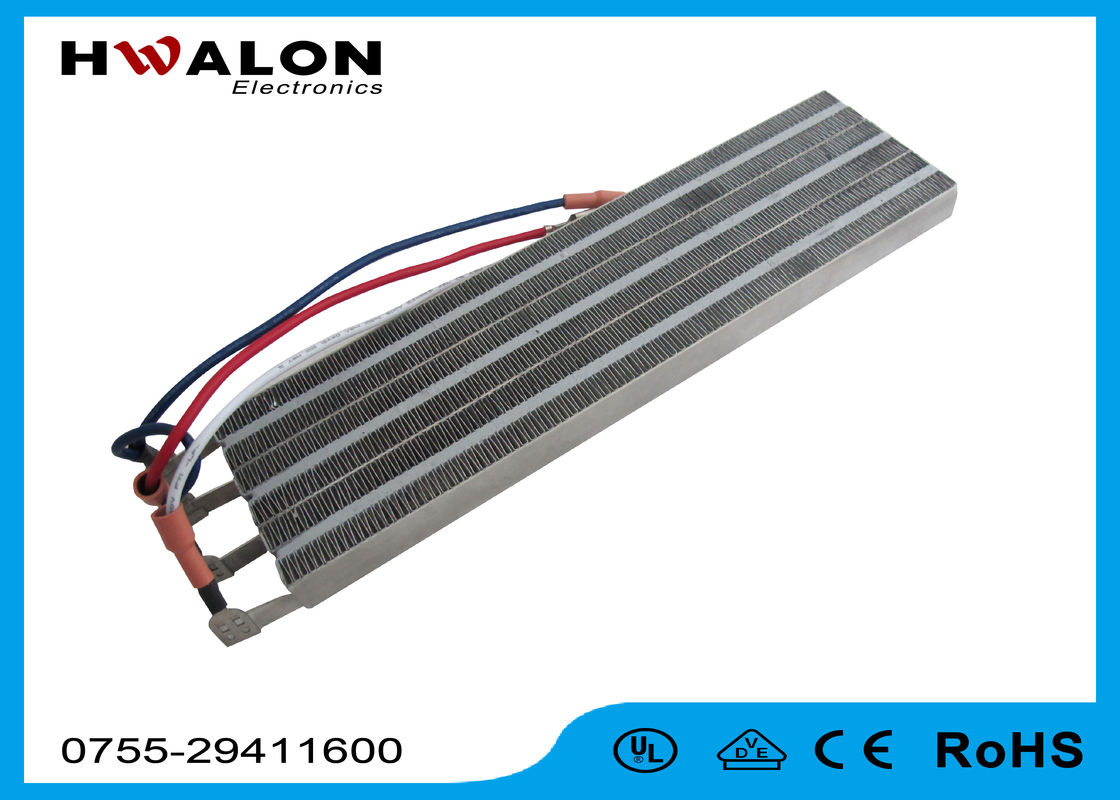

Silver Gray PTC Ceramic Heating Element / Electric Air Heater For Clothes Dryer

Silver Gray PTC Ceramic Heating Element / Electric Air Heater For Clothes Dryer

  • Silver Gray PTC Ceramic Heating Element / Electric Air Heater For Clothes Dryer
  • Silver Gray PTC Ceramic Heating Element / Electric Air Heater For Clothes Dryer
Silver Gray PTC Ceramic Heating Element / Electric Air Heater For Clothes Dryer
Product Details:
Place of Origin: CHINA
Brand Name: Hwalon
Certification: CE UL
Model Number: PR4
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: by negotiation
Packaging Details: 1000pcs/carton
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 100000/month
Contact Now
Detailed Product Description
Warranty: 1 Year Sheath Material:: Aluminium
Resistance:: 1Ω-5000Ω Application: Home Applicance
Power: 900w Size: 150*46*15
Material: Ceramic, Aluminum Color: Silver Gray
Shape: Plate Package Type: Throught Hole
High Light:

PTC electric heater

,

electric PTC heater

900w silver gray Ptc Ceramic Heating Element,Electric Air Heater for Clothes Dryer



Detailed parameters



Length(mm) Width(mm) Thickness(mm) Insulation voltage(V) Switch temperature(°C) Fan speed(m/s) Power(w)
      150 46 15 3750 250 5 900



Features



1. Restore automatically after invalidation
2. With charcteristics of constant temperature
3.

Can use in wide range of ambient temperature

4. The higher the temperature, the more power efficient
5.

It is safe when liquid is burnt out in liquid heating device

6.

PTC hearter does not require temperature controlling system



Description

1. Does not cause oxygen shortage when used for a long time;
2. Internal safety-fuse protection;
3. Current will automatically cut-off to prevent abnormal large current or other external factors causing safety concerns;
4. Water-proof, no electricity leakage or cause short circuit;



Notice


1. PTC heater do not be damaged without air blowing, but the power is very low.

2. The power could be adjusted by air blowing speed; or it could be adjusted by voltage; or changing the number of heaters.

3. Can be in accordance with customer requirements of the power, air temperature, size manufacturing; the greater the area of the hair, the greater the thickness, the greater the wind speed, the lower the inlet temperature, the greater the power; table nominal power 5m / s wind speed, 25 ℃ into the air temperature test conditions of power, no wind when the power is only about 1/10 nominal; in order to increase the power density, can also be made of encrypted structure.


Applications



applications

ptc heaters, dryers, hand dryer, drying room equipment, large industrial air duct heating, electric locomotives warm, heating control cabinet, moisture, and other fields.

Packing:

Each product will be packed in carton.

The outer cartons of the goods, which white plastic strap is pasted, to keep from busting out once the goods is facing creaking and striking.

In general, the goods can be sent to you by Express,by sea,any way you like.



How to Order



1. Application of the PTC heater : _______

2. Working environment of the PTC heater :______

3. The range of operating temperature:___℃to ____℃

*4. Dimension of the PTC heater: _______

*5. R(25) Value :_____

*6. Surface Temperature:_____

*7. Rated Voltage:_____

*8. Need insulated or not :_____

* Fill “*” items necessarily



Shipping


1. FedEx/DHL/UPS/TNT for samples, Door-to-Door
2. By Air or by Sea for batch goods, for Airport/ Port receiving
3. Customers specifying freight forwarders or negotiable shipping methods
4. Delivery Time: 3-5 days for samples; 7-10 days for batch goods



Our Services



1. We offer excellent quatity, the best service, favourable price and prompt delivery for our every customer.

2. We have after-sales services to help our customers during using the products.

3. We can customize the product according to relative requirements of our customers.

4. Your related to inquiry about our product will be replied in 12 hours.

5. Shipping by us( DHL, NTN, FedEx, EMS, UPS and by Sea), or by your agent.

6. Payment by T/T, Western Union.

7. Delivery within 3-5 days to sample order, 7-10days to bulk order.
