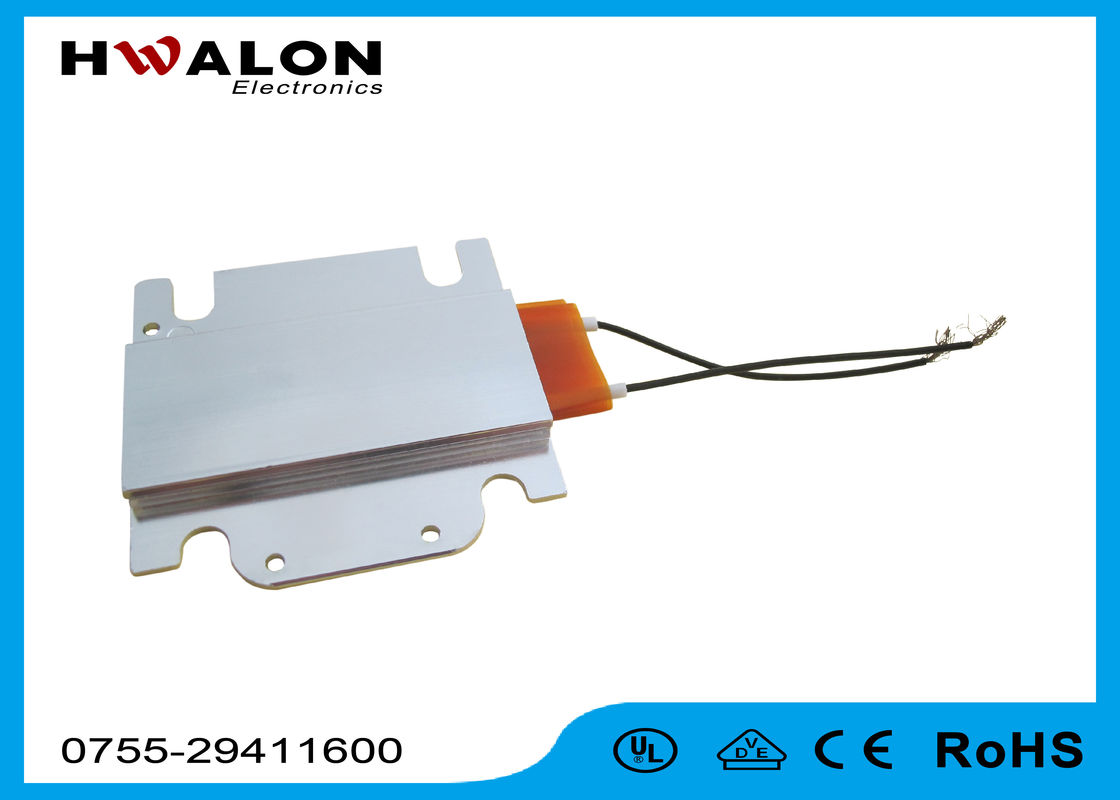

Thickness 2.8 - 3.6mm Aluminum PTC Heating Element Constant Heating Thermostat Plate

Thickness 2.8 - 3.6mm Aluminum PTC Heating Element Constant Heating Thermostat Plate

Thickness 2.8 - 3.6mm Aluminum PTC Heating Element Constant Heating Thermostat Plate

Product Details:

Place of Origin: CHINA
Brand Name: Hwalon
Certification: CE UL
Model Number: PR4

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: by negotiation
Packaging Details: 1000pcs/carton
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs/month
Contact Now
Detailed Product Description
Surface Temperature: 70℃-300℃ Power: 80-300W
Length: 15-95mm Width: 5-45mm
Thickness: 2.8-3.6mm Rated Voltage: 12-240V AC/DC Or Customized
Resistance: 10Kohms Package Type: Throught Hole
Type: Thermal Thermistor



Thickness 2.8 - 3.6mm Aluminum PTC Heating Element Constant Heating Thermostat Plate

Specifications:

1. Simple structure heater gives out constant-temperature heat and not need any additional temperature applications.
2. Safety
3. Give out heat continuously and keep stady power
4. It is used in a large range of voltage
5. Longer service time
6. Higher reliability
7. Dimension is nimble various, may need according to customer reality book make various type specifications.
The PTC Heating element is used for hair permanent clamp, hair curler, face sauna, heat preservation plate, electric mosquito killer, physical therapy apparatus, hot melt glue gun.



PTC heating elements:

1. Working Voltage rang: 12-240V AC/DC or customized
2. Surface Temperature: 70°C~300°C , the temperature tolerance less than ±5°C.
3. The lead wire, fiber glass sleeve, insulate film and shells can customized according to per customers requirements.



Unlike traditional heating elements that use a resistance wire such as Nichrome to generate heat,PTC heating elements are made as ceramic stones, ase on barium titanate.

They have unique characteristics as semeconductors and their ferro-electric propertise can be precisely determined during their design.



R25 Value 1-5000ohms
PTC Size 24*15mm
Rated Voltage 3.6-240V
Withstand Voltage 400-900V
Surface Temp. 50-300℃
Operating Temp.

-25~125℃



Parameters of battery powered heating element :



length width thickness temperature voltage the length of the cable
70mm 13mm 3.1mm 275 Centidegree 220V/110V 150mm(length as per your request)
70mm 12mm 3.1mm 255 Centidegree 220V/110V 155mm(length as per your needed)
64mm 12mm 2.9mm 230 Centidegree 220V/110V 250MM(length as per your interested in)
52mm 12mm 3.1mm 180 Centidegree 220V/110V 150mm(length as per your request)
35mm 10mm 2.8mm 220 Centidegree 220V/110V 55mm( as per your interested in )
24mm 8mm 3.1mm 160 Centidegree 220V/110V 120mm( length as per your needed)
24mm 6mm 2.6mm

150

Centidegree

220V/110V 125mm(length as per your request)




Typical Applications:



1. shoe-drying apparatus ,hair curling equipment

2. physical treatment, massage apparatus,biology heating

3. air-heating,wind-warming equipment ,cold and warm air-conditioner

4. mosquito-driving apparatus,boiled-water equipment,heating board



How to Order:

1. Application of the PTC heater : _______
2. Working environment of the PTC heater :______
3. The range of operating temperature:___℃to ____℃
*4. Dimension of the PTC heater: _______
*5. R(25) Value :_____
*6. Surface Temperature:_____
*7. Power:_____

* Fill “*” items necessarily
