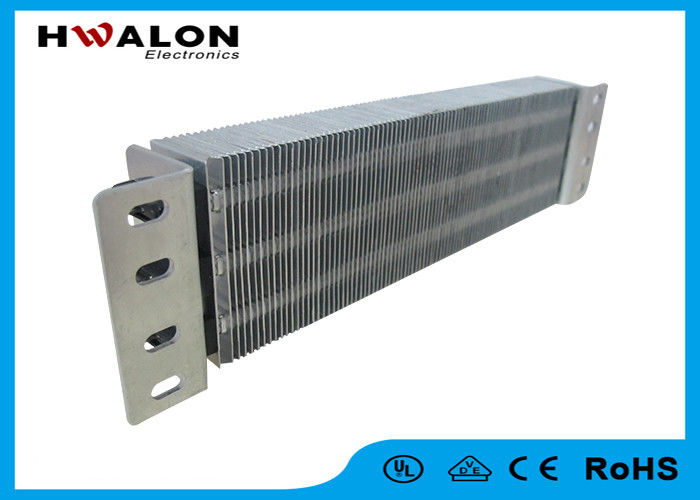

High Power Electric Heating Element Ptc Finned Heater Resistors For Warm Air Conditioner

High Power Electric Heating Element Ptc Finned Heater Resistors For Warm Air Conditioner

High Power Electric Heating Element Ptc Finned Heater Resistors For Warm Air Conditioner

Product Details:

Place of Origin: CHINA
Brand Name: Hwalon
Certification: CE UL
Model Number: PR4

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: by negotiation
Packaging Details: 100pcs/carton
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs/month
Contact Now
Detailed Product Description
Power: 800-2500W Rated Voltage: 50-270v
Resistance: 8-3500ohm Application: Home Applicance
Heat Sink: Aluminum Welding Sink



High Power Electric Heating Element Ptc Finned Heater Resistors For Warm Air Conditioner



Advantages:
1. It is safety.
2. It has high power.
3. It has high reliability.
4. It doesn't turn to red or get fire when it is working.
5. It uses wide range of ambient temperature.
6. It can be manufactured to have different fixed temperatures at which the dramatic resistance change take place...
7. Even with the regard to voltage changes, the constant temperature mechanism will be effective.
8. It can be an effective low cost solution.
9. It has a virtually unlimited service life, and do not generate RFI noise.
10. Dynamic heating output and self-regulating function in correlation to the ambient temperature.



Technical Features:

1. PTC semiconductor chip is adopted as core heating element
2. Plug-and-play, fast temperature increase
3. Efficient in converting electricity into heat, energy efficient
4. Double insulation design, automatic constant temperature maintaining
5. Quiet operation, no oxygenation, and open flame, secure and comfortable use
6. Voltage surge endurable, moisture-resistant and long lifespan
7. Aluminum is adopted as heat emission material, smooth surface, perfect contact and efficient heat emission
8. Surface temperature: 100 to 290
9. Rated voltage: 100 to 250V AC and 12 to 36V DC
10. Insulation resistance: ≥ 100MΩ
11. Withstand voltage: 3750V AC/2 seconds
12. Creep age current: ≤ 0.5mA



Applications:

1.ceramic heater fan, hair dryer, hand dryer, clothes dryer, dish dryer.
2. coffee makers, steam irons, cooking devices, facial sauna, humidifier.
3. curing irons, wax-warmer, glue gun, dehumidifier.
4. mosquito repellent, liquid warmer, control devices.


Specifications:



no. part No. resistance surf. temp. max voltage length width thickness
1 H4PR140RA16K100 7-20 100 20 16 11 2
2 H4PR102RA19K100 600-1500 100 270 16 11 2.5
3 H4PR142RA19K230 800-2000 230 270 19 12 2.2
4 H4PR102RA20K110 500-1500 110 270 23.5 10 2.2




Typical Application:



1 Ceramic heater fan, hair dryer, hand dryer, clothes dryer, dish dryer
2 Coffee makers, steam irons, cooking devices, facial sauna, humidifier
3 Physical treatment, massage apparatus, biology heating
4 Mosquito repellent, liquid warmer, control devices



Dimentions:



· 5×4mm~35×20mm

· Shapes: square, round, ring

· As shown in detailed pictures

· Customized



High Power Electric Heating Element Ptc Finned Heater Resistors For Warm Air Conditioner
