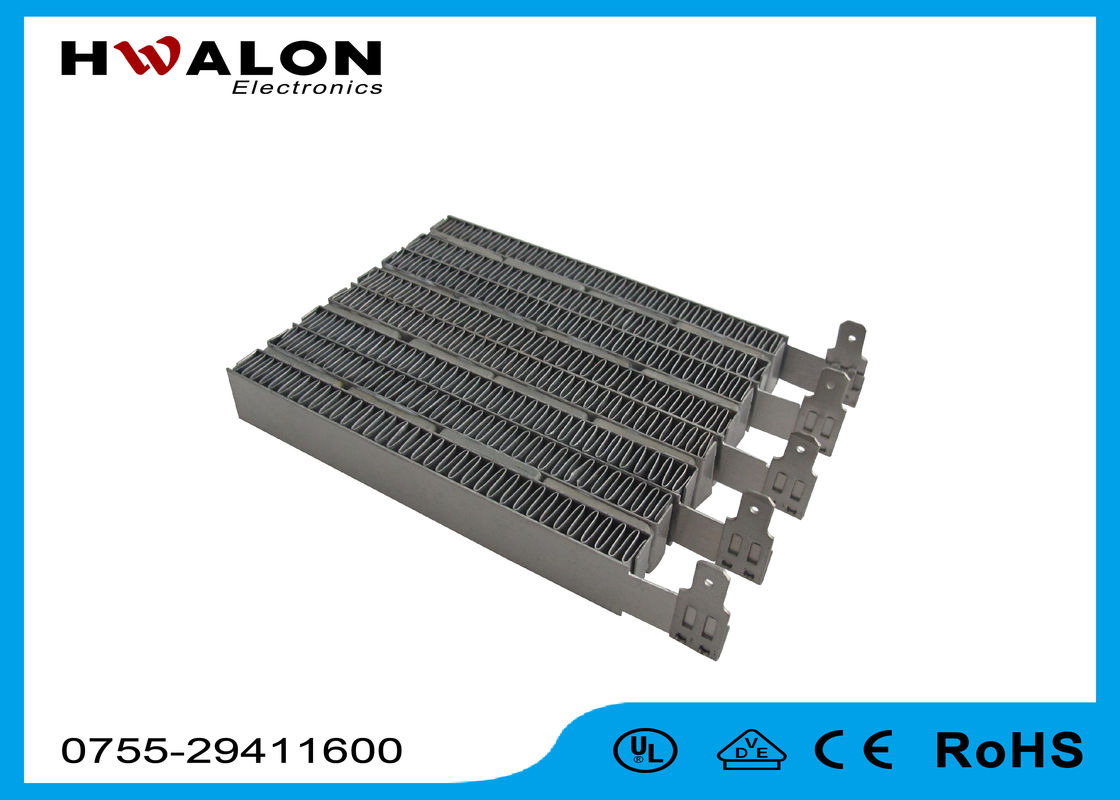

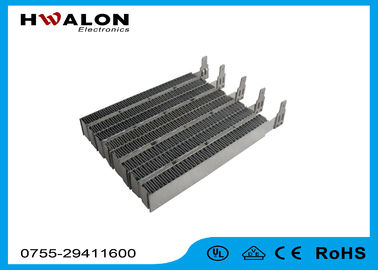

1700W 220 V Ceramic Air Heater Element With Special Terminal For 3C Products

1700W 220 V Ceramic Air Heater Element With Special Terminal For 3C Products

  • 1700W 220 V Ceramic Air Heater Element With Special Terminal For 3C Products
  • 1700W 220 V Ceramic Air Heater Element With Special Terminal For 3C Products
1700W 220 V Ceramic Air Heater Element With Special Terminal For 3C Products
Product Details:
Place of Origin: China
Brand Name: HWA
Certification: RoHS
Model Number: PR4
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Standard CTN package or according to customer’s requirement
Delivery Time: 15 to 20 days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100,000pcs
Contact Now
Detailed Product Description
Application: 3C Products Special Point: Special Terminal
Voltage: 220 V Power: 1700W
Heater Shape: Square Shape Outlet Temperature: 60 Degree
Place Of Origin: Guangdong,China Target Market: Household Appliance Factory
High Light:

PTC electric heater

,

electric PTC heater



1700W 220 V Ceramic Air Heater Element With Special Terminal For 3C Products



Features:



1. Long service life;
2. No thermostat required;
3. No moving parts to wear.






4. Restore automatically after invalidation.

5. PPS frames and other accessories available;






6. No thermostat required;

7. EMF-free, passes EMI,EMC tests.



Detailed Parameters:



Item Parameters
Inner PTC Element Shape Rectangular shape
Inner PTC Element Material Ceramic
Inner PTC Element Quantity Based on Power Demands

Heater Shape Square shape
Heater Material Aluminum
Heater Dimension 96 × 88.5 × 15 mm
Design Ripple Design

Power 1700W
Voltage 220 V
Outlet Temperature 60 degree
Wind Speed 4 m/s

Others With Electricity
With Special Terminal



All the above parameters is customized to meet customers' requirements.



If the parameters you need is special and Not standard,No worries.Just please feel free to inform us. We will customize the parameters for you to meet your requirements.



Description​ :



PTC Air Heater Model
Model Dimension (mm) Aluminum Tubes

Fin Width

(mm)

Fin Pitch

(mm)

SS



96mm × 88.5mm × 15 mm



N/A N/A N/A



Notes :



Special Models and PTC Air Heater Accessories are also available.

Please download the related files from our website, or contact our friendly sales representatives for a copy.



Specifications:



PTC Air Heater Models
Fin Pitch Voltage Power Safety
1.2mm, 1.68mm, 2.0mm, 2.6mm Includes Safety Fuse Both AC/DC available 50~2000W

UL,VDE,TUV



Heater Size :



Extra-high-heating-efficiency (Fin Pitch: 1.2m/m, 1.68m/m)

Extra-low-air-resistance (Fin Pitch: 2.0m/m, 2.6m/m)



Includes Safety Fuse



Parameters :



Voltage: AC/DC 12V/24V/48V/72V/120V/240V/300V/400V/480V/560V

Power: 50~2000W



Warranty :



Safety: CUL, VDE, TUV

Patents: US, Germany, France, Britan, China



Custom Specifications:



Custom specifications can be designed according to customer's requirements.

The PTC heat output can be regulated by the airflow applied in typical applications of heat generation. The higher the airflow, the higher the heat output.



Applications:



This PTC Heater is used for 3C products.



Typical Applications:



DC/AC---Can be used on automobile (electric car) and other applications for heating, dehumidifying, thermal retention or use for general household electronic appliances like hand dryer, air conditioner, iron, laminating machine, adhesize sealing machine etc.



Other applications include freeze protection of outdoor surveillance camera, 3C products and other outdoor electronic devices.



Packing:

Each product will be packed in OPP Bag + Carton.

The outer cartons of the goods, which white plastic strap is pasted, to keep from busting out once the goods is facing creaking and striking.

In general, the goods can be sent to you by Express,by Plane,by Sea,any way you like.



Delivery:



15 ~ 20 days is needed for mass production after payment received.



Then send out as customers' demands.



1700W 220 V Ceramic PTC Air Heater Element With Special Terminal For 3C Products
