Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead

Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead
Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead

Large Image :  Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead

Product Details:
Place of Origin: China
Brand Name: HWA
Certification: RoHS
Model Number: MF52
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: Standard CTN package or according to customer’s requirement
Delivery Time: 10 to 15 days
Payment Terms: T/T, Western Union
Supply Ability: 900,000pcs
Detailed Product Description
Range Of B Value: 2500K ~5000K Tolerance Of B Value: 1%~5%
Color: Black Lead Length: 15mm
Range Of Resistance: 0.1KΩ~680KΩ Tolerance Of Resistance: 1%~10%
Head Type: Bead Operating Temperature Range: -40℃~125℃
Place Of Origin: China Lead Material: CP Lead

Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead



Specifications:



envelope material epoxide, silicone or bakelite
resistance at 25 ℃ from 0.1Kohm to 680Kohm
tolerance of resistance ± 1%, ± 2%, ± 3%, ± 5%, ± 10%
B(25/50) from 2500K to 5000K
tolerance of B value ± 1%, ± 2%, ± 3%, ± 5%
head color



black

Conventional lead length 15mm





Competitive Advantage:



Rohs compliant

small size, fast response

high stability steady

excellent thermal cycle endurance

superior solderability and resistance to soldering heat shock

-40℃ ~125 ℃ operating temperature range







Description:



    1. High precision NTC thermistor sensor

    2. head shape: triangle or rectangle

    3. Wide operating temperature range: -40℃ ~125 ℃

    4. fast response

    5. Small head

    6. It used for temperature measurement.









Applications:



     1. Home appliances (air-conditioner, refrigerator, electric fan, electric cooker, washing machine, microwave oven, drinking machine, CTV, radio, immersion heater);

    2. Computers;

    3. Liquid level sensor.

    4. Electric table-board;

    5. Automotive electronics;

    6. Digital thermometer;

    7. Battery charger;





10K epoxy bead high precision NTC temperature sensor thermistor for computer and electical home

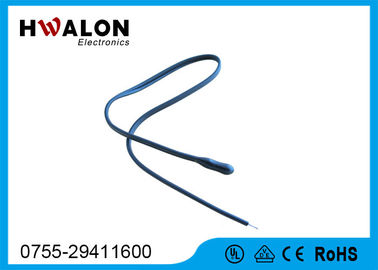

Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead 0

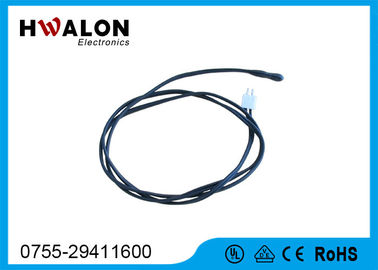

Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead 1

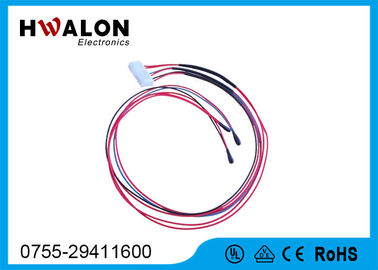

Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead 2

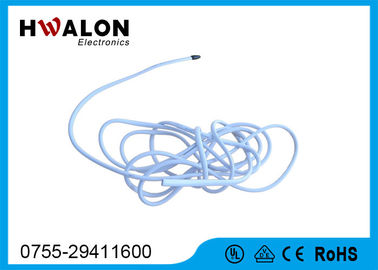

Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead 3

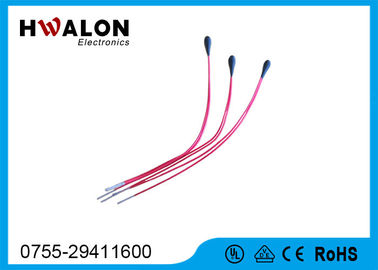

Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead 4
factory picture:

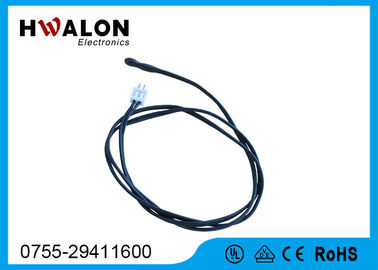

Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead 5

Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead 6
Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead 7
