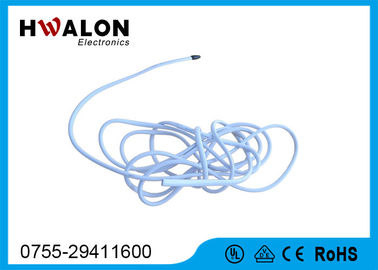

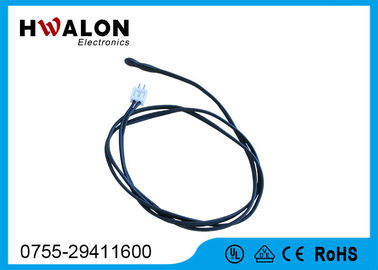

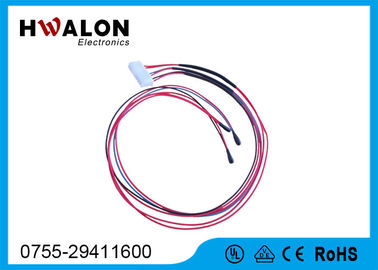

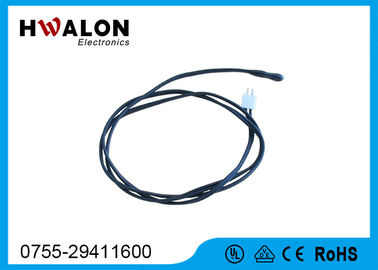

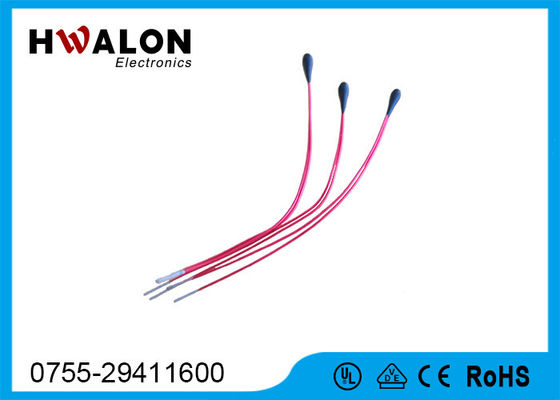

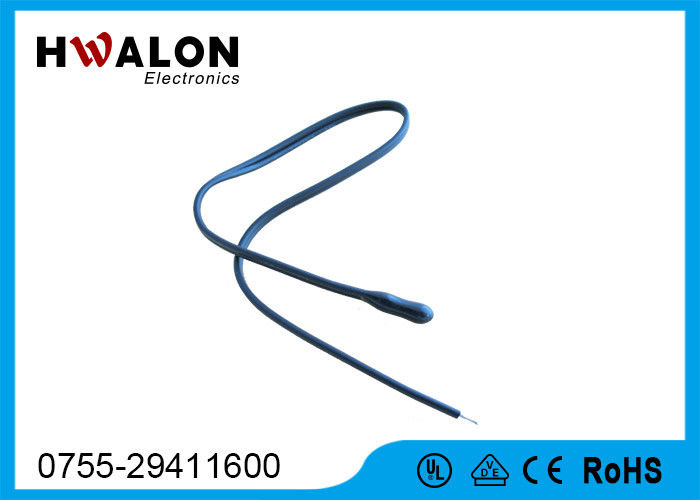

Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead

Large Image : Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead

Product Details:

Place of Origin:	China
Brand Name:	HWA
Certification:	RoHS
Model Number:	MF52

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	Standard CTN package or according to customer’s requirement
Delivery Time:	10 to 15 days
Payment Terms:	T/T, Western Union
Supply Ability:	900,000pcs

Contact Now

Detailed Product Description

Range Of B Value:	2500K ~5000K	Tolerance Of B Value:	1%~5%
Color:	Black	Lead Length:	15mm
Range Of Resistance:	0.1KΩ~680KΩ	Tolerance Of Resistance:	1%~10%
Head Type:	Bead	Operating Temperature Range:	-40℃~125℃
Place Of Origin:	China	Lead Material:	CP Lead
Highlight:	Epoxy Bead Thermistor Temperature Sensor , Custom Computer Thermistor Temperature Sensor , NTC Thermistor Temperature Sensor

Custom Computer Electical Thermistor Temperature Sensor NTC With Epoxy Bead

Specifications:

envelope material	epoxide, silicone or bakelite
resistance at 25 ℃	from 0.1Kohm to 680Kohm
tolerance of resistance	± 1%, ± 2%, ± 3%, ± 5%, ± 10%
B(25/50)	from 2500K to 5000K
tolerance of B value	± 1%, ± 2%, ± 3%, ± 5%
head color	black
Conventional lead length	15mm

Competitive Advantage:

Rohs compliant

small size, fast response

high stability steady

excellent thermal cycle endurance

superior solderability and resistance to soldering heat shock

-40℃ ~125 ℃ operating temperature range

Description:

1. High precision NTC thermistor sensor

2. head shape: triangle or rectangle

3. Wide operating temperature range: -40℃ ~125 ℃

4. fast response

5. Small head

6. It used for temperature measurement.

Applications:

1. Home appliances (air-conditioner, refrigerator, electric fan, electric cooker, washing machine, microwave oven, drinking machine, CTV, radio, immersion heater);

2. Computers;

3. Liquid level sensor.

4. Electric table-board;

5. Automotive electronics;

6. Digital thermometer;

7. Battery charger;

10K epoxy bead high precision NTC temperature sensor thermistor for computer and electical home
