PR2 Inrush Current Limiter Resistor 12V~220V PTC Thermistor For Overcurrent And Overload Protect

PR2 Inrush Current Limiter Resistor 12V~220V PTC Thermistor For Overcurrent And Overload Protect

  • PR2 Inrush Current Limiter Resistor 12V~220V PTC Thermistor For Overcurrent And Overload Protect
  • PR2 Inrush Current Limiter Resistor 12V~220V PTC Thermistor For Overcurrent And Overload Protect
  • PR2 Inrush Current Limiter Resistor 12V~220V PTC Thermistor For Overcurrent And Overload Protect
  • PR2 Inrush Current Limiter Resistor 12V~220V PTC Thermistor For Overcurrent And Overload Protect
PR2 Inrush Current Limiter Resistor 12V~220V PTC Thermistor For Overcurrent And Overload Protect
Product Details:
Place of Origin: China
Brand Name: HWALON
Certification: RoHS, CQC
Model Number: PR2
Payment & Shipping Terms:
Minimum Order Quantity: 5000
Price: Negotiation
Packaging Details: bulk package,exporting standard carton packing
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 1,00,0000pcs/month
Contact Now
Detailed Product Description
Packing Type: Bulk Pack & Reel Pack Item Color: Green
Max. Operating Voltage: 20V~265V Restore Time: 60s
Rated Voltage: 12V~220V Technology: Ceramic Composition
Operating Temp. Range: -25℃~125℃ Place Of Origin: Guangdong
Encapsulation: Silicone Sealed
High Light:

inrush current limiting thermistor

,

NTC inrush current limiter



PTC thermistor for overcurrent and overload protect High Stability PR2 PTC Inrush Current Limiter 12V~220V  Silicone Sealed





Company Introduction:

  • 15 years experience on PTC/NTC thermistor field.
  • Competitive price and high quality
  • On time handle over
  • Competitive price
  • Inquiry answered in 24hrs
  • Good team waiting here to serve for you
  • RoHS &UL compatible
  • OEM & ODM business accepted
  • Main target market: Europe, North America, Asia.



Competitive Advantage:



1. PTC thermistor for overcurrent and overload protection is a million-time device of automatic protection, recoverability, using repeatedly, and no trigger, noice or sparks.



2. When PTC is in the normal state, the resistance is too low to affect the regular work of the protected circuit such as the voltage transformer's primary and secondary loops.



3. When the circuit is in disorder, the PTC will generate heat suddenly, and the resistance value will go up to the high state, which make the circuit in the state of relatively "reaking up" to protect the circuit.





Product picture:

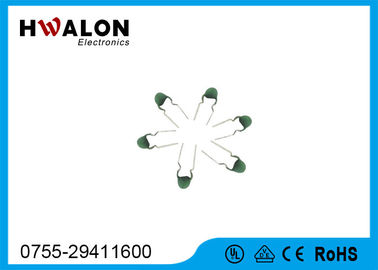

PR2 Inrush Current Limiter Resistor 12V~220V PTC Thermistor For Overcurrent And Overload Protect 0

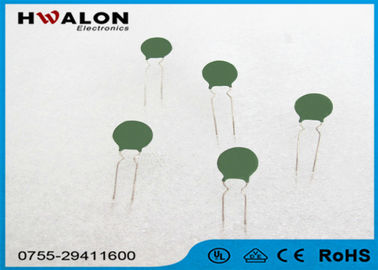

PR2 Inrush Current Limiter Resistor 12V~220V PTC Thermistor For Overcurrent And Overload Protect 1

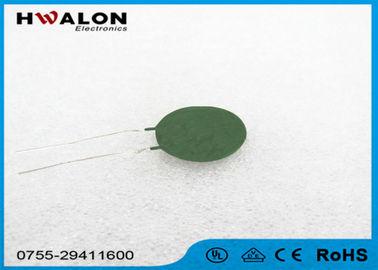

PR2 Inrush Current Limiter Resistor 12V~220V PTC Thermistor For Overcurrent And Overload Protect 2





Description:

1. Surges due to lighting strikes on or near to the line plant.

2. Short-term induction of alternating voltage from adjacent power lines or railway systems, usually when these lines or systems occur fault.

3. Direct contact between telephone lines and power lines.







Applications:

Switching power supply

air-conditioner and other household appliances

microwave oven

adapter

LED control panel

industry-controlling exchangers

program exchanger

security unit

telephone

overcurrent protection of terminals







General Technical Data



rated voltage Vn 12V~220Vrms
max. operating voltage Vmax 20V~265Vrms
surge voltage withstanding Vs Vmax*(1.2~1.5)
tolerance of resistance Rn ±20%(M), ±25%(V)
non-trip current In 10mA~1800mA
trip current It 20mA~3600mA
max. operating current Imax 0.2A~10.0Arms
restore time Tr 60S(max)
typical switching times N 10000 times
tolerance of switching temp. Tc ±10 ℃
operating temperature range Ta

-25 ℃~125 ℃(V=0V)

0 ℃~60 ℃(V=Vmax)









Specifications:



No. Part no. Vmax (v) non-trip current (mA) @25 ℃ non-trip current (mA) @60 ℃ trip current (mA) @25℃ resistance( Ω ) ±25% Imax (A) switch temp. D(max) T(max) d
1 H2PR151RH03LB265 265 22 15 45 150 0.2 80 ℃ ±7℃ 4.5 5.0 0.5
2 H2PR101RH03LB250 250 25 18 55 100 0.2 80 ℃±7 ℃ 4.5 5.0 0.5
3 H2PR70RH05LB250 250 50 30 100 70 0.3 80 ℃±7 ℃ 6.5 5.0 0.5
4 H2PR121RH05LB265 265 30 20 60 120 0.3 80 ℃±7 ℃ 6.5 5.0 0.5
5 H2PR101RH07LB265 265 50 30 100 100 0.6 80 ℃±7 ℃ 8.0 5.0 0.6
6 H2PR12RH08LB250 265 120 70 220 12 0.8 80 ℃±7 ℃ 9.0 5.0 0.6
7 H2PR25RH08LB265 265 85 50 170 25 0.8 80 ℃±7 ℃ 9.0 5.0 0.6
8 H2PR35RH08LB265 265 80 50 150 35 0.8 80 ℃±7 ℃ 9.0 5.0 0.6
9 H2PR50Rh08LB265 265 60 40 120 50 1.0 80 ℃±7 ℃ 9.0 5.0 0.6
10 H2PR70RH03HE250 250 45 35 90 70 0.1 100 ℃±7 ℃ 4.5 5.0 0.5
11 H2PR101RH03HE250 250 40 30 80 100 0.2 100 ℃±7 ℃ 4.5 5.0 0.5
... ...

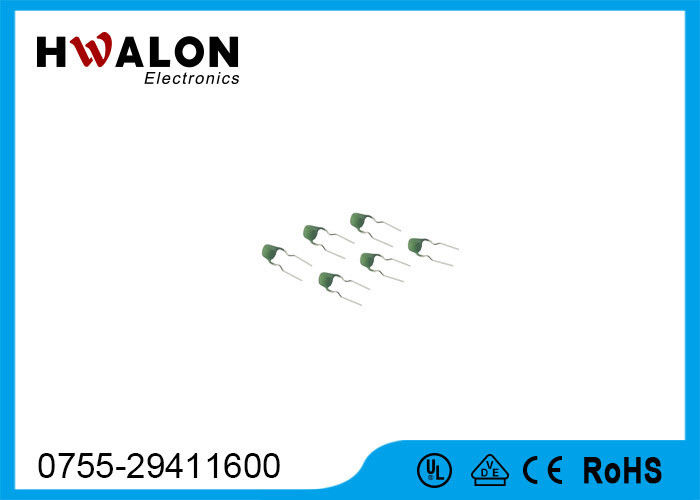

PR2 Inrush Current Limiter Resistor 12V~220V PTC Thermistor For Overcurrent And Overload Protect 3





High Stability Inrush Current Limiter Thermistor Epoxy Sealed PTC Thermistor









Our service

1. Price advantages :reasonable and competitive;
2. We are manufacturer and possess strong strength;
3. We can supply you directly, save the agent fees and reduce your cost;
4. Big order comes with big discount, trial orders are also welcome;
5. Reply your enquiry within 24 hours;
6. Do our utmost to meet your demands, such as products information, sample, packing , price, shipping etc.
7. Deliver professional advice for you to buy a satisfactory product at a competitive price to meet your requirements as we can.





If any questions or ideas,just please feel free to contact us, since we hold the opinion that any questions or trouble can be absolutely settled.





It is our hope, by joint effort, to promote both business and friendship to our mutual advantage.
