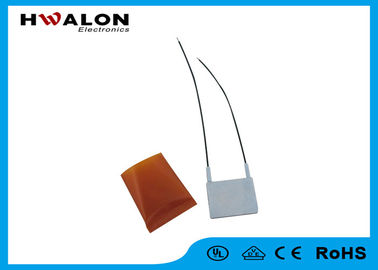

80 - 300W Ceramic PTC Heating Element For Mosquito Dispeller Yogurt Machine

80 - 300W Ceramic PTC Heating Element For Mosquito Dispeller Yogurt Machine

    • 80 - 300W Ceramic PTC Heating Element For Mosquito Dispeller Yogurt Machine
    • 80 - 300W Ceramic PTC Heating Element For Mosquito Dispeller Yogurt Machine
  • 80 - 300W Ceramic PTC Heating Element For Mosquito Dispeller Yogurt Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: Hwalon
    Certification: CE UL
    Model Number: PR4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: by negotiation
    Packaging Details: 1000pcs/carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 100,000pcs/month
    Contact Now
    Detailed Product Description
    Surface Temperature: 70℃-300℃ Power: 80-300W
    Length: 15-95mm Width: 5-45mm
    Thickness: 2.8-3.6mm Rated Voltage: 12-240V AC/DC Or Customized
    Resistance: 10Kohms Package Type: Throught Hole
    Type: Thermal Thermistor

    Factory price ceramic ptc heating element for mosquito dispeller Yogurt machine



    Description:



    With the characteristic of constant temperature, the PTC heater does not need the temperature-controlling system.-.If the PTC heater is used to heat the cold wind, it will not be destroyed when the wind is stopped.-.If the PTC heater is used to heat the liquid (eg: water), it will not be destroyed when the liquid is burnt to be dry.



    PTC heating elements:



    •Curie Temperature: 50~280 °C

    •Resistance Range: 0.4~5.0K ohm

    •Dimension: 5x 4mm~ 35x20 mm

    •Types: Circle , rectangle , ring

    •Rated Voltage: 6V~48V 100~120V 200~240V

    Specifications

    1.keep steady power

    2.safety and higher reliable
    3.give out heat continuously
    4.self-control the temperature



    R25 Value 1-5000ohms
    PTC Size 24*15mm
    Rated Voltage 3.6-240V
    Withstand Voltage 400-900V
    Surface Temp. 50-300℃
    Operating Temp. -25~125℃





    Parameters of battery powered heating element :



    length width thickness temperature voltage the length of the cable
    70mm 13mm 3.1mm 275 Centidegree 220V/110V 150mm(length as per your request)
    70mm 12mm 3.1mm 255 Centidegree 220V/110V 155mm(length as per your needed)
    64mm 12mm 2.9mm 230 Centidegree 220V/110V 250MM(length as per your interested in)
    52mm 12mm 3.1mm 180 Centidegree 220V/110V 150mm(length as per your request)
    35mm 10mm 2.8mm 220 Centidegree 220V/110V 55mm( as per your interested in )
    24mm 8mm 3.1mm 160 Centidegree 220V/110V 120mm( length as per your needed)
    24mm 6mm 2.6mm

    150

    Centidegree

    220V/110V 125mm(length as per your request)



    Typical Applications:



    1. Shoe-drying apparatus ,hair curling equipment

    2. Physical treatment, massage apparatus,biology heating

    3. Air-heating,wind-warming equipment ,cold and warm air-conditioner

    4. Mosquito-driving apparatus,boiled-water equipment,heating board


    How to Order:

    1. Application of the PTC heater : _______
    2. Working environment of the PTC heater :______
    3. The range of operating temperature:___℃to ____℃
    *4. Dimension of the PTC heater: _______
    *5. R(25) Value :_____
    *6. Surface Temperature:_____
    *7. Power:_____

    * Fill “*” items necessarily



    F&Q:



      Question Answers
      1 What is the MOQ? 1000pcs.
      2 What is the payment terms? Negotiation.
      3 Can you accept special requirement? Yes, we can design for your special requirement.



    4



    Can you make the printing artworks(such as user manual/packing/rating label) in our language



    Yes,we can.We do OEM work for long time

       5 Can we order samples: Yes ,you can . Free samples are available
