Thermal Protection PTC Electronic Component 30V Switching Power Supply Ball Mill

Thermal Protection PTC Electronic Component 30V Switching Power Supply Ball Mill

    • Thermal Protection PTC Electronic Component 30V Switching Power Supply Ball Mill
    • Thermal Protection PTC Electronic Component 30V Switching Power Supply Ball Mill
    • Thermal Protection PTC Electronic Component 30V Switching Power Supply Ball Mill
    • Thermal Protection PTC Electronic Component 30V Switching Power Supply Ball Mill
    • Thermal Protection PTC Electronic Component 30V Switching Power Supply Ball Mill
  • Thermal Protection PTC Electronic Component 30V Switching Power Supply Ball Mill

    Product Details:

    Place of Origin: China
    Brand Name: HWALON
    Certification: RoHS,CE
    Model Number: PR6

    Payment & Shipping Terms:

    Minimum Order Quantity: 10,000pcs
    Packaging Details: CTN package, according to customer’s requirement if necessary
    Delivery Time: 7 to 25 days
    Payment Terms: T/T, Western Union
    Supply Ability: 1,000,000pcs
    Contact Now
    Detailed Product Description
    Type: Fixed Resistor Protection Temperature: 30℃~150℃
    Max. Current: 100mA Technology: Ceramic Composition
    Color: Green Function: Thermal Protection
    Max. Voltage: 30V Switch Temperature: 40℃~110℃

    Overheat Protection PTC Thermistor 30V switching power supply Ball mill

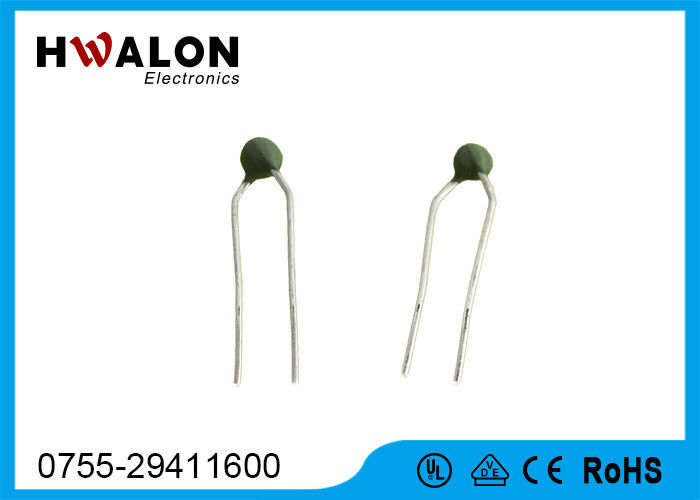

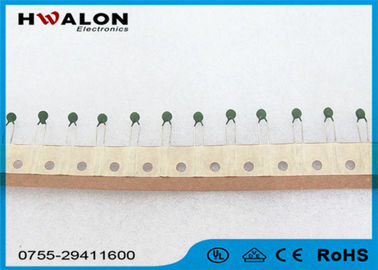

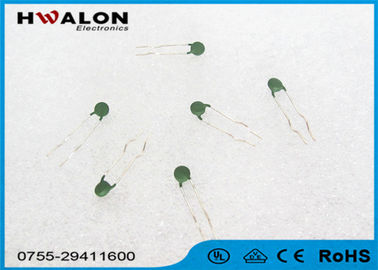

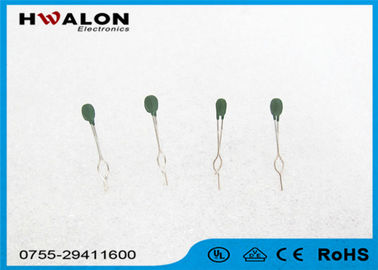

    Product pictures:

    Thermal Protection PTC Electronic Component 30V Switching Power Supply Ball Mill

    Thermal Protection PTC Electronic Component 30V Switching Power Supply Ball Mill



    Thermal Protection PTC Electronic Component 30V Switching Power Supply Ball Mill









    Part no. Selection:



    part no. max. voltage (V) switch temp. ( ℃) protection temp. ( ℃) R25 ℃ ( Ω ) max Rs-15 ℃ ( Ω) Rs ( Ω) max current(mA)
    H6PR101R60 30 40 60 100 330 470 100
    H6PR101R70 30 50 70 100 330 470 100
    H6PR101R80 30 60 80 100 330 470 100
    H6PR101R90 30 70 90 100 330 470 100
    H6PR101R100 30 80 100 100 330 470 100
    H6PR101R110 30 90 110 100 330 470 100
    H6PR101R120 30 100 120 100 330 470 100
    H6PR101R130 30 110 130 100 330 470 100
    H6PR331R60 30 40 60 330 1500 2200 100
    H6PR331R70 30 50 70 330 1500 2200 100
    H6PR331R80 30 60 80 330 1500 2200 100
    H6PR331R90 30 70 90 330 1500 2200 100
    H6PR331R100 30 80 100 330 1500 2200 100
    H6PR331R110 30 90 110 330 1500 2200 100





    Dimensions:



    type one: the first surface mount







    type two: the second surface mount







    type three: lead type







    above dimensions are our conventinal dimensions, we can also OEM for customers.





    Description and features:



    • PTC thermistor for overheat protection is a million-time device of automatic protection;
    • Recoverability, can be used repeatedly;
    • No trigger, noice or sparks;
    • Electrode material: silver;
    • Welding material: tin-silver alloy;
    • Two shapes: lead type and surface mount type;
    • Lead material: tinned copper wire;
    • Encapsulation material: green, silicone, flammability 94V-0.







    Competitive Advantage:





    1, Convenient installment and small size

    2, No requirement for reseting after over-heat protection

    3, Quick action

    4, We can offer equivalent PTC thermistor of Thinking & TDK

    5, Good stability

    6, Wide range protection temperature: 30~150°C

    7, Long life working time





    Usages:



        1, switching power supply



        2, electro-thermal oven



        3, automatic lathe

        4, transformers

        5, LED control panel





    Typical application circuit: overheat protection circuit and overheat sensing heat.





    high precision thermal protection Overheat Protection Thermistor for transformer, LED lighting
