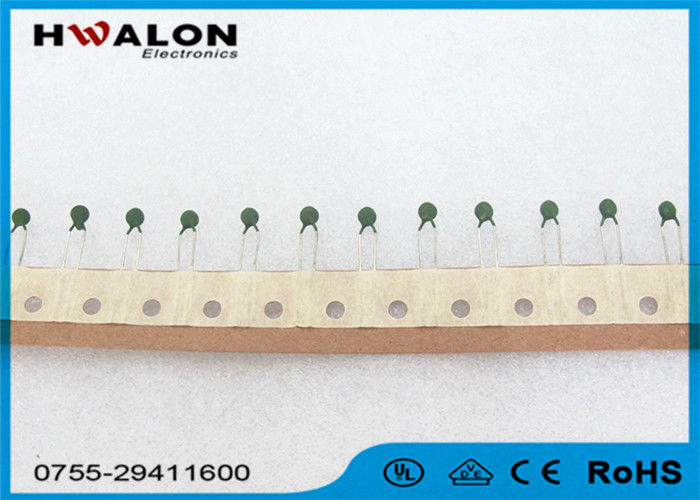

30V Lead Surface Mount Style Overheat Protection Thermistor For Switching Power Supply

30V Lead Surface Mount Style Overheat Protection Thermistor For Switching Power Supply

  • 30V Lead Surface Mount Style Overheat Protection Thermistor For Switching Power Supply
30V Lead Surface Mount Style Overheat Protection Thermistor For Switching Power Supply
Product Details:
Place of Origin: Guangdong
Brand Name: hwalon
Model Number: PR6
Payment & Shipping Terms:
Minimum Order Quantity: 5000
Price: by negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 100000
Contact Now
Detailed Product Description
Type:: Thermal Resistor Switch Temp:: 80℃
Resistance:: 470Ω Package Type:: Surface Mount
Max. Voltage:: 30v Protection Temp: 60℃
Rated Power:: 1-3000w Resistance Error:: 10%
Technology:: Ceramic Composition Max Current:: 100MA
High Light:

PTC electronic component

,

PTC resistor

Thermal protect resistor 30V Lead Surface Mount Style thermistor for Switching power supply

Specification:



part no. max. voltage (V) switch temp. ( ℃) protection temp. ( ℃) R25 ℃ ( Ω ) max Rs-15 ℃ ( Ω) Rs ( Ω) max current(mA)
H6PR101R100 30 80 100 100 330 470 100
H6PR101R110 30 90 110 100 330 470 100
H6PR101R120 30 100 120 100 330 470 100
H6PR101R130 30 110 130 100 330 470 100
H6PR331R100 30 80 100 330 1500 2200 100
H6PR331R110 30 90 110 330 1500 2200 100
H6PR331R120 30 100 120 330 1500 200 100


The Specification of H6PR101R60:



part no. max. voltage (V) switch temp. ( ℃) protection temp. ( ℃) R25 ℃ ( Ω ) max Rs-15 ℃ ( Ω) Rs ( Ω) max current(mA)
H6PR101R100 30 80 100 100 330 470 100



Application design:



Ptc thermistor sensor Curie temperature from 40-300 degrees, ptc thermistor in the RT characteristic curve, the resistance value into the jump after the jump section can be used as a temperature, liquid level, flow sensing application. According to ptc thermistor temperature-sensitive characteristics, designed for over-temperature protection and temperature sensing applications, used in switching power supply, electrical equipment, electrical. Transformers, power devices.



How to Order:


In order to help you get the exact model, please offer the following necessary info.:
*1.The dimension and the drawing of the Thermistor
*2.curie temperature: _____ °c
*3. max voltage: _____ V
*4. protection temperature range: _____ °c to _____ °c
*5. rated resistance: _____ ohm
*6. protection temperature resistance: _____ ohm

*7. lead type: _____
* Fill " * " items necessarily.

Company information:

1. 15 years experience on PTC/NTC thermistor field
2. Mainly market are Europe, North America, Asia
3. Competitive price
4. On time handle over
5. Competitive price
6. Inquiry answered in 24hrs
7. Good team waiting here to serve for you
8. RoHS &UL compatible
9. OEM & ODM business accept


Shipping:


1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-5 days for samples; 7-10 days for batch goods.


FAQ:


  Question Answers
1 What is the MOQ? 5000pcs.
2 What is the payment terms? Negotiation.
3 Can you accept special requirement? Yes,we can.We can design for your special requirement.
4 Can you make the printing artworks(such as user manual/packing/rating label) in our language Yes,we can.We do OEM work for long time
5 Can we order samples: Yes ,you can . Free samples are available
