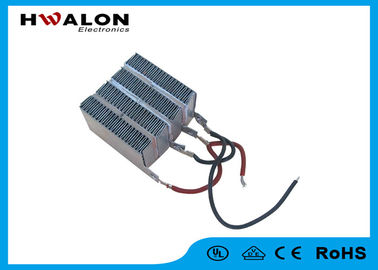

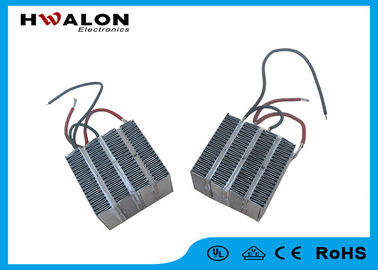

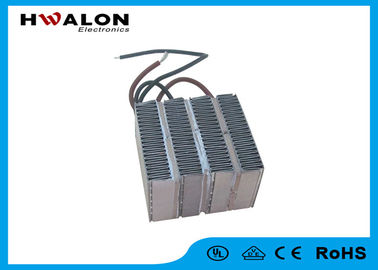

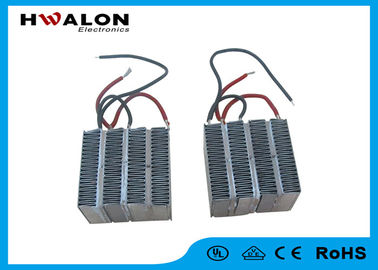

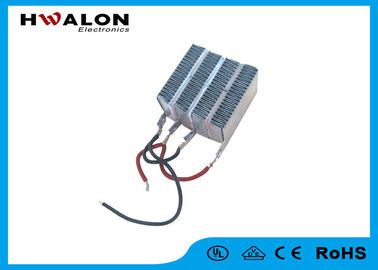

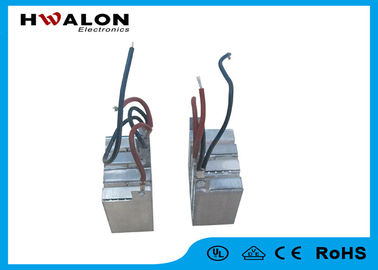

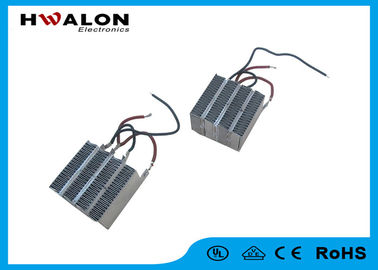

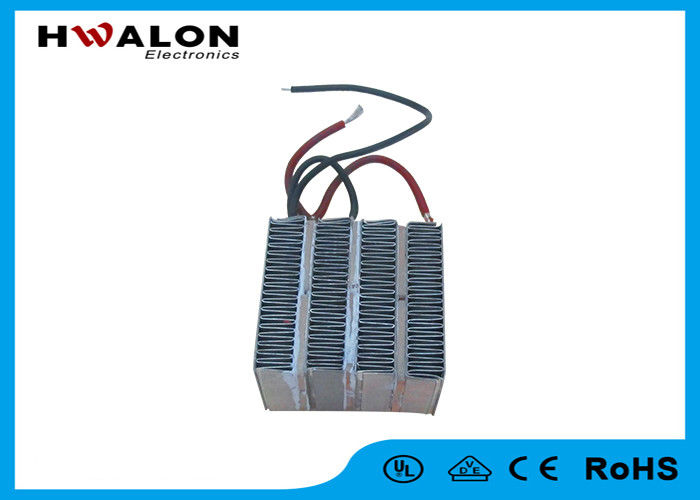

Thermostatic Ceramic PTC Heater , Fan Air Heater Element 380V 500W ~ 5000W

Thermostatic PTC Ceramic Air Heater Fan Heating Element 1500W 220V air conditioner

Instruction of PTC air heater

Advantage of PTC air heater

Safety, surface insulation.

Heat up quickly, long service life.

Self-control temperature

Small sound

Instruction manual:

1, The power line does not distinguish between positive and negative, you can freely link power

2, When the heater is dry, low thermal efficiency, it is recommended to use with the fan.

3, It can be placed under a wet environment, but it can not be placed in water.

4, For the first time, It maybe produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.

5, Built-in 230 degrees Celsius heater chip, when dry the surface temperature of about 200 degrees Celsius, the fan blowing, the surface temperature of about 120 degrees Celsius.

6. Test: Ambient temperature 24 degrees celsius, the wind speed: 3.3 m / s, Hot air temperature is about 50-60 degrees Celsius when distance from the outlet is 10cm..

7, Under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please buyers understand!

How to order

Please tell us the parameters like below

1. Is  the surface insulated or not ?

2. Voltage: _____ V

3. Power: _____ W

4. The size of heating element: length_____ mm * width _____ mm * thickness _____ mm.

    A graphics will highly appreciated

5. The output temperature or surface temperature: _____ ℃

6. The application of PTC air heating element

F&A:

1, Is Sample avaible? How long will it take for sample preparation?

Sample is available with freight collect; one sample will be ready within three days.

2. Is there any other design choice?

OEM/ODM is welcome, we provide full customization service.

3. Do you provide solutions if we have no idea?

Yes, we have experienced technicians who could give professional suggestions and provide proper solutions for your purpose.

4. Payment terms and payment methods?

For sample orders, we accept PayPal, TT, and Western Union.

For mass order, we prefer TT .
