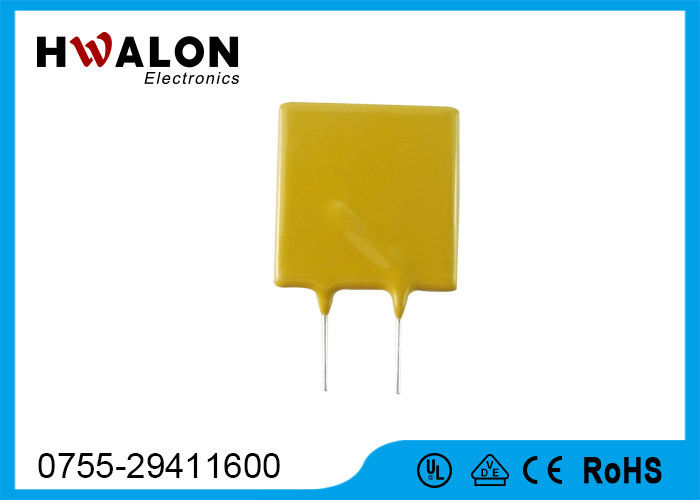

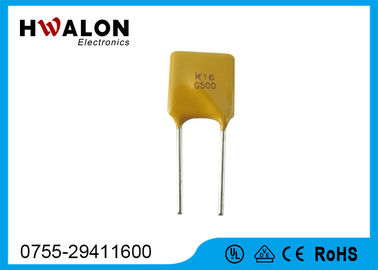

Yellow PPTC Thermistor Polymer PTC Fuse Environmental Protection OEM ODM

Yellow PPTC Thermistor Polymer PTC Fuse Environmental Protection OEM ODM

  • Yellow PPTC Thermistor Polymer PTC Fuse Environmental Protection OEM ODM
  • Yellow PPTC Thermistor Polymer PTC Fuse Environmental Protection OEM ODM
Yellow PPTC Thermistor Polymer PTC Fuse Environmental Protection OEM ODM
Product Details:
Place of Origin: China
Brand Name: Hwalon
Model Number: PPTC
Payment & Shipping Terms:
Minimum Order Quantity: 10Kpcs
Price: negotiation
Packaging Details: Packed in OPP Bag firstly,and then reinforced with Cartons for outer packing
Delivery Time: 15~20 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Chip Size: Customized Lead Dia.: Custom To Application
Function: Short-Circuit Protection Parameters: Size, Voltage
Color: Yellow Lead Time (Delivery Time): Depend On Quantity
Application: DVD,Motor, Electronic Toy, Loudspeaker Material: Polymeric PTC Material
High Light:

pptc resettable fuse

,

polyswitch resettable devices

Yellow PPTC Thermistor Polymer PTC Fuse Environmental Protection OEM ODM​





Applications:

PPTC resettable fuse DVD,Motor,Electronic toy,Loudspeaker

The PPTC can be widely applied to electric equipment: like DVD,electronic toy,motor,loudspeaker,etc.





Features

1. Smaller size saves board space and cost

2. Resettable circuit protection

3. Fast time-to-trip

4. Low resistance

5. Lead-free and compliant with the European Union RoHS Directive 2002/95/EC





How to Order

In order to help you to get the exact model, please offer the following necessary info.:

*1. Size of PPTC: ________ mm

*2. Current of PPTC: ________ A

* Fill " * " items necessarily



Once the obove parameters is confirmed,the most favorable price will be offered to you.

Each order will be executed immediately once confirmed,in order to produce and dispatch the goods to you ASAP.

Meanwhile,we also expecting the Next order will comes soon.





Description:

PPTC resettable fuse are made of polymeric PTC materials which is a matrix of polymer containing dispersed conductive particles. Generally,the device has a very low resistance. If an over-current happened, as a response to the damage current,the resistance will immediately increase to very high,reducing the current of the circuit to a safe value that the loading can carry. Once fault to the circuit is weed out and power is recuperated, the polymer will deflate itself,the device will reset and is ready for normal operation.





Competitive Advantage:



1. Smaller size saves board space and cost

2. Resettable circuit protection

3. Fast time-to-trip

4. Low resistance

5. Lead-free and compliant with the European Union RoHS Directive 2002/95/EC

6. A matrix of polymer containing dispersed conductive particles

7. Response quickly when facing damage current

8. Considerate service & reasonable price





Specifications:



Voltage Model NO.
16V 16V-075 16V-090 16V-110 16V-120 16V-135 16V-160 16V-185 16V-250 16V-300
16V-400 16V-500 16V-600 16V-700 16V-800 16V-900 16V-1000 16V-1100 16V-1200
30V 30V-050 30V-075 30V-090 30V-110 30V-135 30V-160 30V-185 30V-200 30V-250
30V-300 30V-400 30V-500 30V-600 30V-700 30V-800 30V-900 / /
42V 42V-050 42V-075 42V-090 42V-110 42V-135 42V-160 42V-185 42V-250 42V-300
42V-375 42V-500 42V-600 42V-700 42V-800 42V-900 / / /
60V 60V-005 60V-010 60V-017 60V-020 60V-025 60V-030 60V-040 60V-050 60V-065
60V-075 60V-090 60V-110 60V-135 60V-160 60V-185 60V-250 60V-300 60V-375
72V 72V-005 72V-010 72V-017 72V-020 72V-025 72V-030 72V-040 72V-050 72V-065
72V-075 72V-090 72V-110 72V-135 72V-160 72V-185 72V-250 72V-300 72V-375





High Quality & Stability PPTC Thermistor Polymer PTC Fuse for Electronic toy



Yellow PPTC Thermistor Polymer PTC Fuse Environmental Protection OEM ODM 0



Any question occurred,please do not hesitate to get in touch with us.We will surely help you heart and soul.



We are looking forward to establishing long-term friendly business relationship with you.
