Detailed Product Description
Function: High Inrush Current Restriction Effect Application: UPS Power ,electronic Circuit ,ballast
Lead Type: Straight/ Clubfoot/K Type Certification: CE ,Rohs ,UL
Material: Ceramic Stock: Yes

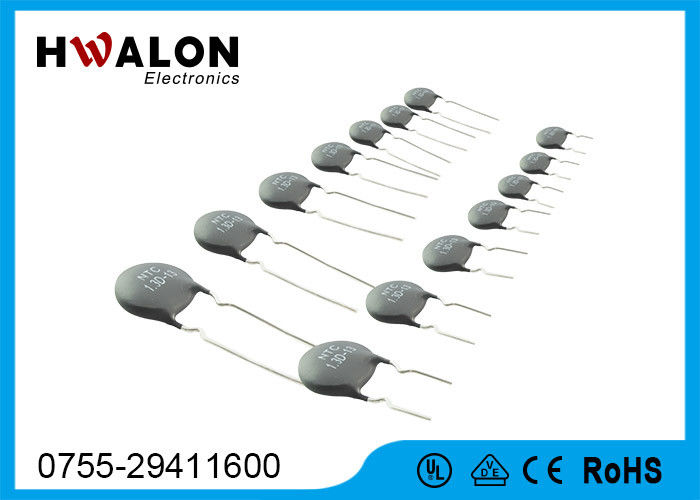

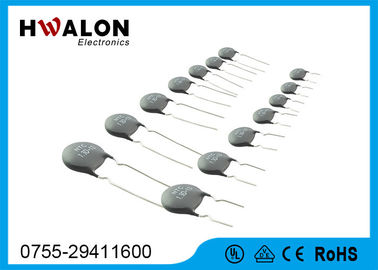

5D20 Inrush Current Limiter Resistor NTC Thermistor Resistance For UPS Power





Competitive Advantage of Inrush Current Limiter Thermistor:



1. Small size, strong power and strong capability of surge current limited;

2. Fast response;

3. Big material constant, small remain resistance;

4. Longevity of sercive, high reliability



Specification for Inrush Current Limiter Thermistor 5D20 NTC resistor:



Zero Power Resistance @ 25℃ 5Ω±20%
Approx. Resistance @ Max Current 7A
Thermal Recovery Time Coefficient 23
Thermal Dissipation Constant 87
Operating Temperature -55~ +200 degree
B value 2800k±10%










Application of Inrush Current Limiter Thermistor :



1.Coversion power-supply,switch power,ups power



2.Electronic energy saving lamps,electronic ballast and all kinds of electric heater



3.All kinds of RT.display



4.Bulb and other lighting lamps





Parameters of Inrush Current Limiter Thermistor :



P/N R25(Ω) R tolerance Imax(A) IB(A) RS(Ω) δ(Mw/℃) τ(Sec)
5D
5D-5 5 ±20% 1 2 0.353 6 20
10D-5 10 ±20% 0.7 1.4 0.771 6 20
15D-5 15 ±20% 0.6 1.2 0.9 6 20
22D-5 22 ±20% 0.6 1.2 0.9 6 20
33D-5 33 ±20% 0.5 1 1.2 6 20
47D-5 47 ±20% 0.4 0.8 1.5 6 20
68D-5 58 ±20% 0.4 0.8 2.1 6 20
200D-5 200 ±20% 0.1 0.2 6.259 6 20
9D
3D-9 3 ±20% 4 8 0.12 11 35
4D-9 4 ±20% 3 6 0.19 11 35
5D-9 5 ±20% 3 6 0.21 11 34
6D-9 6 ±20% 2 4 0.315 11 34
8D-9 8 ±20% 2 4 0.4 11 32
10D-9 10 ±20% 2 4 0.458 11 32
12D-9 1 ±20% 1 2 0.652 11 31
16D-9 16 ±20% 1 2 0.802 11 30
20D-9 20 ±20% 1 2 0.864 11 30
22D-9 22 ±20% 1 2 0.95 11 30
30D-9 30 ±20% 1 2 1.022 11 30
33D-9 33 ±20% 1 2 1.124 11 30
50D-9 50 ±20% 1 2 1.252 11 30
60D-9 60 ±20% 0.8 1.6 1.502 11 30
80D-9 80 ±20% 0.8 1.6 2.01 11 30
120D-9 120 ±20% 0.8 1.6 3.015 11 30
200D-9 200 ±20% 0.5 1 5.007 11 32
400D-9 400 ±20% 0.2 0.4 9.852 11 32
11D
2.5D-11 2.5 ±20% 5 10 0.095 13 43
3D-11 3 ±20% 5 10 0.1 13 43
4D-11 4 ±20% 4 8 0.15 13 44
5D-11 5 ±20% 4 8 0.156 13 45
6D-11 6 ±20% 3 6 0.24 13 45
8D-11 8 ±20% 3 6 0.255 14 47
10D-11 10 ±20% 3 6 0.275 14 47
12D-11 12 ±20% 2 4 0.462 14 48
16D-11 16 ±20% 2 4 0.47 14 50
20D-11 20 ±20% 2 4 0.512 15 52
22D-11 22 ±20% 2 4 0.563 15 52
30D-11 30 ±20% 1.5 3 0.667 15 2
33D-11 33 ±20% 1.5 3 0.734 15 52
50D-11 50 ±20% 1.5 3 1.021 15 52
60D-11 60 ±20% 1.5 3 1.212 15 52
80D-11 80 ±20% 1.2 2.4 1.656 15 52
13D
1.3D-13 1.3 ±20% 7 14 0.062 13 60
1.5D-13 1.5 ±20% 7 14 0.073 13 60
2.5D-13 2.5 ±20% 6 12 0.088 13 60
3D-13 3 ±20% 6 12 0.092 14 60
4D-13 4 ±20% 5 10 0.12 15 67
5D-13 5 ±20% 5 10 0.125 15 68
6D-13 6 ±20% 4 8 0.17 15 65
7D-13 7 ±20% 4 8 0.188 15 65
8D-13 8 ±20% 4 8 0.194 15 60
10D-13 10 ±20% 4 8 0.206 15 62
12D-13 12 ±20% 3 6 0.316 16 62
15D-13 15 ±20% 3 6 0.335 16 60
16D-13 16 ±20% 3 6 0.338 16 60
20D-13 20 ±20% 3 6 0.372 16 65
30D-13 30 ±20% 2.5 5 0.517 16 65
47D-13 47 ±20% 2 4 0.81 17 65
120D-13 120 ±20% 1.5 3 2.124 16 65
15D
1.5D-15 1.3 ±20% 8 16 0.048 18 68
1.5D-15 1.5 ±20% 8 16 0.052 19 69
3D-15 3 ±20% 7 14 0.075 18 76
5D-15 5 ±20% 6 12 0.112 20 76
6D-15 6 ±20% 5 10 0.155 20 80
7D-15 7 ±20% 5 10 0.173 20 80
8D-15 8 ±20% 5 10 0.178 20 80
10D-15 10 ±20% 5 10 0.18 20 75
12D-15 12 ±20% 4 8 0.25 20 75
15D-15 15 ±20% 4 8 0.268 21 85
16D-15 16 ±20% 4 8 0.276 21 70
20D-15 20 ±20% 4 8 0.288 17 86
30D-15 30 ±20% 3.5 7 0.438 18 75
47D-15 47 ±20% 3 6 0.68 21 86
120D-15 120 ±20% 2.5 5 1.652 22 87
20D
0.7D-20 0.7 ±20% 12 24 0.018 25 89
1.3D-20 1.3 ±20% 9 18 0.037 24 88
3D-20 3 ±20% 8 16 0.055 24 88
5D-20 5 ±20% 7 14 0.087 23 87
6D-20 6 ±20% 6 12 0.113 25 103
8D-20 8 ±20% 6 12 0.142 25 105
10D-20 10 ±20% 6 12 0.162 24 102
12D-20 12 ±20% 5 10 0.195 24 100
16D-20 16 ±20% 5 10 0.212 25 100
