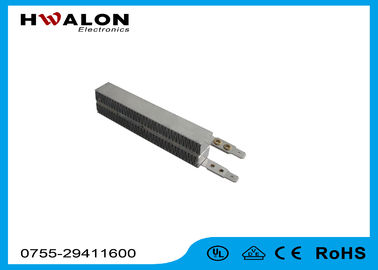

Body Dryer 240V 800W Ceramic PTC Air Heater Element With Surface Temp. 230 ℃

Body Dryer 240V 800W Ceramic PTC Air Heater Element With Surface Temp. 230 ℃

    • Body Dryer 240V 800W Ceramic PTC Air Heater Element With Surface Temp. 230 ℃
    • Body Dryer 240V 800W Ceramic PTC Air Heater Element With Surface Temp. 230 ℃
  • Body Dryer 240V 800W Ceramic PTC Air Heater Element With Surface Temp. 230 ℃

    Product Details:

    Place of Origin: China
    Brand Name: HWA
    Certification: RoHS
    Model Number: PR4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: Negotiation
    Packaging Details: Standard CTN package or according to customer’s requirement
    Delivery Time: 15 to 20 days
    Payment Terms: T/T, Western Union,Paypal
    Supply Ability: 100,000pcs
    Contact Now
    Detailed Product Description
    Features: With Electricity & Terminal Voltage: 240V
    Function: For Heating Wind Speed: 4 M/s
    Target Group: Europe, Asia Inner Element: Rectangular Size


    240V 800W Ceramic PTC Air Heater Element With Surface Temp. 230 ℃ For Body Dryer



    Features:



    1. Long service life;

    2. No thermostat required;
    3. Very low air resistance, high efficiency


    4. No smell, no radiation, does not oxidize;

    5. Fast thermal heating rate, low inrush current;
    6. PPS frames and other accessories available.



    Description​ :



    PTC Air Heater Model
    Model Dimension (mm) Aluminum Tubes

    Fin Width

    (mm)

    Fin Pitch

    (mm)

    TH

    26mm × 45mm × L

    L (mm) : 70, 93, 106, 128, 150, 185, 202

    2 45 2.0 (N)



    Notes :



    Special Models and PTC Air Heater Accessories are also available.

    Please download the related files from our website, or contact our friendly sales representatives for a copy.



    Detailed Parameters:



    Item Parameters
    Inner PTC Element Shape Rectangular shape
    Inner PTC Element Material Ceramic

    Heater Shape Rectangular shape
    Heater Size 24 × 43 × 105mm
    Heater Material Aluminum
    Design Ripple Design

    Power 800 W
    Voltage 240 V
    Surface Temperature 230 degree
    Wind Speed 4 m/s

    Others With Electricity
    With Terminal



    All the above parameters is customized to meet customers' requirements.



    If the parameters you need is special and Not standard,No worries.Just please feel free to inform us. We will customize the parameters for you to meet your requirements.



    Specifications:



    PTC Air Heater Models
    Fin Pitch Voltage Power Safety
    1.2mm, 1.68mm, 2.0mm, 2.6mm Includes Safety Fuse Both AC/DC available 50~2000W

    UL,VDE,TUV



    • Extra-high-heating-efficiency (Fin Pitch: 1.2m/m, 1.68m/m)
    • Extra-low-air-resistance (Fin Pitch: 2.0m/m, 2.6m/m)
    • Includes Safety Fuse



    • Voltage: AC/DC 12V/24V/48V/72V/120V/240V/300V/400V/480V/560V
    • Power: 50~2000W



    • Safety: CUL, VDE, TUV
    • Patents: US, Germany, France, Britan, China



    Custom Specifications:



    Custom specifications can be designed according to customer's requirements.

    The PTC heat output can be regulated by the airflow applied in typical applications of heat generation. The higher the airflow, the higher the heat output.



    Applications:



    This PTC Heater is used for Body Dryer.



    It also can be used in:



    PTC Air Heater
    Air Cleaner Body Dryer
    Central Air-conditioner Biology heating
    Massage apparatus Physical treatment



    Typical Applications:



    DC/AC---Can be used on automobile (electric car) and other applications for heating, dehumidifying, thermal retention or use for general household electronic appliances like hand dryer, air conditioner, iron, laminating machine, adhesize sealing machine etc.



    Other applications include freeze protection of outdoor surveillance camera, 3C products and other outdoor electronic devices.



    Packing:

    Each product will be packed in carton.

    The outer cartons of the goods, which white plastic strap is pasted, to keep from busting out once the goods is facing creaking and striking.

    In general, the goods can be sent to you by Express,by sea,any way you like.



    Delivery:



    15 ~ 20 days is needed for mass production after payment received. Then send out as customers' demands.



    240V 800W Ceramic PTC Air Heater Element With Surface Temp. 230 ℃ For Body Dryer



    Body Dryer 240V 800W Ceramic PTC Air Heater Element With Surface Temp. 230 ℃

    If any questions or ideas,just please feel free to contact us, since we hold the opinion that any questions or trouble can be absolutely settled.

    It is our hope, by joint effort, to promote both business and friendship to our mutual advantage.
