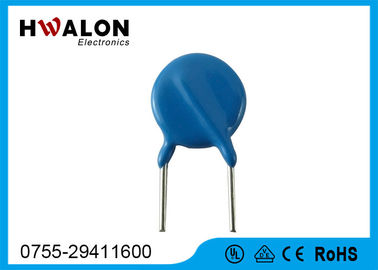

20D271K 270V Metal Zinc Metal Oxide Varistor Ceramic Material 5ohm Resistance

20D271k 270V Metal Zinc Metal Oxide Varistor Pice

Detailed product description

Quick Details:

1. Radial leaded type
2. Many size choice : 7mm, 10mm, 14mm, 20mm, 25mm and 32mm
3. VM(AC)RMS voltage range from 130V to 1000V
4. Energy absorption capability up to 360J
5. UL ,VDE ,CSA Certification

1. High surge current ratings up to 8 kA

2. Wide operating voltage range 11 ~ 1100 V rms

3. No derating up to 85 degree ambient temperature

4. PSpice models

5. For S14 / S20 types duty cycle @ 6kV / 3kA = > 10 pulses, according to IEC 60950 - 1, Annex Q; IEC 61051 - 2

Description:

Varistors provide reliable and economical protection against high voltage transients and surges which may be produced, for example, by lighting, switching or electrical noise on AC or DC power lines. They have the advantage over teansient suppressor diodes in as much as they can absorb much higher transient energies and can suppress positive and negative transients. When a transient occurs, the varistor resistance changes from a very high stand-by value to a very low conducting value . The transient is thus absorbed and clamped to a safe level, protecting sensitive circuit components Varistors are manufacturerd from a non-homogeneous material, giving a rectifying action at the contact points of two particals. Many series and parallel connections determine the voltage rating and the current capability of the varistor.

Specification:

All the above parameters is customized to meet customers' requirements.

If the parameters you need is special and Not standard,No worries.Just please feel free to inform us. We will customize the parameters for you to meet your requirements.

05D Series Varistor

How to Order:

1. Diameter

2. Voltage

3. Lead type

Please provide us these parameters to help you get the exect model.

Our Advantages:

1. Different kinds of specification, including 5D 10D 14D 20D 25D Varistor.

2. Factory supply directly.

3. OEM&ODM service.

4. High quality and competitive price.

5. Best after-sales services
