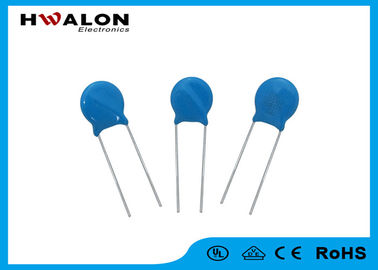

5ohm Resistance Mov Electronic Component Ceramic Material 680v 3 Movs CVR-05D681K

5ohm Resistance Mov Electronic Component Ceramic Material 680v 3 Movs CVR-05D681K

  • 5ohm Resistance Mov Electronic Component Ceramic Material 680v 3 Movs CVR-05D681K
  • 5ohm Resistance Mov Electronic Component Ceramic Material 680v 3 Movs CVR-05D681K
5ohm Resistance Mov Electronic Component Ceramic Material 680v 3 Movs CVR-05D681K
Product Details:
Place of Origin: China
Brand Name: Hwalon
Certification: CE, SGS, RoHS
Model Number: Varistor
Payment & Shipping Terms:
Minimum Order Quantity: 5000 pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 600002 pcs per month
Contact Now
Detailed Product Description
Resistance: 5 Ohm Voltage: 680v
Color: Blue Material: Ceramic
High Light:

MOV electronic component

,

MOV electrical component

Blue High Voltage 5ohm 680v 3 movs CVR-05D681K Metal Oxide Varistor with Straight Lead



Detailed product description



Quick Details:



1. Radial leaded type
2. Many size choice : 7mm, 10mm, 14mm, 20mm, 25mm and 32mm
3. VM(AC)RMS voltage range from 130V to 1000V

4. Energy absorption capability up to 360J
5. UL ,VDE ,CSA Certification





1. High surge current ratings up to 8 kA

2. Wide operating voltage range 11 ~ 1100 V rms

3. No derating up to 85 degree ambient temperature

4. PSpice models

5. For S14 / S20 types duty cycle @ 6kV / 3kA = > 10 pulses, according to IEC 60950 - 1, Annex Q; IEC 61051 - 2



Description:



Varistors provide reliable and economical protection against high voltage transients and surges which may be produced, for example, by lighting, switching or electrical noise on AC or DC power lines. They have the advantage over teansient suppressor diodes in as much as they can absorb much higher transient energies and can suppress positive and negative transients. When a transient occurs, the varistor resistance changes from a very high stand-by value to a very low conducting value . The transient is thus absorbed and clamped to a safe level, protecting sensitive circuit components Varistors are manufacturerd from a non-homogeneous material, giving a rectifying action at the contact points of two particals. Many series and parallel connections determine the voltage rating and the current capability of the varistor.





Specification:



Item   Parameters
 Model NO.  CVR-05D681K
 Size  5mm
Voltage  680v
Epoxy Color  blue
 Lead Type  Straight



All the above parameters is customized to meet customers' requirements.



If the parameters you need is special and Not standard,No worries.Just please feel free to inform us. We will customize the parameters for you to meet your requirements.



05D Series Varistor



5ohm Resistance Mov Electronic Component Ceramic Material 680v 3 Movs CVR-05D681K 0

5ohm Resistance Mov Electronic Component Ceramic Material 680v 3 Movs CVR-05D681K 1

5ohm Resistance Mov Electronic Component Ceramic Material 680v 3 Movs CVR-05D681K 2



How to Order:



1. Diameter

2. Voltage

3. Lead type



Please provide us these parameters to help you get the exect model.



Our Advantages:



1. Different kinds of specification, including 5D 10D 14D 20D 25D Varistor.

2. Factory supply directly.

3. OEM&ODM service.

4. High quality and competitive price.

5. Best after-sales services
