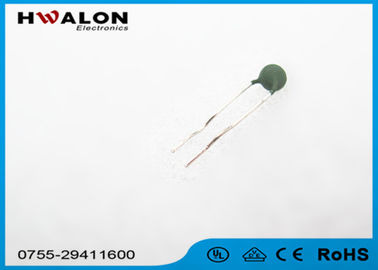

30V Silicone Thermal Protection Fixed Value Resistor For Switching Power Supply
  • name

30V Silicone Thermal Protection Fixed Value Resistor For Switching Power Supply

MOQ: 10,000pcs
Standard Packaging: CTN package, according to customer’s requirement if necessary
Delivery Period: 10 to 15 days
Payment Method: T/T, Western Union
Supply Capacity: 1,000,000pcs
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HWA
Certification
RoHS
Model Number
PR6
Function:
Thermal Protection
Max. Voltage:
30V
Switch Temperature:
50 Degree
Protection Temperature:
70 Degree
R25℃:
100 Ohm
R(Ts-15℃):
330 Ohm
Rs:
470 Ohm
Place Of Origin:
China
Max. Current:
100mA
Encapsulation Material:
Silicone
Highlight:

PTC electronic component

,

PTC resistor

Product Description

30V Green Silicone Thermal Protection Overheat Protection Thermistor for Switching Power Supply



Competitive Advantages:





1, we can offer equivalent PTC thermistor of Thinking & TDK;

2, no need to reseting after over-heat protection;

3, long life working time;

4, stability is perfect;

5, fast action;

6, convenient installment and small size;

7, protection temperature ranges from 30 degree to 150 degree.





Description and features:



  • PTC thermistor for overheat protection is a million-time device of automatic protection;
  • Recoverability, can be used repeatedly;
  • Two shapes: lead type and surface mount type;
  • Electrode material: silver;
  • Encapsulation material: silicone, green, flammability 94V-0.
  • Welding material: tin-silver alloy;
  • Lead material: tinned copper wire;
  • Encapsulation material: silicon resin;
  • No sparks, trigger or noice.



Typical application circuit: overheat protection circuit and overheat sensing heat.





Part no. for your reference:



part no. max. voltage (V) switch temp. ( ℃) protection temp. ( ℃) R25 ℃ ( Ω ) max Rs-15 ℃ ( Ω) Rs ( Ω) max current(mA)
H6PR101R60 30 40 60 100 330 470 100
H6PR101R70 30 50 70 100 330 470 100
H6PR101R80 30 60 80 100 330 470 100
H6PR101R90 30 70 90 100 330 470 100
H6PR101R100 30 80 100 100 330 470 100
H6PR101R110 30 90 110 100 330 470 100
H6PR101R120 30 100 120 100 330 470 100
H6PR101R130 30 110 130 100 330 470 100
H6PR331R60 30 40 60 330 1500 2200 100
H6PR331R70 30 50 70 330 1500 2200 100
H6PR331R80 30 60 80 330 1500 2200 100
H6PR331R90 30 70 90 330 1500 2200 100
H6PR331R100 30 80 100 330 1500 2200 100
H6PR331R110 30 90 110 330 1500 2200 100



We can research the unconventional parameters for you, OEM is ok for us, different lead types are also no problem if there is a big quantity support. Welcome your inquiries!





Dimensions:



one: lead type

∮4.5(max.)*3.5(max.)



30V Silicone Thermal Protection Fixed Value Resistor For Switching Power Supply 0



two: the first surface mount

∮8.5(±0.5)*6.5(max.)



30V Silicone Thermal Protection Fixed Value Resistor For Switching Power Supply 1



three: the second surface mount

max ∮7.8(±0.3)*4(±0.3)



30V Silicone Thermal Protection Fixed Value Resistor For Switching Power Supply 2





We can OEM for customers except for above dimensions.



Application:



application
LED control panel LED lighting switching power supply automatic lathe transformers electro-thermal oven








30V Green Silicone Thermal Protection Overheat Protection Thermistor for Switching Power Supply



30V Silicone Thermal Protection Fixed Value Resistor For Switching Power Supply 3
