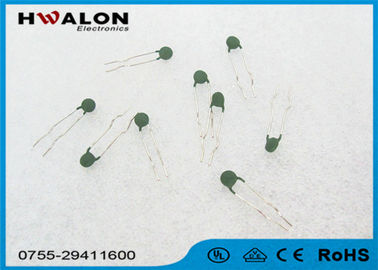

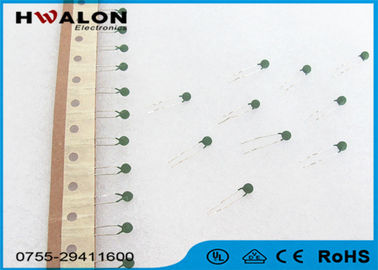

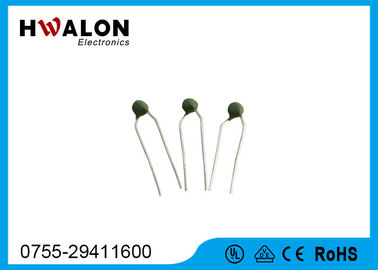

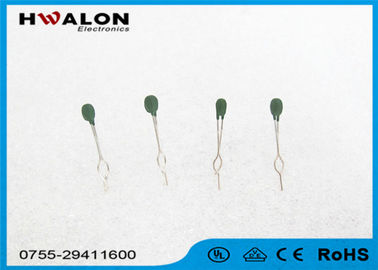

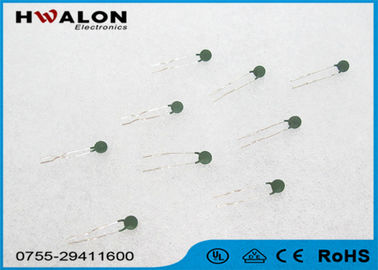

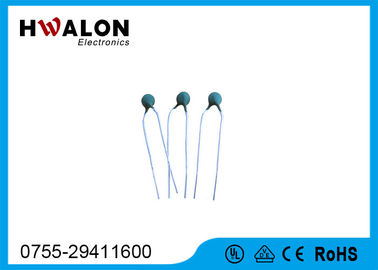

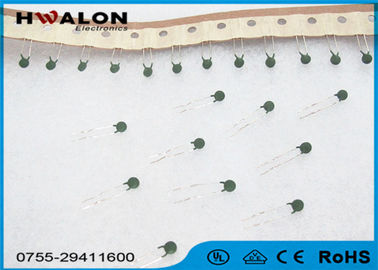

Ceramic Composition Overheat Protection Thermistor 30V Switching Power Supply Electric Oven

Ceramic Composition Overheat Protection Thermistor 30V Switching Power Supply Electric Oven
Ceramic Composition Overheat Protection Thermistor 30V Switching Power Supply Electric Oven Ceramic Composition Overheat Protection Thermistor 30V Switching Power Supply Electric Oven Ceramic Composition Overheat Protection Thermistor 30V Switching Power Supply Electric Oven Ceramic Composition Overheat Protection Thermistor 30V Switching Power Supply Electric Oven Ceramic Composition Overheat Protection Thermistor 30V Switching Power Supply Electric Oven Ceramic Composition Overheat Protection Thermistor 30V Switching Power Supply Electric Oven Ceramic Composition Overheat Protection Thermistor 30V Switching Power Supply Electric Oven

Large Image :  Ceramic Composition Overheat Protection Thermistor 30V Switching Power Supply Electric Oven

Product Details:
Place of Origin: China
Brand Name: HWA
Certification: RoHS,CE
Model Number: PR6
Payment & Shipping Terms:
Minimum Order Quantity: 10,000pcs
Packaging Details: CTN package, according to customer’s requirement if necessary
Delivery Time: 10 to 15 days
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs
Detailed Product Description
Type: Fixed Resistor Protection Temperature: 30℃~150℃
Max. Current: 100mA Technology: Ceramic Composition
Color: Green Function: Thermal Protection
Max. Voltage: 30V Switch Temperature: 40℃~110℃
High Light:

PTC electronic component

,

fixed value resistor

Overheat Protection PTC Thermistor 30V switching power supply electric oven







Part no. Selection:



part no. max. voltage (V) switch temp. ( ℃) protection temp. ( ℃) R25 ℃ ( Ω ) max Rs-15 ℃ ( Ω) Rs ( Ω) max current(mA)
H6PR101R60 30 40 60 100 330 470 100
H6PR101R70 30 50 70 100 330 470 100
H6PR101R80 30 60 80 100 330 470 100
H6PR101R90 30 70 90 100 330 470 100
H6PR101R100 30 80 100 100 330 470 100
H6PR101R110 30 90 110 100 330 470 100
H6PR101R120 30 100 120 100 330 470 100
H6PR101R130 30 110 130 100 330 470 100
H6PR331R60 30 40 60 330 1500 2200 100
H6PR331R70 30 50 70 330 1500 2200 100
H6PR331R80 30 60 80 330 1500 2200 100
H6PR331R90 30 70 90 330 1500 2200 100
H6PR331R100 30 80 100 330 1500 2200 100
H6PR331R110 30 90 110 330 1500 2200 100









above dimensions are our conventinal dimensions, we can also OEM for customers.





Description and features:



  • PTC thermistor for overheat protection is a million-time device of automatic protection;
  • Recoverability, can be used repeatedly;
  • No trigger, noice or sparks;
  • Two shapes: lead type and surface mount type;
  • Lead material: tinned copper wire;
  • Electrode material: silver;
  • Welding material: tin-silver alloy;
  • Encapsulation material: green, silicone, flammability 94V-0.







Competitive Advantage:

      1, Convenient installment and small size.

      2, No requirement for reseting after over-heat protection.

      3, Quick action

      4, We can offer equivalent PTC thermistor of Thinking & TDK

      5, Long life working time

      6, Good stability

      7, Wide range protection temperature: 30~150°C





Usages:



    1, switching power supply

    3, automatic lathe

    4, transformers

    2, electro-thermal oven

    5, LED control panel





Company Introduction:

      We are the leading manufacturer specializing in various kinds of PTC/NTC Thermistor,Varistor,PPTC etc. Furthermore, all our products has passed RoHs,SGS,ISO 9001.

      And we have customers from all over the world, mainly target market are Europe, North America, Asia.


      Our factory has equipped with advanced level of automated production line, advanced equipment,strong technical force, product lining, guarantee of quality and satisfactory service.

       In this case,we would like to establish harmonious business relationships with clients from all over the world based on the principle of equality and mutual benefit of both party.







Typical application circuit: overheat protection circuit and overheat sensing heat.





high precision thermal protection Overheat Protection Thermistor for transformer, LED lighting
