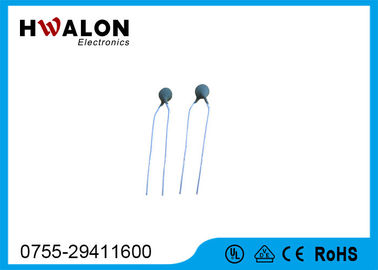

High Precision Overheat Protection Thermistor , PTC Electronic Component

High Precision Overheat Protection Thermistor , PTC Electronic Component

  • High Precision Overheat Protection Thermistor , PTC Electronic Component
High Precision Overheat Protection Thermistor , PTC Electronic Component
Product Details:
Place of Origin: China
Brand Name: HWA
Certification: RoHS
Model Number: PR6
Payment & Shipping Terms:
Minimum Order Quantity: 10,000pcs
Packaging Details: CTN package, according to customer’s requirement if necessary
Delivery Time: 10 to 15 days
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs
Contact Now
Detailed Product Description
Type: Fixed Resistor Protection Temperature: 30℃~150℃
Max. Current: 100mA Origin Of Place: China
Encapsulation Type: Lead Technology: Ceramic Composition
Color: Green Function: Thermal Protection
Max. Voltage: 30V Switch Temperature: 40℃~110℃
High Light:

fixed value resistor

,

PTC resistor

High Precision Overheat Protection Thermistor , PTC Electronic Component





Part no. Selection:



part no. max. voltage (V) switch temp. ( ℃) protection temp. ( ℃) R25 ℃ ( Ω ) max Rs-15 ℃ ( Ω) Rs ( Ω) max current(mA)
H6PR101R60 30 40 60 100 330 470 100
H6PR101R70 30 50 70 100 330 470 100
H6PR101R80 30 60 80 100 330 470 100
H6PR101R90 30 70 90 100 330 470 100
H6PR101R100 30 80 100 100 330 470 100
H6PR101R110 30 90 110 100 330 470 100
H6PR101R120 30 100 120 100 330 470 100
H6PR101R130 30 110 130 100 330 470 100
H6PR331R60 30 40 60 330 1500 2200 100
H6PR331R70 30 50 70 330 1500 2200 100
H6PR331R80 30 60 80 330 1500 2200 100
H6PR331R90 30 70 90 330 1500 2200 100
H6PR331R100 30 80 100 330 1500 2200 100
H6PR331R110 30 90 110 330 1500 2200 100



Dimensions:



type one: the first surface mount



High Precision Overheat Protection Thermistor , PTC Electronic Component 0



type two: the second surface mount



High Precision Overheat Protection Thermistor , PTC Electronic Component 1



type three: lead type



High Precision Overheat Protection Thermistor , PTC Electronic Component 2



above dimensions are our conventinal dimensions, we can also OEM for customers.



Usages:



switching power supply

electro-thermal oven

automatic lathe

transformers

LED control panel



Typical application circuit: overheat protection circuit and overheat sensing heat.





Description and features:



  • PTC thermistor for overheat protection is a million-time device of automatic protection;
  • Recoverability, can be used repeatedly;
  • No trigger, noice or sparks;
  • Electrode material: silver;
  • Welding material: tin-silver alloy;
  • Two shapes for your reference, lead type and surface mount type;
  • Lead material: tinned copper wire;
  • Encapsulation material: green, silicone, flammability 94V-0.







Competitive Advantage:



1, Wide range protection temperature: 30~150°C

2, Small size and convenient installment

3, No requirement for reseting after over-heat protection

4, Pretty short action time

5, We can offer equivalent PTC thermistor of Thinking & TDK

6, Long life working time.

7, Good stability






RoHS approved high precision electronic components Overheat Protection Thermistor for transformer



High Precision Overheat Protection Thermistor , PTC Electronic Component 3
