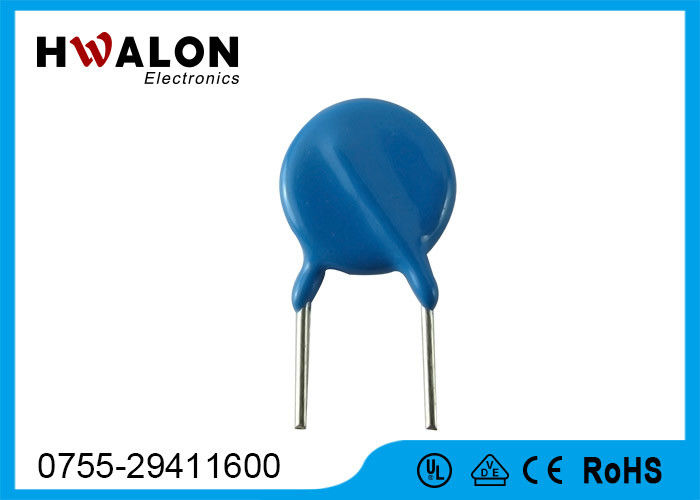

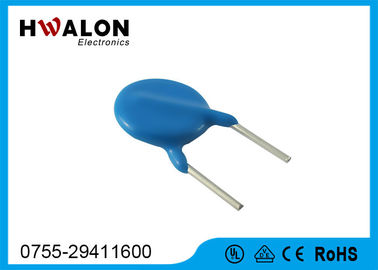

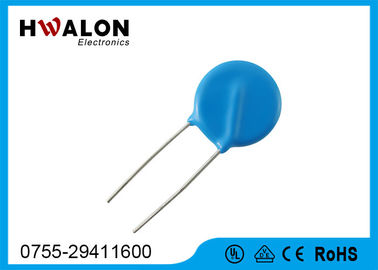

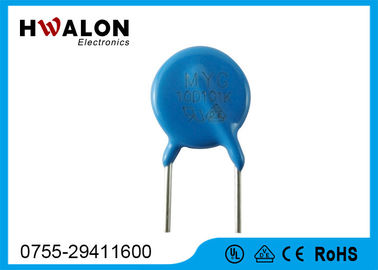

20D271K 270V Metal Zinc Metal Oxide Varistor Ceramic Material 5ohm Resistance

20D271K 270V Metal Zinc Metal Oxide Varistor Ceramic Material 5ohm Resistance

    • 20D271K 270V Metal Zinc Metal Oxide Varistor Ceramic Material 5ohm Resistance
    • 20D271K 270V Metal Zinc Metal Oxide Varistor Ceramic Material 5ohm Resistance
    • 20D271K 270V Metal Zinc Metal Oxide Varistor Ceramic Material 5ohm Resistance
    • 20D271K 270V Metal Zinc Metal Oxide Varistor Ceramic Material 5ohm Resistance
    • 20D271K 270V Metal Zinc Metal Oxide Varistor Ceramic Material 5ohm Resistance
  • 20D271K 270V Metal Zinc Metal Oxide Varistor Ceramic Material 5ohm Resistance

    Product Details:

    Place of Origin: China
    Brand Name: Hwalon
    Certification: CE, SGS, RoHS
    Model Number: Varistor

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: Negotiable
    Packaging Details: Carton
    Delivery Time: 7~15 days
    Payment Terms: Western Union, T/T, Paypal
    Supply Ability: 600000 pcs per month
    Contact Now
    Detailed Product Description
    Resistance: 5 Ohm Voltage: 680v
    Color: Blue Material: Ceramic



    20D271k 270V Metal Zinc Metal Oxide Varistor Pice





    Detailed product description



    Quick Details:



    1. Radial leaded type
    2. Many size choice : 7mm, 10mm, 14mm, 20mm, 25mm and 32mm
    3. VM(AC)RMS voltage range from 130V to 1000V

    4. Energy absorption capability up to 360J
    5. UL ,VDE ,CSA Certification





    1. High surge current ratings up to 8 kA

    2. Wide operating voltage range 11 ~ 1100 V rms

    3. No derating up to 85 degree ambient temperature

    4. PSpice models

    5. For S14 / S20 types duty cycle @ 6kV / 3kA = > 10 pulses, according to IEC 60950 - 1, Annex Q; IEC 61051 - 2



    Description:



    Varistors provide reliable and economical protection against high voltage transients and surges which may be produced, for example, by lighting, switching or electrical noise on AC or DC power lines. They have the advantage over teansient suppressor diodes in as much as they can absorb much higher transient energies and can suppress positive and negative transients. When a transient occurs, the varistor resistance changes from a very high stand-by value to a very low conducting value . The transient is thus absorbed and clamped to a safe level, protecting sensitive circuit components Varistors are manufacturerd from a non-homogeneous material, giving a rectifying action at the contact points of two particals. Many series and parallel connections determine the voltage rating and the current capability of the varistor.





    Specification:



    Item   Parameters
     Model NO.  CVR-05D681K
     Size  5mm
    Voltage  680v
    Epoxy Color  blue
     Lead Type  Straight



    All the above parameters is customized to meet customers' requirements.



    If the parameters you need is special and Not standard,No worries.Just please feel free to inform us. We will customize the parameters for you to meet your requirements.



    05D Series Varistor



    20D271K 270V Metal Zinc Metal Oxide Varistor Ceramic Material 5ohm Resistance

    20D271K 270V Metal Zinc Metal Oxide Varistor Ceramic Material 5ohm Resistance

    20D271K 270V Metal Zinc Metal Oxide Varistor Ceramic Material 5ohm Resistance



    How to Order:



    1. Diameter

    2. Voltage

    3. Lead type



    Please provide us these parameters to help you get the exect model.



    Our Advantages:



    1. Different kinds of specification, including 5D 10D 14D 20D 25D Varistor.

    2. Factory supply directly.

    3. OEM&ODM service.

    4. High quality and competitive price.

    5. Best after-sales services
