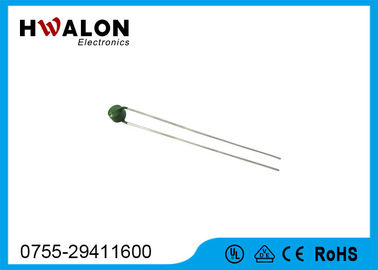

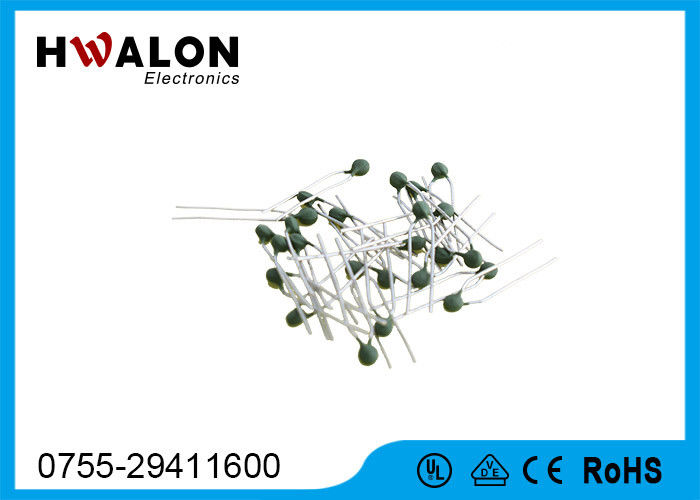

Stable Performance Overheat Protection Thermistor For Switching Power Supply

Stable Performance Overheat Protection Thermistor For Switching Power Supply

    • Stable Performance Overheat Protection Thermistor For Switching Power Supply
    • Stable Performance Overheat Protection Thermistor For Switching Power Supply
  • Stable Performance Overheat Protection Thermistor For Switching Power Supply

    Product Details:

    Place of Origin: China
    Brand Name: HWA
    Certification: RoHS
    Model Number: PR6

    Payment & Shipping Terms:

    Minimum Order Quantity: 10,000pcs
    Packaging Details: CTN package, according to customer’s requirement if necessary
    Delivery Time: 10 to 15 days
    Payment Terms: T/T, Western Union
    Supply Ability: 1,000,000pcs
    Contact Now
    Detailed Product Description
    Function: Thermal Protection Max. Voltage: 30V
    Switch Temperature: 40℃~110℃ Protection Temperature: 30℃~150℃
    Max. Current: 100mA Color: Green
    Technology: Ceramic Composition Type: Fixed Resistor

    Stable Performance Overheat Protection Thermistor For Switching Power Supply





    Description and features:



    • PTC thermistor for overheat protection is a million-time device of automatic protection;
    • Recoverability, can be used repeatedly;
    • Welding material: tin-silver alloy;
    • No trigger, noice or sparks;
    • Lead material: tinned copper wire;
    • Encapsulation material: silicon resin
    • Two shapes: lead type and surface mount type;
    • Electrode material: silver;
    • Encapsulation material: green, silicone, flammability 94V-0.







    Competitive Advantage:





    1, We can offer equivalent PTC thermistor of Thinking & TDK

    2, No requirement for reseting after over-heat protection

    3, Long life working time

    4, Good stability

    5, Quick action

    6, Wide range protection temperature: 30~150°C

    7, Convenient installment and small size





    Application:



    application
    LED control panel LED lighting switching power supply automatic lathe transformers electro-thermal oven







    Typical application circuit: overheat protection circuit and overheat sensing heat.



    Part no. for your reference:



    part no. max. voltage (V) switch temp. ( ℃) protection temp. ( ℃) R25 ℃ ( Ω ) max Rs-15 ℃ ( Ω) Rs ( Ω) max current(mA)
    H6PR101R60 30 40 60 100 330 470 100
    H6PR101R70 30 50 70 100 330 470 100
    H6PR101R80 30 60 80 100 330 470 100
    H6PR101R90 30 70 90 100 330 470 100
    H6PR101R100 30 80 100 100 330 470 100
    H6PR101R110 30 90 110 100 330 470 100
    H6PR101R120 30 100 120 100 330 470 100
    H6PR101R130 30 110 130 100 330 470 100
    H6PR331R60 30 40 60 330 1500 2200 100
    H6PR331R70 30 50 70 330 1500 2200 100
    H6PR331R80 30 60 80 330 1500 2200 100
    H6PR331R90 30 70 90 330 1500 2200 100
    H6PR331R100 30 80 100 330 1500 2200 100
    H6PR331R110 30 90 110 330 1500 2200 100





    Dimensions:



    one: the first surface mount

    ∮8.5(±0.5)*6.5(max.)



    Stable Performance Overheat Protection Thermistor For Switching Power Supply



    two: the second surface mount

    ∮7.8(±0.3)*4(±0.3)



    Stable Performance Overheat Protection Thermistor For Switching Power Supply



    three: lead type

    ∮4.5(max.)*3.5(max.)



    Stable Performance Overheat Protection Thermistor For Switching Power Supply



    We can OEM for customers except above dimensions.





    PTC thermal protection stable performance Overheat Protection Thermistor for LED lighting



    Stable Performance Overheat Protection Thermistor For Switching Power Supply
