|Packing Type:||Bulk Pack & Reel Pack||Item Color:||Green|
|Max. Operating Voltage:||20V~265V||Restore Time:||60s|
|Rated Voltage:||12V~220V||Technology:||Ceramic Composition|
|Operating Temp. Range:||-25℃~125℃||Place Of Origin:||Guangdong|
inrush current limiting thermistor,
NTC inrush current limiter,
Ceramic Composition Inrush Current Limiter

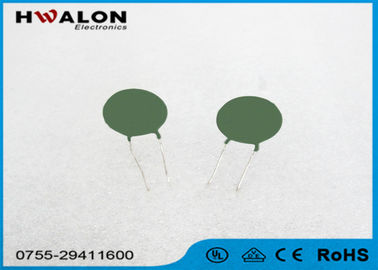

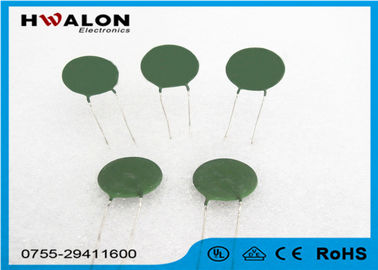

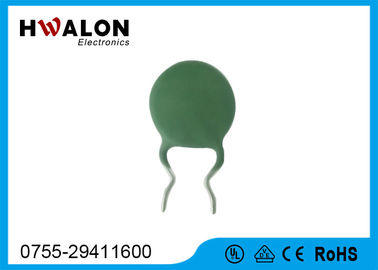

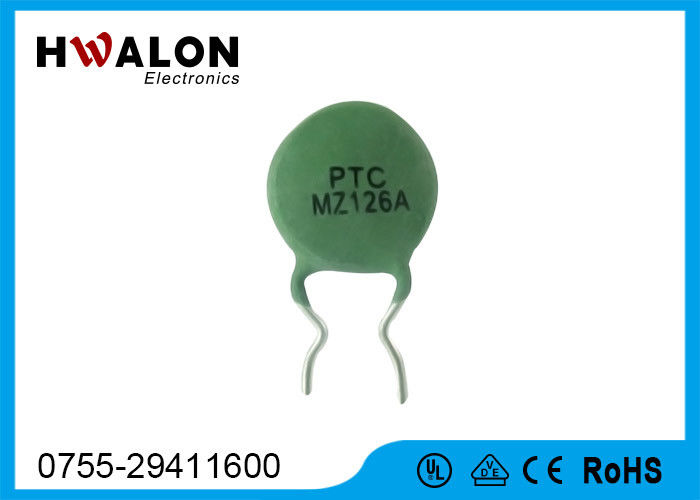

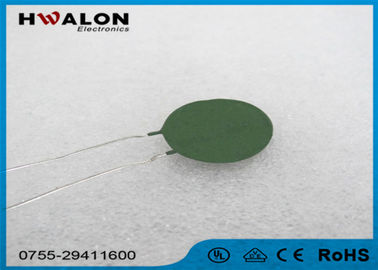

High Stability PR2 PTC Inrush Current Limiter Thermistor Epoxy Sealed Energy Efficient
1. PTC thermistor for overcurrent and overload protection is a million-time device of automatic protection, recoverability, using repeatedly, and no trigger, noice or sparks.
2. When PTC is in the normal state, the resistance is too low to affect the regular work of the protected circuit such as the voltage transformer's primary and secondary loops.
3. When the circuit is in disorder, the PTC will generate heat suddenly, and the resistance value will go up to the high state, which make the circuit in the state of relatively "reaking up" to protect the circuit.
1. high price and quality ratio. cost effective.
2. We are manufacturer and possess strong strength; 15 years experience in this field.
3. We can supply you directly, save the agent fees and reduce your cost;
4. Big order comes with big discount, trial orders are also welcome;
5. Reply your enquiry within 24 hours;
6. Do our utmost to meet your demands, such as products information, sample, packing , price, shipping etc.
7. Deliver professional advice for you to buy a satisfactory product at a competitive price to meet your requirements as we can.
1. Surges due to lighting strikes on or near to the line plant.
2. Short-term induction of alternating voltage from adjacent power lines or railway systems, usually when these lines or systems occur fault.
3. Direct contact between telephone lines and power lines.
Switching power supply
Air-conditioner and other household appliances
Adapter & Transformer
LED control panel
overcurrent protection of terminals
|No.||Part no.||Vmax (v)||non-trip current (mA) @25 ℃||non-trip current (mA) @60 ℃||trip current (mA) @25℃||resistance( Ω ) ±25%||Imax (A)||switch temp.||D(max)||T(max)||d|
|1||H2PR151RH03LB265||265||22||15||45||150||0.2||80 ℃ ±7℃||4.5||5.0||0.5|
|2||H2PR101RH03LB250||250||25||18||55||100||0.2||80 ℃±7 ℃||4.5||5.0||0.5|
|3||H2PR70RH05LB250||250||50||30||100||70||0.3||80 ℃±7 ℃||6.5||5.0||0.5|
|4||H2PR121RH05LB265||265||30||20||60||120||0.3||80 ℃±7 ℃||6.5||5.0||0.5|
|5||H2PR101RH07LB265||265||50||30||100||100||0.6||80 ℃±7 ℃||8.0||5.0||0.6|
|6||H2PR12RH08LB250||265||120||70||220||12||0.8||80 ℃±7 ℃||9.0||5.0||0.6|
|7||H2PR25RH08LB265||265||85||50||170||25||0.8||80 ℃±7 ℃||9.0||5.0||0.6|
|8||H2PR35RH08LB265||265||80||50||150||35||0.8||80 ℃±7 ℃||9.0||5.0||0.6|
|9||H2PR50Rh08LB265||265||60||40||120||50||1.0||80 ℃±7 ℃||9.0||5.0||0.6|
|10||H2PR70RH03HE250||250||45||35||90||70||0.1||100 ℃±7 ℃||4.5||5.0||0.5|
|11||H2PR101RH03HE250||250||40||30||80||100||0.2||100 ℃±7 ℃||4.5||5.0||0.5|
High Stability Inrush Current Limiter Thermistor Epoxy Sealed PTC Thermistor
