| Area 3, block B, huafeng huayuan science&technology innovation park, bao'an district, shenzhen, guangdong, china | market@hwalon.com |
 |
| Place of Origin: | CHINA |
| Brand Name: | Hwalon |
| Certification: | CE, RoHS,SGS |
| Model Number: | MF72 NTC Thermistor |
| Minimum Order Quantity: | 6000pcs |
|---|---|
| Price: | By negotiation |
| Packaging Details: | 500pcs/bag |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 100,000,000pcs/month |
| Color: | Green Or Black | Diameter: | 5mm,7mm,9mm,11mm,10mm,13mm,15mm, 20,mm,25mm, 30mm |
|---|---|---|---|
| Lead Type: | Straight Or Crimped | Key Word: | Power Ntc Thermistors |
| High Light: | Inrush Current Limiting Ntc Thermistors,Household Appliances Ntc Thermistors,Inrush Current Limiter Thermistor 10d-13 |
||

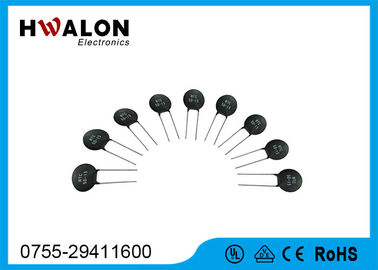

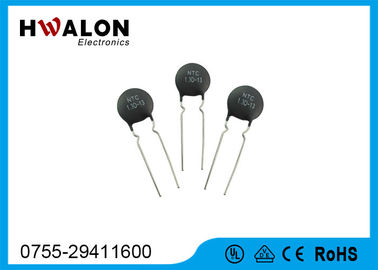

Power Ntc Thermistors For Inrush Current Limiting 5d -13 in household appliances
Introduction:
NTC power thermistor is a device for suppressing inrush current to an electric circuit. While its resistance remains negligible low during continuous operation.
Power NTC thermistor limits surge current by functioning as a power resistor which drops from a high cold resistance to a low hot resistance when heated by the current flowing through it.
Features:
1. Small dimension, powerful, strong in inrush current limiting.
2. Fast feedback.
3. Large material constant, lower residue resistance.
4. Long life, high reliability.
5. Complete part, wide operation range.
6. Operating temperature -55~+200
Application:
1. Electronic ballast,display
2. Conversion power supply, switch power
3. Kinds of electric heater, electronic energy-saving lamps,
4. Filament protection of all kinds of RT, bulb and other lighting lamps
Parameters:
| P/N | R25(Ω) | R tolerance | Imax(A) | IB(A) | RS(Ω) | δ(Mw/℃) | τ(Sec) |
| 5D | |||||||
| 5D-5 | 5 | ±20% | 1 | 2 | 0.353 | 6 | 20 |
| 10D-5 | 10 | ±20% | 0.7 | 1.4 | 0.771 | 6 | 20 |
| 15D-5 | 15 | ±20% | 0.6 | 1.2 | 0.9 | 6 | 20 |
| 22D-5 | 22 | ±20% | 0.6 | 1.2 | 0.9 | 6 | 20 |
| 33D-5 | 33 | ±20% | 0.5 | 1 | 1.2 | 6 | 20 |
| 47D-5 | 47 | ±20% | 0.4 | 0.8 | 1.5 | 6 | 20 |
| 68D-5 | 58 | ±20% | 0.4 | 0.8 | 2.1 | 6 | 20 |
| 200D-5 | 200 | ±20% | 0.1 | 0.2 | 6.259 | 6 | 20 |
| 9D | |||||||
| 3D-9 | 3 | ±20% | 4 | 8 | 0.12 | 11 | 35 |
| 4D-9 | 4 | ±20% | 3 | 6 | 0.19 | 11 | 35 |
| 5D-9 | 5 | ±20% | 3 | 6 | 0.21 | 11 | 34 |
| 6D-9 | 6 | ±20% | 2 | 4 | 0.315 | 11 | 34 |
| 8D-9 | 8 | ±20% | 2 | 4 | 0.4 | 11 | 32 |
| 10D-9 | 10 | ±20% | 2 | 4 | 0.458 | 11 | 32 |
| 12D-9 | 1 | ±20% | 1 | 2 | 0.652 | 11 | 31 |
| 16D-9 | 16 | ±20% | 1 | 2 | 0.802 | 11 | 30 |
| 20D-9 | 20 | ±20% | 1 | 2 | 0.864 | 11 | 30 |
| 22D-9 | 22 | ±20% | 1 | 2 | 0.95 | 11 | 30 |
| 30D-9 | 30 | ±20% | 1 | 2 | 1.022 | 11 | 30 |
| 33D-9 | 33 | ±20% | 1 | 2 | 1.124 | 11 | 30 |
| 50D-9 | 50 | ±20% | 1 | 2 | 1.252 | 11 | 30 |
| 60D-9 | 60 | ±20% | 0.8 | 1.6 | 1.502 | 11 | 30 |
| 80D-9 | 80 | ±20% | 0.8 | 1.6 | 2.01 | 11 | 30 |
| 120D-9 | 120 | ±20% | 0.8 | 1.6 | 3.015 | 11 | 30 |
| 200D-9 | 200 | ±20% | 0.5 | 1 | 5.007 | 11 | 32 |
| 400D-9 | 400 | ±20% | 0.2 | 0.4 | 9.852 | 11 | 32 |
| 11D | |||||||
| 2.5D-11 | 2.5 | ±20% | 5 | 10 | 0.095 | 13 | 43 |
| 3D-11 | 3 | ±20% | 5 | 10 | 0.1 | 13 | 43 |
| 4D-11 | 4 | ±20% | 4 | 8 | 0.15 | 13 | 44 |
| 5D-11 | 5 | ±20% | 4 | 8 | 0.156 | 13 | 45 |
| 6D-11 | 6 | ±20% | 3 | 6 | 0.24 | 13 | 45 |
| 8D-11 | 8 | ±20% | 3 | 6 | 0.255 | 14 | 47 |
| 10D-11 | 10 | ±20% | 3 | 6 | 0.275 | 14 | 47 |
| 12D-11 | 12 | ±20% | 2 | 4 | 0.462 | 14 | 48 |
| 16D-11 | 16 | ±20% | 2 | 4 | 0.47 | 14 | 50 |
| 20D-11 | 20 | ±20% | 2 | 4 | 0.512 | 15 | 52 |
| 22D-11 | 22 | ±20% | 2 | 4 | 0.563 | 15 | 52 |
| 30D-11 | 30 | ±20% | 1.5 | 3 | 0.667 | 15 | 2 |
| 33D-11 | 33 | ±20% | 1.5 | 3 | 0.734 | 15 | 52 |
| 50D-11 | 50 | ±20% | 1.5 | 3 | 1.021 | 15 | 52 |
| 60D-11 | 60 | ±20% | 1.5 | 3 | 1.212 | 15 | 52 |
| 80D-11 | 80 | ±20% | 1.2 | 2.4 | 1.656 | 15 | 52 |
| 13D | |||||||
| 1.3D-13 | 1.3 | ±20% | 7 | 14 | 0.062 | 13 | 60 |
| 1.5D-13 | 1.5 | ±20% | 7 | 14 | 0.073 | 13 | 60 |
| 2.5D-13 | 2.5 | ±20% | 6 | 12 | 0.088 | 13 | 60 |
| 3D-13 | 3 | ±20% | 6 | 12 | 0.092 | 14 | 60 |
| 4D-13 | 4 | ±20% | 5 | 10 | 0.12 | 15 | 67 |
| 5D-13 | 5 | ±20% | 5 | 10 | 0.125 | 15 | 68 |
| 6D-13 | 6 | ±20% | 4 | 8 | 0.17 | 15 | 65 |
| 7D-13 | 7 | ±20% | 4 | 8 | 0.188 | 15 | 65 |
| 8D-13 | 8 | ±20% | 4 | 8 | 0.194 | 15 | 60 |
| 10D-13 | 10 | ±20% | 4 | 8 | 0.206 | 15 | 62 |
| 12D-13 | 12 | ±20% | 3 | 6 | 0.316 | 16 | 62 |
| 15D-13 | 15 | ±20% | 3 | 6 | 0.335 | 16 | 60 |
| 16D-13 | 16 | ±20% | 3 | 6 | 0.338 | 16 | 60 |
| 20D-13 | 20 | ±20% | 3 | 6 | 0.372 | 16 | 65 |
| 30D-13 | 30 | ±20% | 2.5 | 5 | 0.517 | 16 | 65 |
| 47D-13 | 47 | ±20% | 2 | 4 | 0.81 | 17 | 65 |
| 120D-13 | 120 | ±20% | 1.5 | 3 | 2.124 | 16 | 65 |
| 15D | |||||||
| 1.5D-15 | 1.3 | ±20% | 8 | 16 | 0.048 | 18 | 68 |
| 1.5D-15 | 1.5 | ±20% | 8 | 16 | 0.052 | 19 | 69 |
| 3D-15 | 3 | ±20% | 7 | 14 | 0.075 | 18 | 76 |
| 5D-15 | 5 | ±20% | 6 | 12 | 0.112 | 20 | 76 |
| 6D-15 | 6 | ±20% | 5 | 10 | 0.155 | 20 | 80 |
| 7D-15 | 7 | ±20% | 5 | 10 | 0.173 | 20 | 80 |
| 8D-15 | 8 | ±20% | 5 | 10 | 0.178 | 20 | 80 |
| 10D-15 | 10 | ±20% | 5 | 10 | 0.18 | 20 | 75 |
| 12D-15 | 12 | ±20% | 4 | 8 | 0.25 | 20 | 75 |
| 15D-15 | 15 | ±20% | 4 | 8 | 0.268 | 21 | 85 |
| 16D-15 | 16 | ±20% | 4 | 8 | 0.276 | 21 | 70 |
| 20D-15 | 20 | ±20% | 4 | 8 | 0.288 | 17 | 86 |
| 30D-15 | 30 | ±20% | 3.5 | 7 | 0.438 | 18 | 75 |
| 47D-15 | 47 | ±20% | 3 | 6 | 0.68 | 21 | 86 |
| 120D-15 | 120 | ±20% | 2.5 | 5 | 1.652 | 22 | 87 |
| 20D | |||||||
| 0.7D-20 | 0.7 | ±20% | 12 | 24 | 0.018 | 25 | 89 |
| 1.3D-20 | 1.3 | ±20% | 9 | 18 | 0.037 | 24 | 88 |
| 3D-20 | 3 | ±20% | 8 | 16 | 0.055 | 24 | 88 |

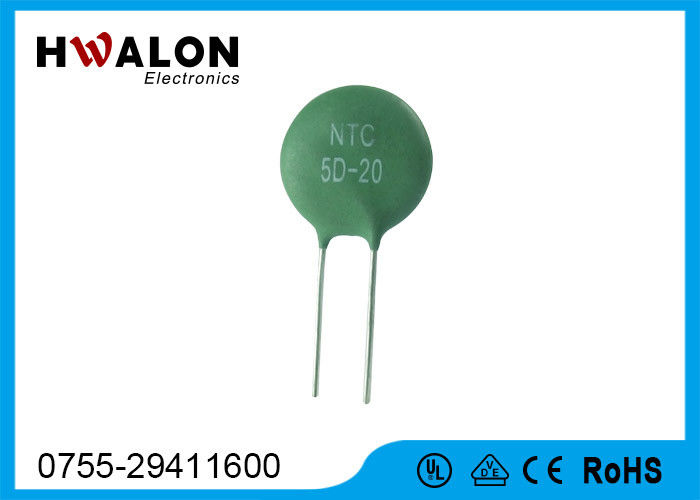

| 5D-20 | 5 | ±20% | 7 | 14 | 0.087 | 23 | 87 |
| 6D-20 | 6 | ±20% | 6 | 12 | 0.113 | 25 | 103 |
| 8D-20 | 8 | ±20% | 6 | 12 | 0.142 | 25 | 105 |

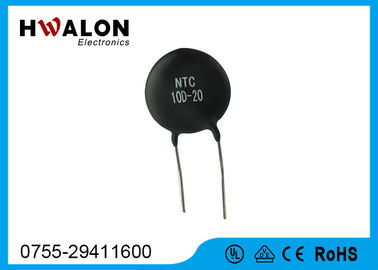

| 10D-20 | 10 | ±20% | 6 | 12 | 0.162 | 24 | 102 |
| 12D-20 | 12 | ±20% | 5 | 10 | 0.195 | 24 | 100 |
| 16D-20 | 16 | ±20% | 5 | 10 | 0.212 | 25 | 100 |
Advantages:
1. Compele series of MF72 power ntc thermistor are supplied
2. Free samples can be sent by request
3. Can be arranged for shipment within 7 days
4. Quick response time
