MOQ:	1000pcs
Price:	by negotiation
Standard Packaging:	100pcs/carton
Delivery Period:	7-10 working days
Payment Method:	T/T, Western Union
Supply Capacity:	100,000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Hwalon

Certification

CE UL

Model Number

PR4

Power:

800-2500W

Rated Voltage:

50-270v

Resistance:

8-3500ohm

Application:

Home Applicance

Heat Sink:

Aluminum Welding Sink

Size:

Custom-made

Highlight:

PTC electric heater

electric PTC heater

1500W 220V Electrical PTC Air Heater

Product Description

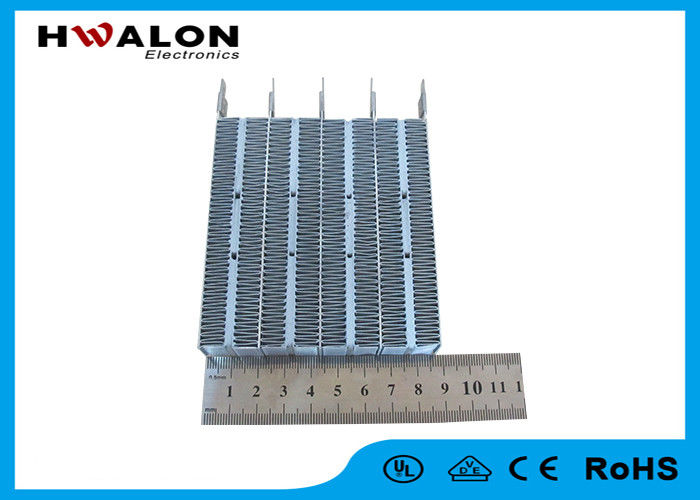

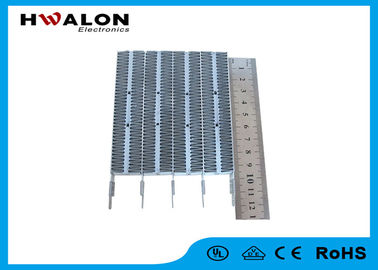

Chinese Manufacturer 1500W 220V Electrical PTC Heaters for fan heater

Features:

1. It is safe.

2. It has high power.

3. It has high reliability.

4. It is automatic temperature control

5. It doesn't turn to red or get fire when it is working.

6. It uses wide range of ambient temperature.

7. It can be manufactured to have different fixed temperatures at which the dramatic resistance change take place...

8. Even with the regard to voltage changes, the constant temperature mechanism will be effective.

9. It can be an effective low cost solution.

10. It has a virtually unlimited service life, and do not generate RFI noise.

11. Dynamic heating output and self-regulating function in correlation to the ambient temperature.

Specifications:

Sheath Material: Aluminium

Power: customized( (800W-2500W)

Power tolerance: -5%-0%

Voltage: customized

Resistance wire: ceramic

Size&Diamension: Customized

Leakage current is less than 0.5mA

Hi-pot (AC)test:3750V AC/2 seconds

Finsish type:the heating element only or the assembly of heating element,

plastic rack,lead wire,temperature controller and fuse protector.

Application:

· heating board

· Air-heating, wind-warming equipment, air-conditioner

· Physical treatment, massage apparatus, biology heating

· mosquito-driving apparatus

· water-boiling equipment

· shoe-drying apparatus

· hair curler, hair straightner

Specifications:

no.	part No.	resistance	surf. temp.	max voltage	length	width	thickness
1	H4PR140RA16K100	7-20	100	20	16	11	2
2	H4PR102RA19K100	600-1500	100	270	16	11	2.5
3	H4PR142RA19K230	800-2000	230	270	19	12	2.2
4	H4PR102RA20K110	500-1500	110	270	23.5	10	2.2

Dimentions:

· 5×4mm~35×20mm

· Shapes: square, round, ring

· As shown in detailed pictures

· Customized

Typical Application:

1	Ceramic heater fan, hair dryer, hand dryer, clothes dryer, dish dryer
2	Coffee makers, steam irons, cooking devices, facial sauna, humidifier
3	Physical treatment, massage apparatus, biology heating
4	Mosquito repellent, liquid warmer, control devices

1500W 220V Electrical PTC Air Heaters Aluminum Welding Sink 8 - 3500ohm Resistance 0
