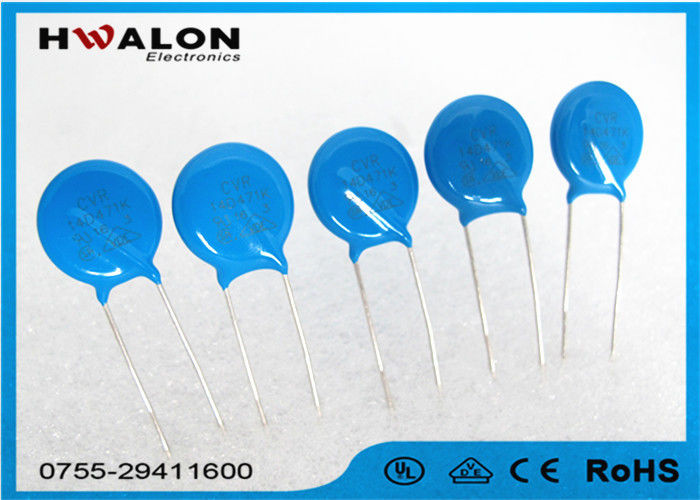

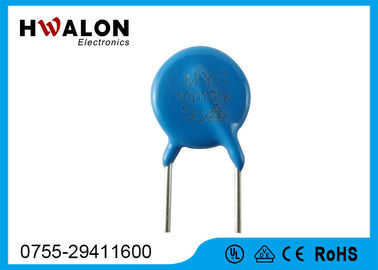

Testing Metal Oxide Varistor Testing MOV For Transient Voltage Surge Suppressor

Testing Metal Oxide Varistor Testing MOV For Transient Voltage Surge Suppressor

    • Testing Metal Oxide Varistor Testing MOV For Transient Voltage Surge Suppressor
    • Testing Metal Oxide Varistor Testing MOV For Transient Voltage Surge Suppressor
  • Testing Metal Oxide Varistor Testing MOV For Transient Voltage Surge Suppressor

    Product Details:

    Place of Origin: CHINA
    Brand Name: MOV
    Certification: UL,VDE,CSA
    Model Number: 10D431K

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000pcs
    Packaging Details: 250pcs/bag
    Supply Ability: 100,000,000pcs/month
    Contact Now
    Detailed Product Description
    Brand: MOV Or ZOV Operating Temp.: -40~85 Degree
    Material: Zinic Oxide Certification: UL,VDE,CSA
    Response Time: Less 50ns Pin Type: Radial

    Testing Metal Oxide Varistor Testing MOV For Transient Voltage Surge Suppressor


    Metal oxide varistor is the core of the arrester,which main component is Zinc Oxide and with a small quantity of bismuth oxide, fluoride oxide, manganous carbonate, antimony oxide and other gleam of additive and made with high temperature.




    Description of Metal Oxide Varistor 10mm series:



    5D:



    P/N AC Voltage DC Voltage Varistor Voltage UL
    5D180L 11 14 18(15-21)
    5D220K 14 18 22(20-24)
    5D270K 17 22 27(24-30)
    5D330K 20 26 33(30-36)
    5D390K 25 31 39(35-43)
    5D470K 30 38 47(42-52)
    5D560K 35 45 56(50-62)
    5D680K 40 56 68(61-75)
    5D820K 50 65 82(74-90)
    5D101K 60 85 100(90-110)
    5D121K 75 100 120(108-132)
    5D151K 95 125 150(135-165)
    5D181K 115 150 180(162-198)
    5D201K 130 170 200(185-225)
    5D221K 140 180 220(198-242)
    5D241K 150 200 240(216-264)
    5D271K 175 225 270(243-297)
    5D301K 190 250 300(270-330)
    5D331K 210 275 330(297-363)
    5D361K 230 300 360(324-396)
    5D391K 250 320 390(351-429)
    5D431K 275 350 430(387-473)
    5D471K 300 385 470(423-517)
    5D511K 320 415 510(459-561)
    5D561K 350 460 560(504-616)
    5D621K 385 505 620(558-682)
    5D681K 420 560 680(612-748)



    7D:



    P/N AC Voltage DC Voltage Varistor Voltage UL
    7D180L 11 14 18(15-21)
    7D220K 14 18 22(20-24)
    7D270K 17 22 27(24-30)
    7D330K 20 26 33(30-36)
    7D390K 25 31 39(35-43)
    7D470K 30 38 47(42-52)
    7D560K 35 45 76(70-62)
    7D680K 40 56 68(61-77)
    7D820K 50 65 82(74-90)
    7D101K 60 85 100(90-110)
    7D121K 75 100 120(108-132)
    7D151K 95 125 150(135-165)
    7D181K 115 150 180(162-198)
    7D201K 130 170 200(185-225)
    7D221K 140 180 220(198-242)
    7D241K 150 200 240(216-264)
    7D271K 175 225 270(243-297)
    7D301K 190 250 300(270-330)
    7D331K 210 275 330(297-363)
    7D361K 230 300 360(324-396)
    7D391K 250 320 390(351-429)
    7D431K 275 350 430(387-473)
    7D471K 300 385 470(423-517)
    7D511K 320 415 510(459-561)
    7D561K 350 460 560(504-616)
    7D621K 385 505 620(558-682)
    7D681K 420 560 680(612-748)




    10D:



    P/N AC Voltage DC Voltage Varistor Voltage UL
    10D180L 11 14 18(15-21)
    10D220K 14 18 22(20-24)
    10D270K 17 22 27(24-30)
    10D330K 20 26 33(30-36)
    10D390K 25 31 39(35-43)
    10D470K 30 38 47(42-52)
    10D560K 35 45 56(50-62)
    10D680K 40 56 68(61-75)
    10D820K 50 62 82(74-90)
    10D101K 60 85 100(90-110)
    10D121K 75 100 120(108-132)
    10D151K 95 125 150(135-165)
    10D181K 115 150 180(162-198)
    10D201K 130 170 200(185-225)
    10D221K 140 180 220(198-242)
    10D241K 150 200 240(216-264)
    10D271K 175 225 270(243-297)
    10D301K 190 250 300(270-330)
    10D331K 210 275 330(297-363)
    10D361K 230 300 360(324-396)
    10D391K 250 320 390(351-429)
    10D431K 275 350 430(387-473)
    10D471K 300 385 470(423-517)
    10D511K 320 415 510(459-561)
    10D561K 350 460 560(504-616)
    10D621K 385 505 620(558-682)
    10D681K 420 560 680(612-748)
    10D751K 460 615 750(675-825)
    10D781K 485 640 780(702-858)
    10D821K 510 670 820(738-902)
    10D911K 550 745 910(819-1001)
    10D102K 625 825 1000(900-1100)
    10D112K 680 895 1100(990-1210)



    14D:



    P/N AC Voltage DC Voltage Varistor Voltage UL
    14D180L 11 14 18(15-21)
    14D220K 14 18 22(20-24)
    14D270K 17 22 27(24-30)
    14D330K 20 26 33(30-36)
    14D390K 25 31 39(35-43)
    14D470K 30 38 47(42-52)
    14D560K 35 45 56(50-62)
    14D680K 40 56 68(61-75)
    14D820K 50 65 82(74-90)
    14D141K 60 85 100(90-110)
    14D121K 75 100 120(108-132)
    14D151K 95 125 150(135-165)
    14D181K 115 150 180(162-198)
    14D201K 130 170 200(185-225)
    14D121K 140 180 220(198-242)
    14D241K 150 200 240(216-264)
    14D271K 175 225 270(243-297)
    14D301K 190 250 300(270-330)
    14D331K 210 275 330(297-363)
    14D361K 230 300 360(324-396)
    14D391K 250 320 390(351-429)
    14D431K 275 350 430(387-473)
    14D471K 300 385 470(423-517)
    14D511K 320 415 510(459-561)
    14D561K 350 460 560(504-616)
    14D621K 385 505 620(558-682)
    14D681K 420 560 680(612-748)
    14D751K 460 615 750(675-825)
    14D781K 485 640 780(702-858)
    14D821K 510 670 820(738-902)
    14D911K 550 745 910(819-1001)
    14D102K 625 825 1000(900-1100)
    14D112K 680 895 1100(990-1210)
    14D122K 740 975 1200(1080-1320)
    14D182K 1000 1465 1800(1620-1980)



    20D:



    P/N AC Voltage DC Voltage Varistor Voltage UL
    20D180L 11 14 18(15-21)
    20D220K 14 18 22(20-24)
    20D270K 17 22 27(24-30)
    20D330K 20 26 33(30-36)
    20D390K 25 31 39(35-43)
    20D470K 30 38 47(42-52)
    20D560K 35 45 56(50-62)
    20D680K 40 56 68(61-75)
    20D820K 50 65 82(74-90)
    20D101K 60 85 100(90-110)
    20D121K 75 100 120(108-132)
    20D151K 95 125 150(135-165)
    20D181K 115 150 180(162-198)
    20D201K 130 170 200(185-225)
    20D221K 140 180 220(198-242)
    20D241K 150 200 240(216-264)
    20D271K 175 225 270(243-297)
    20D301K 190 250 300(270-330)
    20D331K 210 275 330(297-363)
    20D361K 230 300 360(324-396)
    20D391K 250 320 390(351-429)
    20D431K 275 350 430(387-473)
    20D471K 300 385 470(423-517)
    20D511K 320 415 510(459-561)
    20D561K 350 460 560(504-616)
    20D621K 385 505 620(558-682)
    20D681K 420 560 680(612-748)
    20D751K 460 615 750(675-825)
    20D781K 485 640 780(702-858)
    20D821K 510 670 820(738-902)
    20D911K 550 745 910(819-1001)
    20D102K 625 825 1000(900-1100)
    20D112K 680 895 1100(990-1210)
    20D122K 750 990 1200(1080-1320)
    20D182K 1000 1465 1800(1620-1980)



    25D:



    P/N AC Voltage DC Voltage Varistor Voltage UL
    25D180L 11 14 18(15-21)
    25D220K 14 18 22(20-24)
    25D270K 17 22 27(24-30)
    25D330K 20 26 33(30-36)
    25D390K 25 31 39(35-43)
    25D470K 30 38 47(42-52)
    25D560K 35 45 56(50-62)
    25D680K 40 56 68(61-75)
    25D820K 50 65 82(61-75)
    25D101K 60 85 100(90-100)
    25D121K 75 100 120(105-132)
    25D151K 95 125 150(135-165)
    25D181K 115 150 180(162-198)
    25D201K 130 170 200(185-225)
    25D221K 140 180 220(198-242)
    25D241K 150 200 240(216-264)
    25D271K 175 225 270(243-297)
    25D301K 190 250 300(270-330)
    25D331K 210 275 330(297-363)
    25D361K 230 300 360(324-396)
    25D391K 250 320 390(351-429)
    25D431K 275 350 430(387-473)
    25D471K 300 385 470(423-517)
    25D511K 320 415 510(459-561)
    25D561K 350 460 560(504-616)
    25D621K 385 505 620(558-682)
    25D681K 420 560 680(612-748)
    25D751K 460 615 750(675-825)
    25D781K 485 640 780(702-858)
    25D821K 510 670 820(738-902)
    25D911K 550 745 910(819-1001)
    25D102K 625 825 1000(900-1100)
    25D112K 680 895 1100(990-1210)
    25D122K 750 990 1200(1080-1320)
    25D142K 880 1140 1200(1200-1540)
    25D162K 1000 1280 1600(1400-1760)



    32D:



    P/N AC Voltage DC Voltage Varistor Voltage UL
    32D201K 130 170 200(185-225)
    32D241K 150 200 240(216-264)
    32D271K 175 232 270(243-297)
    32D331K 210 275 330(297-363)
    32D361K 230 300 360(324-396)
    32D391K 250 320 390(351-429)
    32D431K 275 350 430(387-473)
    32D471K 300 385 470(423-517)
    32D511K 320 415 510(459-561)
    32D621K 385 505 620(558-682)
    32D681K 420 560 680(612-748)
    32D751K 460 615 750(675-832)
    32D781K 485 640 780(702-858)
    32D821K 510 670 820(738-902)
    32D911K 550 745 910(819-1001)
    32D951K 575 765 950(855-1045)
    32D102K 632 825 1000(900-1100)
    32D112K 680 895 1100(990-1210)
    32D122K 750 990 1200(1080-1320)
    32D142K 880 1140 1400(1260-1540)
    32D162K 1000 1280 1600(1440-1760)



    Application of Metal Oxide Varistor:

    Surge Protector Device,Motor Protector,Over-voltage Protector Device and Lightning Arrester ,etc

    Competitive Advantage of Hwalon Metal Oxide Varistor :


    1.Radial leaded type
    2.Many size choose 7mm, 10mm, 14mm, 20mm , 25mm and 32mm
    3.VM(AC)RMS voltage range from 130V to 1000V
    4.Energy absorption capability up to 360J
    5.UL ,VDE ,CSA Certification

    RFQ:



      Question Answers
    1 What is the MOQ? 5000pcs.
    2 What is the payment terms? Negotiation.
    3 Can you accept special requirement? Yes,we can.We can design for your special requirement.
    4 Can you make the printing artworks(such as user manual/packing/rating label) in our language Yes,we can.We do OEM for a long time
    5 Can we order samples: Yes ,you can . Free samples are available
